|Typical Application:||Powder, Small Particle Level Control||Process Temperature:||-40~+80℃, (>+80℃ Can Be Customized)|
|Electric Shock Capacity:||250V 5A (SPDT Single Pole Double Throw )||Explosion-proof Grade:||ExiaIICT6 (see Certificate For Details)|
|Power Supply:||24VDC, 220VAC||Process Pressure:||Normal Pressure|
|Moment:||10kg·m (1N·m)||Insulation Resistance:||≥100MΩ (500VDC)|
Granules Paddle Level Switch,
Powder Rotary Paddle Switch,
304 Flange Thread Paddle Level Switch

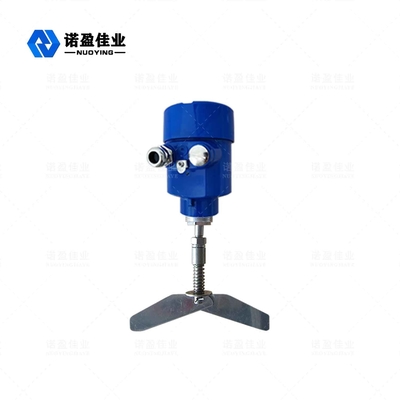

Powder Granules Rotary Paddle Level Switch 304 Flange Thread
Rotary Paddle Level Switch Working Principle
NYZX series resistance rotary material level switch uses a permanent magnet motor to drive the blade to rotate. When the detected material rises to the blade position, the blade rotation is blocked, and the resistance is transmitted to the detection device in the junction box, and the detection device outputs a switch signal to the outside, and cuts off the power to stop the blade from rotating.
Rotary Paddle Level Switch Design Feature
◎A variety of probe forms can be used in different occasions.
◎Unique oil seal design can prevent dust from infiltrating along the shaft.
◎Stable and reliable, and the torque can be adjusted.
Rotary Paddle Level Switch Technical parameter
|Power supply||24VDC, 220VAC|
|Process temperature||-40~+80℃, (>+80℃ can be customized)|
|Process pressure||Normal pressure|
|Process connection||Thread, flange (optional)|
|Electric shock capacity||250V 5A (SPDT single pole double throw )|
|Insulation resistance||≥100MΩ (500VDC)|
