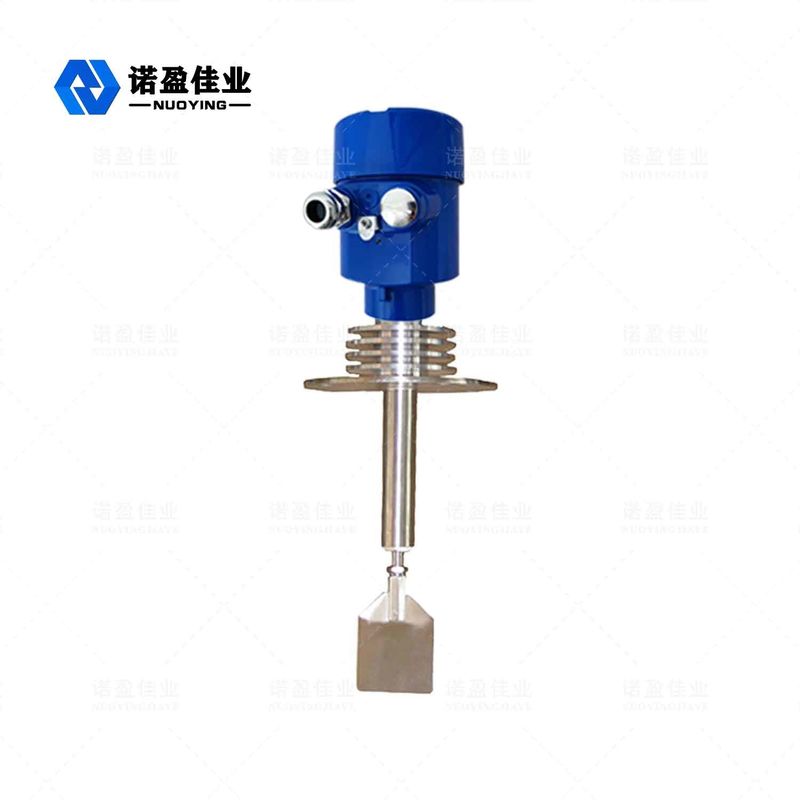

Powder Granules Rotary Paddle Level Switch Normal Pressure High Temperature Type

Powder Granules Rotary Paddle Level Switch Normal Pressure High Temperature Type

Brand Name: NUOYINGJIAYE
Model Number: NYZX
MOQ: 1 pcs
Price: Please Contact Me
Payment Terms: T/T
Supply Ability: 1000 pcs/ pre month
Detail Information
Place of Origin:
Xi'an, Shaanxi,China
Certification:
CE
Process Pressure:
Normal Pressure
Moment:
10kg·m (1N·m)
Probe Material:
304, (optional)
Power Supply:
24VDC, 220VAC
Typical Application:
Powder, Small Particle Level Control
Process Temperature:
-40~+80℃, (>+80℃ Can Be Customized)
Electric Shock Capacity:
250V 5A (SPDT Single Pole Double Throw )
Explosion-proof Grade:
ExiaIICT6 (see Certificate For Details)
Packaging Details:
Carton, 40cm×30cm×30cm
Supply Ability:
1000 pcs/ pre month
Highlight:

High Temperature Rotary Paddle Level Switch

,

Powder Granules Rotary Level Switch

,

Normal Pressure Paddle Level Switch

Product Description

High Temperature Powder Granules Rotary Paddle Level Switch





Rotary Paddle Level Switch Design Feature



◎Simple structure and convenient installation;

◎Stable and reliable, and the torque can be adjusted;

◎A variety of probe forms can be used in different occasions.



Rotary Paddle Level Switch Technical Parameter



Power supply 24VDC, 220VAC
Process temperature -40~+80℃, (>+80℃ can be customized)
Process pressure Normal pressure
Process connection Thread, flange (optional)
Electric shock capacity 250V 5A (SPDT single pole double throw )



Rotary Paddle Level Switch Discription



NYZX series resistance rotary material level switch is a field control equipment used to detect the level of solid materials (powder, granules), and is widely used in feed, food, pharmaceutical, chemical, plastic, construction, fertilizer and other industries.
