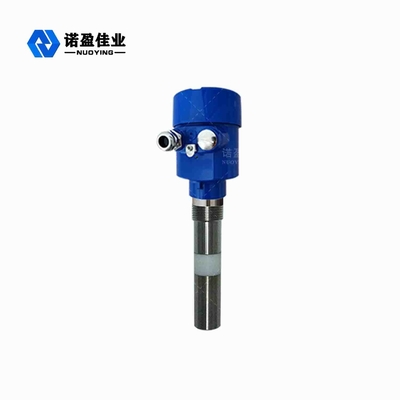

Intelligent Chemical RF Admittance Level Switch For Capacities Liquid

Intelligent Chemical RF Admittance Level Switch For Capacities Liquid
Intelligent Chemical RF Admittance Level Switch For Capacities Liquid

Large Image :  Intelligent Chemical RF Admittance Level Switch For Capacities Liquid

Product Details:
Place of Origin: Xi'an, Shaanxi,China
Brand Name: NUOYINGJIAYE
Certification: CE
Model Number: NYDR-A
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Please Contact Me
Packaging Details: Carton, 40cm×30cm×30cm
Delivery Time: 7-15 working days
Payment Terms: T/T
Supply Ability: 1000 pcs/ pre month

Intelligent Chemical RF Admittance Level Switch For Capacities Liquid

Description
Typical Application: Liquid Level Control Probe Material: 304, PTFE (optional)
Product Model: NYDR-A Process Temperature: -40~+130℃
Electric Shock Capacity: Single Point :250V 8A Process Connection: Thread, Flange (optional)
Probe Length: 200mm Process Pressure: -0.1~1.0MPa
High Light:

Capacities Liquid RF Level Switch 1.0MPa

,

Chemical RF Admittance Level Switch

,

Intelligent RF Admittance Type Level Switch

Highly Intelligent Chemical Rf Capacities Liquid Level Switch





Rf Capacities Liquid Level Switch Discription



NYDR capacities liquid level switch is a highly intelligent liquid level measurement product, which overcomes the inconvenience brought to customers by the low alarm accuracy and complex adjustment steps of the previous measurement methods. RF capacities switches are widely used in chemical industry, metallurgy, petroleum, machinery, food,food stuff and other industries.



Rf Capacities Liquid Level Switch Design Feature



◎This product adopts intelligent microprocessor components and differential measurement technology, which can measure water, sewage, mud, and other liquids, especially strong corrosive media effectively and accurately, and can dynamically compensate for environmental changes and hanging materials;

◎This product can be used in the built-in auxiliary electrode of the non-metallic tank sensor, and there is no need to add an electrode in the container;

◎The operation is very simple, you only need to adjust the corresponding sensitivity knob according to the medium, and the surge delay filter can be used;



Rf Capacities Liquid Level Switch Technical Parameter



Typical application Liquid level control
Product model NYDR
Probe material 304, PTFE (optional)
Probe length 200mm(length can be customized according to site conditions)
Power supply 24VDC, 220VAC
Process temperature -40~+130℃, -40~+260℃
Process pressure -0.1~1.0MPa
