Product Details:
|
| Transmitting Frequency: | 76GHz～81GHz, FM Scanning Frequency Width 5GHz | Antenna Material: | PTFE, 304+PTFE (optional) |
|---|---|---|---|
| Antenna Form: | Lens Antenna, Anti-corrosion Lens Antenna | Measuring Range: | 0.08～150m |
| Signal Output: | 4...20mA/HART/RS485/Modbus... | Measurement Accuracy: | 0.05%～0.1%F.S |
| Process Connection: | Thread, Flange, Sanitary Clamp (optional) | Process Pressure: | -0.1～2.0MPa |
| High Light: | Frequency Modulation Radar Level Transmitter,Anti Corrosion Radar Liquid Level Transmitter,Non Contact Radar Level Transmitter 80G |
||

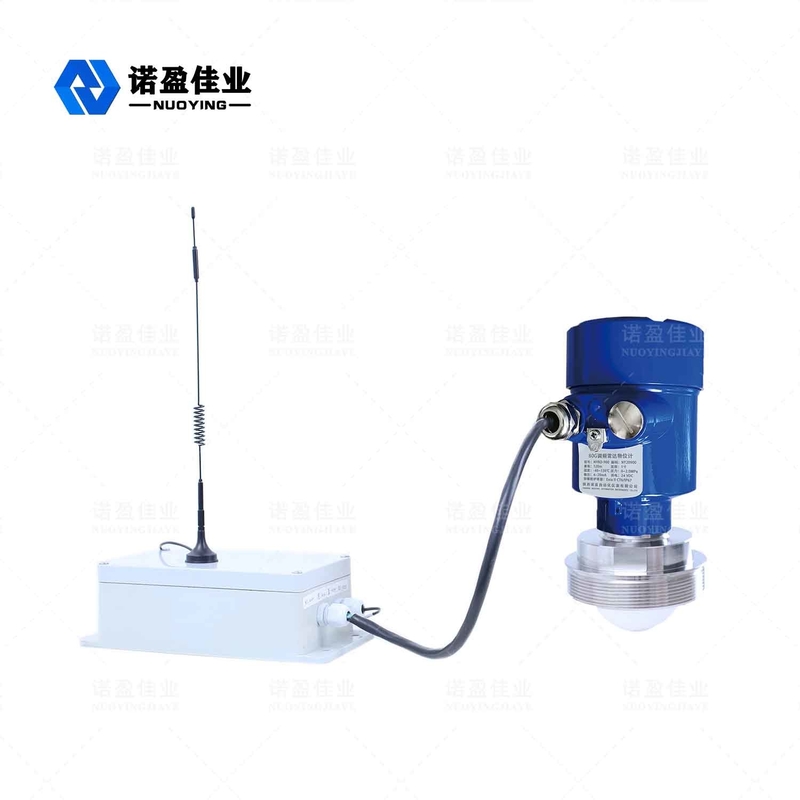

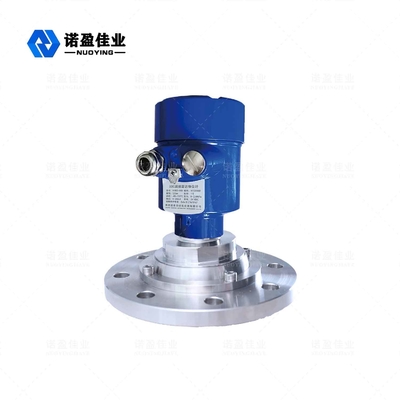

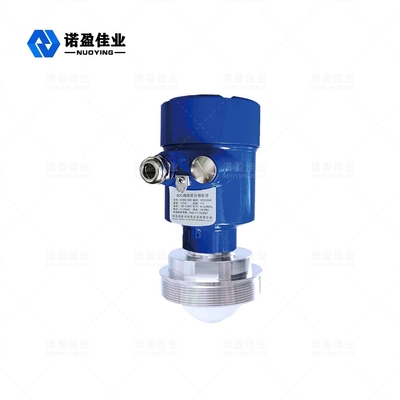

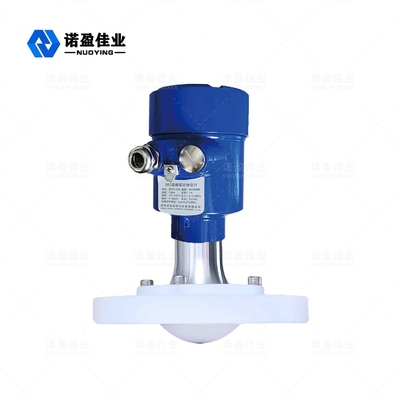

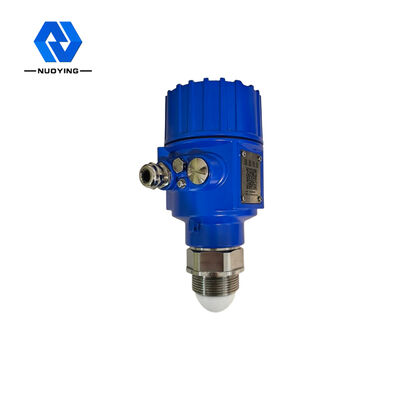

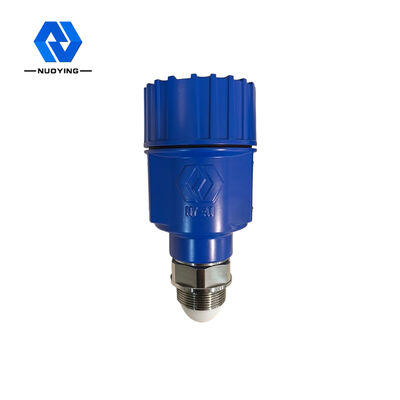

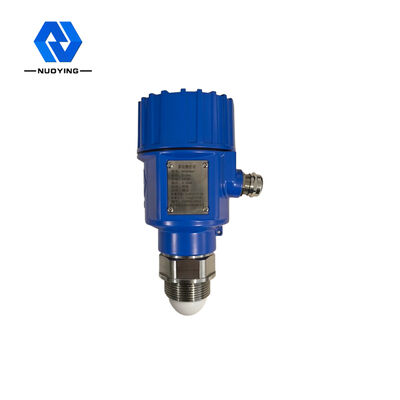

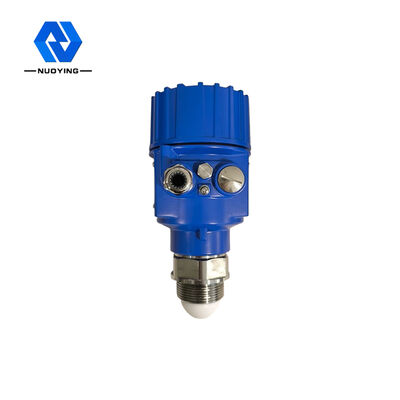

Strong Penetrability NYRD900 80G Frequency Modulation Radar Level Transmitter
NYRD900 80G Frequency Modulation Radar Level Transmitter Operating Principle
FM wave FMCW radar products (also called millimeter wave radars), because they use millimeter wave bands with a higher frequency than Ku band radars, Based on self-developed CMOS millimeter wave radio frequency chip, it realizes a tighter radio frequency architecture and a higher signal-to-noise ratio.they are important in remote target detection and strong smoke and dust environments, such as long-distance imaging and multi spectral imaging. The millimeter-wave photon energy is only a few millielectron volts, and there will be no X-ray ionization and damage to the substance to be detected, so it is not easy to damage the substance to be detected.Application, and can detect smaller targets than microwave radar and achieve more accurate positioning, with higher resolution and stronger confidentiality.
NYRD900 80G Frequency Modulation Radar Level Transmitter Technical Parameter
| Model | NYRD900 |
| Transmitting frequency | 76GHz～81GHz, FM scanning frequency width 5GHz |
| Antenna form | lens antenna, anti-corrosion lens antenna |
| Antenna material | PTFE, 304+PTFE (optional) |
| Measuring range | 0.08～150m |
| Measurement accuracy | 0.05%～0.1%F.S |
| Power supply | 24VDC, 220VAC |
| Signal output | 4...20mA/HART/RS485/Modbus... |
| Process temperature | -40～+130℃, -40～+260℃ (≥260℃ can be customized) |
| Process pressure | -0.1～2.0MPa |
| Process connection | Thread, Flange, Sanitary clamp (optional) |
| Protection level | IP67, IP68 (optional) |
| Explosion-proof grade | ExiaⅡCT6 Ga |
※ Note: Products can be customized according to the specific requirements of users!
