| Brand Name: | NUOYINGJIAYE |
| Model Number: | NYSP-UK863 (Moderate temperature type) |
| MOQ: | 1pcs |
| Price: | $250~$380/pcs |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/per month |

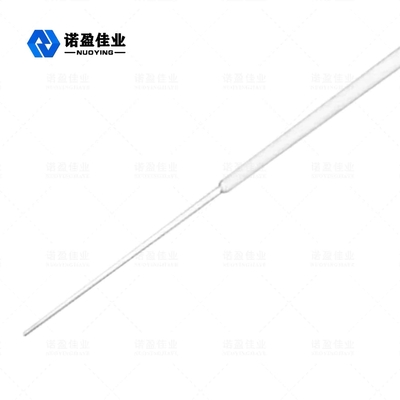

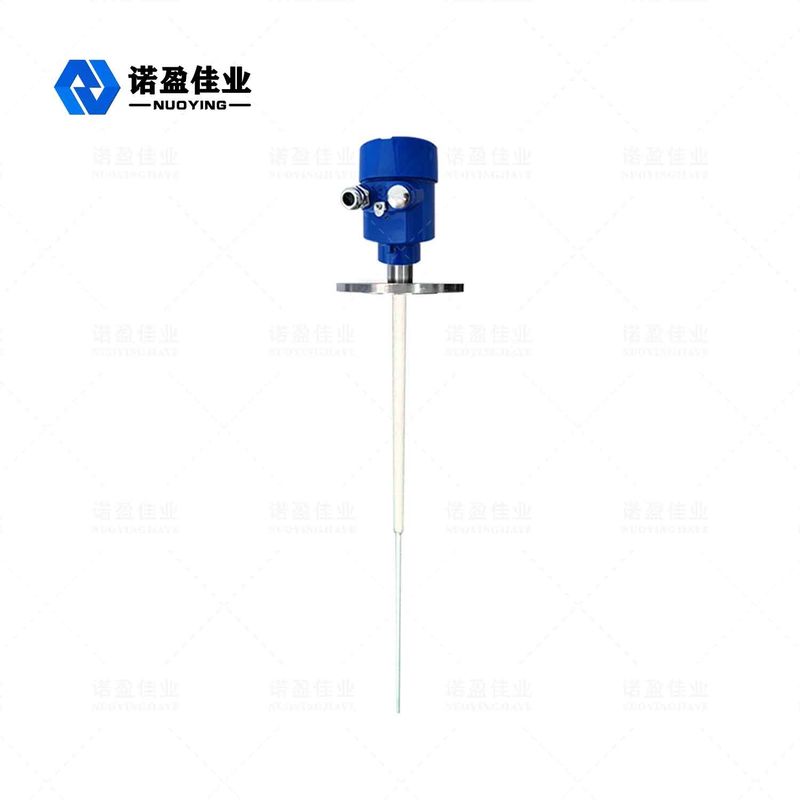

Ceramic Probe NYSP-UK863 RF Admittance Level Switch Moderate Temperature Type
NYSP-UK863 RF Admittance Level Switch Moderate Temperature Type
Rf admittance switch is also often called rf admittance level meter or RF admittance level meter. Rf admittance is a new level control technology developed from capacitive, which is more reliable, more accurate and more widely applicable.It can be applied to the measurement of various conductive and non-conductive media, such as liquids, viscous substances, particles, powders, and fly ash. It is an upgrade of capacitive level technology. So-called rf admittance, the meaning of the admittance to the reciprocal of electrical impedance in, its element by resistive, capacitive component, the perceptual component integrated, and radio frequency or high frequency radio spectrum, so the radio frequency admittance can be understood as admittance is measured with a high frequency radio waves. The patented anti-adhesion circuit can eliminate false signals caused by material adhesion.When the instrument is working, the sensor of the instrument forms the admittance value with the tank wall and the measured medium. suitable for working environment from -184°C to 280°C, and ceramic probes for higher temperature are also available.When the level changes, the admittance value changes accordingly. The circuit unit converts the measured admittance value into the level signal output to realize the level measurement.
NYSP-UK863 RF Admittance Level Switch Moderate Temperature Type Technical Parameter
| Applications | liquid,particle, powder, solid position control |
| Material | PTFE |
| Probe rod length | 500mm (customizable as required) |
| Power supply | 24VDC, 220VAC (optional) |
| Process temperature | -184℃~+260 °C |
| Process pressure | -0.1~2.0MPa |
| Process connection | Thread, flange (optional) |
| Time delay | 0〜30s adjustable |
| Power loss protection | open, close, field switchable |
| Output relay | double pole, double throw (DPDT) output,5A, 24V DC or 5A, 220VAC |
| Protection grade | IP67 |
| Explosion-proof grade | Exia IICT6 Ga |
※ Note: Products can be customized according to the specific requirements of users!
