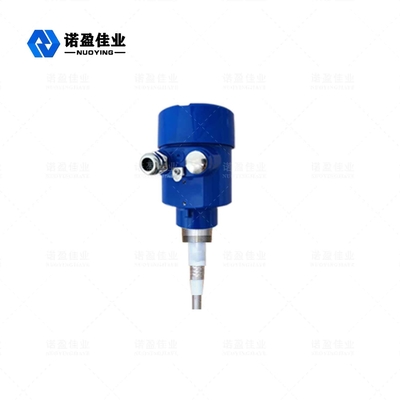

NYSP-UK866 Compact RF Admittance Level Switch Accessible Versatility 500mm

NYSP-UK866 Compact RF Admittance Level Switch Accessible Versatility 500mm
NYSP-UK866 Compact RF Admittance Level Switch Accessible Versatility 500mm

Large Image :  NYSP-UK866 Compact RF Admittance Level Switch Accessible Versatility 500mm

Product Details:
Place of Origin: Xi'an, Shaanxi,China
Brand Name: NUOYINGJIAYE
Certification: CE
Model Number: NYSP-UK866
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: $450 to $1700 /pcs
Packaging Details: Carton, 60cm×30cm×30cm
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 1000 pcs/ pre month

NYSP-UK866 Compact RF Admittance Level Switch Accessible Versatility 500mm

Description
Power Supply: 220VAC,24VDC (optional) Time Delay: 0-30s Adjustment
Process Pressure: 0~2.0MPa Process Connection: Thread, Flange (optional)
Process Temperature: -40~+130℃,-184~+260℃ Protection Level: IP67
Typical Application: Very Short Probe For Various Applications Or As A Coal Blocking Switch Probe Length: 500mm (can Be Customized Upon Request)
High Light:

Compact RF Admittance Level Switch

,

RF Admittance Type Level Switch 500mm

,

RF Admittance Level Sensor Switch

Compact And Accessible Strong Versatility 500mm NYSP-UK866 RF Admittance Level Switch





NYSP-UK866 RF Admittance Level Switch Working Principle



Radio Frequency Conductivity level switches work on the principle of backbone Radio Frequency (RF) capacitance technology. RF is applied to the probe and the impact caused by the surrounding environment is determined by continuous analysis. Since all materials have a dielectric constant and their conductivity differs from that of air, the overall impedance, reflected by the small capacitance shift, changes when the probe comes in contact with the material. Since the energized probe and the vessel wall form the two pole plates of a capacitor, when air (with a dielectric constant of 10) is replaced by any other material (with a dielectric constant > 1), the capacitive effect is enhanced. This changes the negative resistance of the application. That is, the change in capacitance value causes a change in impedance. This effect is measured by the circuit and compared with the reference value established by the sensitivity setting (circuit).



NYSP-UK866 RF Admittance Level Switch Design Feature



1.Strong versatility: it can measure liquid level and material level, also can meet the requirements of different temperature, pressure, mediums. Also can be used in corrosion, impact and other bad occasions.

2.Anti-hanging of material: the unique circuit design and sensor structure make its measurement free from the influence of the sensor hanging material, no need to clean regularly, and avoid mismeasurement.

3.Maintenance-free: no moving parts during measuring, no mechnical parts damage problem , no need regular maintenance.

4.Anti-interference: contact measurement, strong anti-interference ability, can overcome the influence of steam, foam and agitation.

5.Accurate and reliable: the measurement quantity is diversified, which makes the measurement more accurate. Not affected by environmental changes, with high stability and long service life.



NYSP-UK866 RF Admittance Level Switch Technial Parameters



Typical application Very short probe for various applications or as a coal blocking switch
Probe material 304+PTFE (optional)
Probe length 500mm (can be customized upon request)
Supply power 220VAC,24VDC (optional)
Process temperature -40~+130℃,-184~+260℃
Process pressure 0~2.0MPa
Process connection Thread, flange (optional)
Signal output DPDT output, 5A 24VDC or 5A 220VAC
Time delay 0-30s adjustment
Failure alarm Upper or lower limit, adjustable on site
Protection level IP67
Explosion-proof grade Exia II CT6 (optional)
