Product Details:
|
| Product Model: | NYRD900 | Typical Application: | Suitable For Large Tanks (150m) And Small Tanks (small Blind Area) |
|---|---|---|---|
| Transmission Frequency: | 76Hz-81Hz, FM Scanning Frequency Width 5GHz | Antenna Form: | Lens Antenna ; Antiseptic Lens Antenna |
| Antenna Material: | PTFE, 304＋PTFE | Measuring Accuracy: | 0.05%-0.1%F.S |
| Measuring Range: | 0.08-150m | ||
| High Light: | Tanks Radar Level Meter,Radar Level Meter 150m,Intelligent Radar Level Transmitter |
||

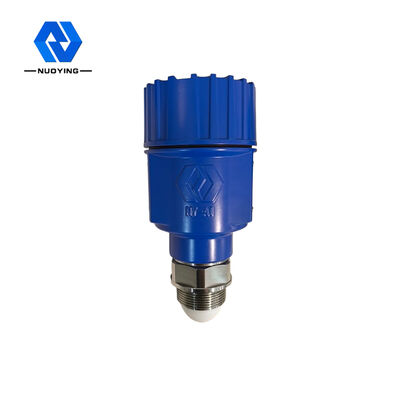

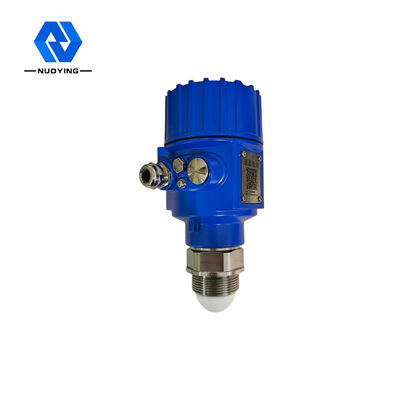

80G Large Measuring Range Radar Level Meter Strong Penetrability
Working principle of 80G Radar Level Meter
NYRD900 FMCW radar product ,also known as millimeter -wave radar, due to the millimeter wave band with higher frequency than ku band radar is adopted, in remote target detection, strong smoke and dust environment, it still has important application in remote imaging and multispectral imaging.
And it can detect smaller targets and achieve more accurate positioning than microwave radar, with higher resolution and stronger security.
Design feature of 80G Radar Level Meter
1.Good transient performance:Based on self-developed COMS millimeter-wave chip. It is independent research and development, and has independent software, independent chip.
2.Small beam angle, small antenna size and easy installation: the smaller the beam angle, the smaller the influence on the measured project, which greatly improves the measurement reliability and accuracy.
3.Low energy: Not easy to destory the substance to be tested. Large measuring range and small blind area:The good results can also be obtained for small can measurement.
4.Strong penetrability: It can be used to detect the internal structure of material.

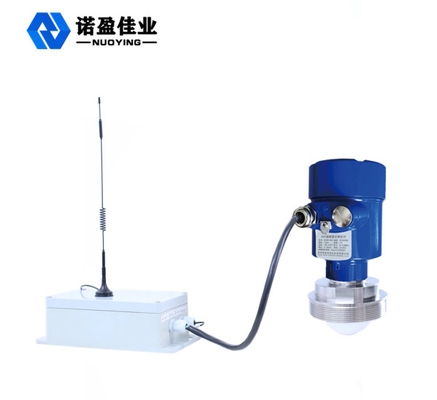

5.It supports remote debugging and remote upgrading to facilitate the maintenance of field personnel.
Technical Parameters of of 80G Radar Level Meter
|
Typical application |
The electromagnetic wave emission Angle is less than 3 degrees, suitable for narrow space or guide wave tube measurement |
| Suitable for oversized storage tanks(150m) and small storage tanks(Small blind area) | |
| High precision, high hygiene level and other occasions of measurement | |
| Complex process conditions (stirring, heating rod, ladder, floating roof, strong dust, strong steam, etc.) | |
|
product model |
NYRD900 |
| emission frequency | 76GHz-81GHz,The FM scanning frequency width is 5GHz |
|
Antenna form |
Lensed antenna, anticorrosion type, lensed antenna |
|
Antenna material |
PTFE,304+PTFE |
| measuring range |
0.08-150m |
| accuracy of measurement | 0.05%-0.1%F.S |
| Power Supply Voltage | 24VDC,220VAC |
|
signal output |
4...20mA/HART/RS485/Modbus... |
| Process temperature | -40~+130℃,-40~+260℃(≥260℃ can be customized) |
| Process pressure |
-0.1~2.0MPa |
| procedure linkage |
screw thread,bracket,flange,clamps(optional) |
| levels of protection | IP65,IP67,IP68(optional) |
| explosion-proof classification | Exia II CT6 Ga,Exd II CT6 Gb(See certificate for details) |
※Note:The product can be customized according to the specific requirements of users.
