| Brand Name: | NUOYINGJIAYE |
| Model Number: | NYRD803T |
| MOQ: | 1 pcs |
| Price: | $450 to $1700 /pcs |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs/ pre month |

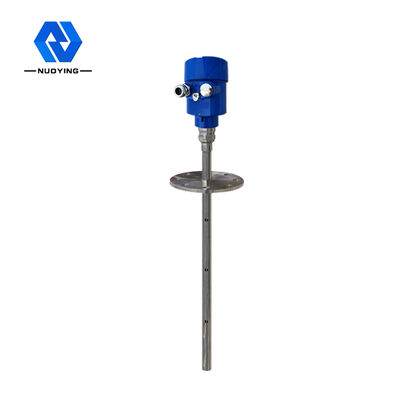

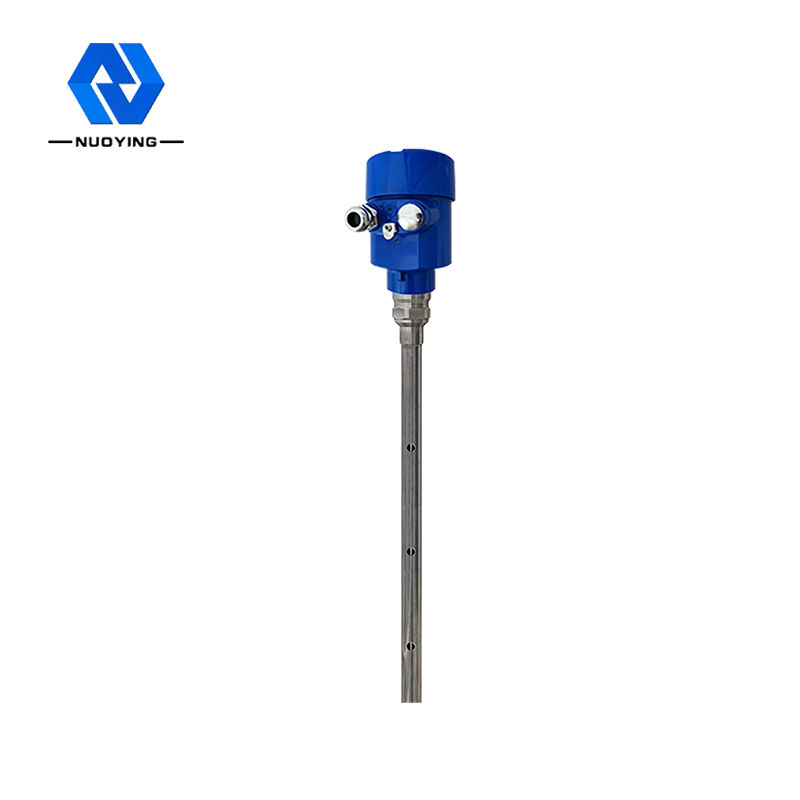

False Echo Learning 6m Liquid NYRD704 1.8G Radar Level Transmitter
NYRD704 1.8G Radar Level Transmitter Working Principle
The guided wave radar level gauge adopts advanced microwave processing technology and unique EchoDiscovery echo processing technology. It conducts contact measurement, has high measurement accuracy and is more precise. At the same time, the guided wave radar is resistant to adhesion and is not affected by external environmental factors such as medium temperature and adhesion.
NYRD704 1.8G Radar Level Transmitter Technical Parameters
| Typical application | Liquids, especially in situations with low dielectric constant and complex conditions such as stirring |
| Antenna material | 304(optional) |
| Measuring range | 6m |
| Power supply | 24VDC(Two lines, four lines),220V AC |
| Medium temperature | -40~+130℃ |
| Process pressure | -0.1~4.0MPa |
| Process connection | Flange,Thread (optional) |
| Measuring accuracy | 0.05%-0.1%F.S |
| Protection level | IP66 |
| Explosion-proof grade | Exia II CT6 |
| Signal output | 4...20mA/HART/RS485/Modbus... |
NYRD704 1.8G Radar Level Transmitter Design Feature
1. The guided wave radar level meter adopts advanced microwave processing technology and unique echo discovery echo processing technology. The product can be applied to various complex working conditions.
2. The "false echo learning" function enables the instrument to accurately identify the true echo under multiple false echo conditions, so as to obtain accurate measurement results.
3. Various process connection modes and detection element types can be customized according to customer requirements.
4. Using the pulse working mode, the product has extremely low emission power and can be installed in various metal and non-metal containers without harm to human body and environment.
