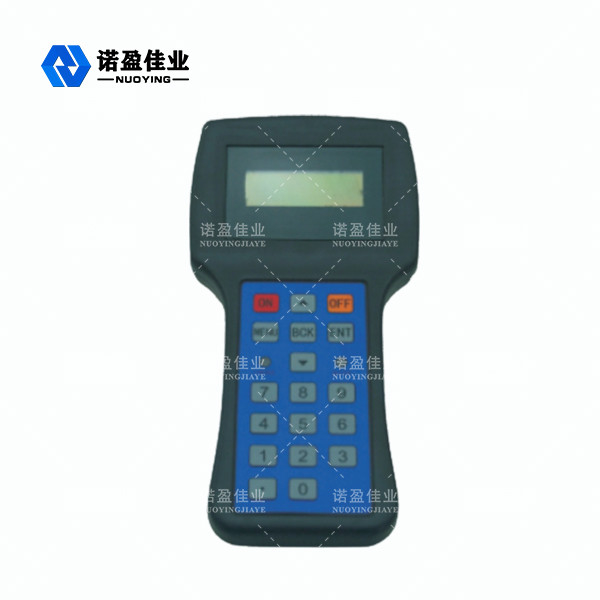

Light Weight Handheld Ultrasonic Flow Meter RS485 NYCL - 100A Type

Light Weight Handheld Ultrasonic Flow Meter RS485 NYCL - 100A Type

Brand Name: NUOYINGJIAYE
Model Number: NYCL-100A
MOQ: 1 pcs
Price: $450 to $1700 /pcs
Payment Terms: T/T
Supply Ability: 1000 pcs/ pre month
Detail Information
Place of Origin:
Xi'an, Shaanxi,China
Certification:
CE
Measuring Principle:
Ultrasonic Time Difference Type Principle
Measuring Accuracy:
±1.0%
Direction Of Flow:
Positive And Negative Bi-directional Metering, And Measurement Of Positive, Negative And Net Cumulative Flow \ Heat
Data Interface:
RS485 Serial Interface, Can Be Upgraded Through The PC Computer To The Flowmeter, Support Modbus And Other Protocols
Data Logging:
External SD Card Data Memory, Can Store Time, Instantaneous Flow, Cumulative Flow, Etc., And Can Import Data To Computer
Measurement Media:
Water, Seawater, Sewage, Alcohol, Various Oils And Other Media That Can Conduct Ultrasound In A Single, Uniform, Stable Liquid
Packaging Details:
Carton, 60cm×30cm×30cm
Supply Ability:
1000 pcs/ pre month
Highlight:

Light Weight Handheld Ultrasonic Flowmeter

,

Handheld Ultrasonic Flow meter

,

Ultrasonic Sewage Liquid Flow Meter RS485

Product Description

Small Size And Light Weight NYCL-100A Type Handheld Ultrasonic Flowmeter





NYCL-100A Type Handheld Ultrasonic Flowmeter Working Principle



NYCL-100A type handheld ultrasonic flowmeter/calorimeter has the benefit of small size and light weight. Mostly used for mobile measurement, measurement measurement, data comparison to determine whether the meter measurement is correct; with the addition of data memory SD card to facilitate future uploading of data, statistical analysis, etc.. More suitable for relatively pure liquid flow measurement outside the tube especially in water flow rate, industrial circulating water, air conditioning and refrigeration circulating water, raw water, high-pressure water, tap water widely used, the product has been exported abroad, quite popular.



NYCL-100A Type Handheld Ultrasonic Flowmeter Technical Parameters



Measuring principle Ultrasonic time difference type principle
Measuring range 0~±10m/s
Measuring accuracy ±1.0%
Direction of flow Positive and negative bi-directional metering, and measurement of positive, negative and net cumulative flow heat
Data Interface RS485 serial interface, can be upgraded through the PC computer to the flowmeter, support Modbus and other protocols
Data logging External SD card data memory, can store time, instantaneous flow, cumulative flow, etc., and can import data to computer
Signal output 4-20mA output, OCT pulse output, relay output.
Power supply method Built-in NiMH rechargeable battery, can continue to work 15-20 hours
Measurement media Water, seawater, sewage, alcohol, various oils and other media that can conduct ultrasound in a single, uniform, stable liquid
Media turbidity ≤20,000ppm and small bubble content
Applicable Tubes Carbon steel, stainless steel, cast iron, copper, PVC, aluminum, glass fiber reinforced plastic and other uniform quality and density of the pipe, allowing a lining straight
Pipe Section The sensor installation point should preferably meet: 10D upstream, 5D downstream, 30D from the pump outlet
