Product Details:
|
| Typical Application: | Dust Chemical Working Site | Antenna Form: | Bar Type, Water Drop Type, Plate Type, Horn Type, Surface Type, Lens Type |
|---|---|---|---|
| Antenna Material: | PTFE、304、 316、 PP、 PFA | Measurement Accuracy: | 0.05%~0. 1%F.S |
| Power Supplies: | 24VDC(two-wire, Four-wire) | Protection Grade /IP Grade: | IP67(Optional) |
| Explosive-proof Grade: | ExialICT6 Ga, Exd IICT6 Gb(see Certificate For Details) | Process Pressure: | （-0.1~4.0）MPa |
| High Light: | Dust Chemical Radar Level Switch,Radar Type Level Transmitter IP65,Dust Radar Level Instrument 26G |
||

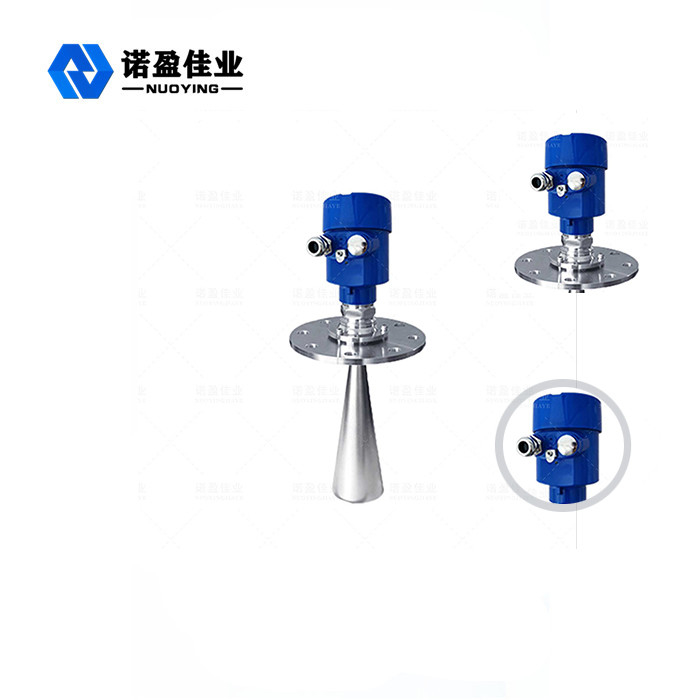

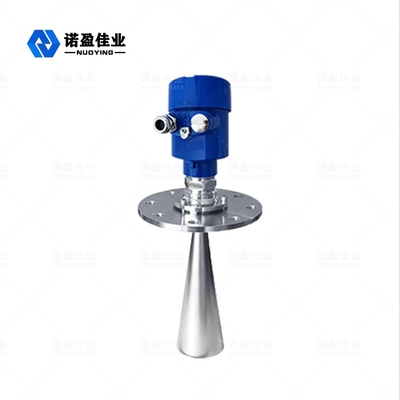

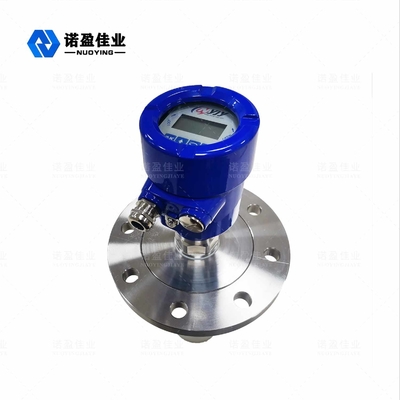

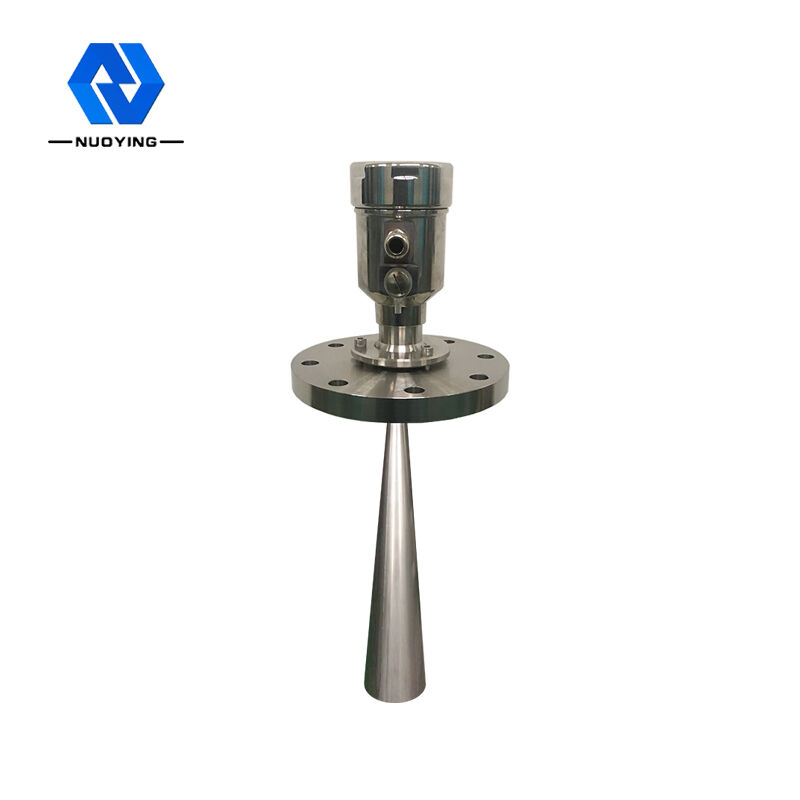

26G Customized Radar Level Transmitter For Dust Chemical Working Site NYRD 809
The profile of 26G Customized Radar Level Transmitter For Dust Chemical Working Site NYRD 809
Radar Level Meter (NYRD809)series sensors are 26GHz high-frequency radar level measuring instruments,enabling the meter to be used in complex measurement conditions such as reaction tanks and solid bin,measuring the maximum distance up to 80 meters. The antenna is further optimized, and new fast microprocessors can perform higher rate signal analysis and processing.
The device has many excellent properties, is a relatively advanced economic real-time monitoring system, with excellent test accuracy and high stability, to achieve accurate, non-contact and uninterrupted long-distance ranging. The measurement Dust Chemical at working site Position beam has small divergence angle and good directionality; large range, long distance measurement, small blind spot; not affected by medium temperature. Not affected by ambient temperature.

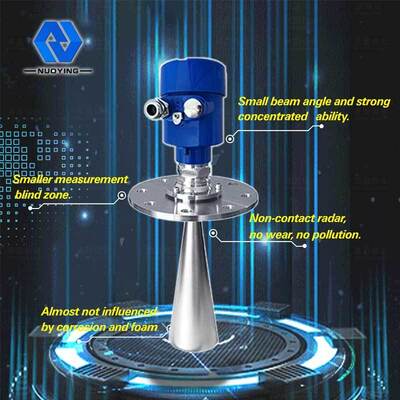

Design Features of 26G Customized Radar Level Transmitter For Dust Chemical Working Site NYRD 809
◎The antenna size is small, easy to install; Non-contact radar, no wear, no pollution.
◎ almost immune to corrosion and foam; Not affected by medium density, temperature and pressure changes.
◎ Serious dust environment has little influence on the work of high frequency level meter.
◎ Shorter wavelength, better reflection on inclined solid surfaces.
◎ The beam Angle is small, the energy is concentrated, which enhances the echo ability and is conducive to avoid interference objects.
◎ Measuring blind area is smaller, for small tank measurement will also achieve good results.
◎ High signal-to-noise ratio, even in the case of fluctuations can also obtain better performance.
case of fluctuations can also obtain better performance.
◎ High frequency, is the best choice for measuring solid and low dielectric constant medium.High frequency, is the best choice for measuring solid and low dielectric constant medium.
Technical Parameter of 26G Customized Radar Level Transmitter For Dust Chemical Working Site NYRD 809

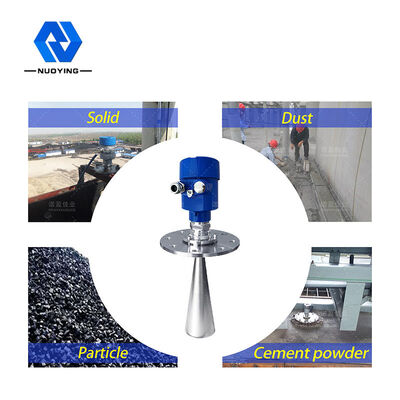

| Typical application | Solid dust particles |
|
product model
|
NYRD809 |
|
Antenna form |
Stick, water drop, flat, trumpet,thrown surface, lens |
| Antenna material | PTFE,304,316,PP,PFA |
| measuring range | 35m |
| accuracy of measurement | 0.05%~0.1%F.S |
| Power Supply Voltage | 24VDC(two wire,four wire) |
|
signal output |
4...20mA/HART/RS485/Modbus... |
| Process temperature | -40~+250℃ |
| Process pressure |
-0.1~4.0MPa, |
| procedure linkage | bracket,flange(optional) |
| Electrical interface | M20*1.5,½ ″NPT |
| levels of protection | IP67(optional) |
| explosion-proof classification | Exia II CT6 Ga,Exd II CT6 Gb(See certificate for details) |
※Note:The product can be customized according to the specific requirements of users.
