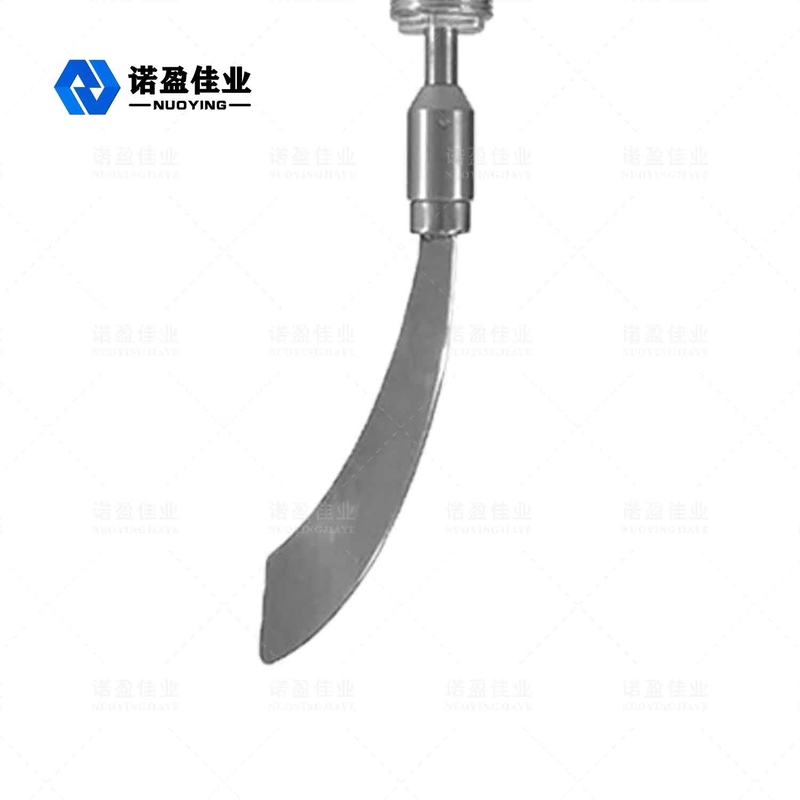

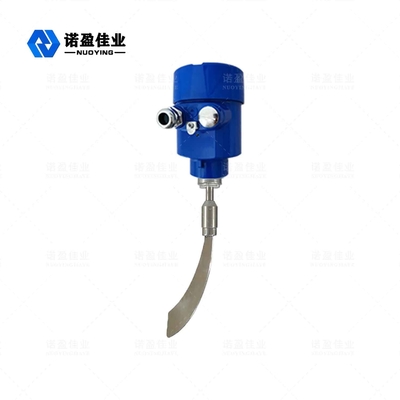

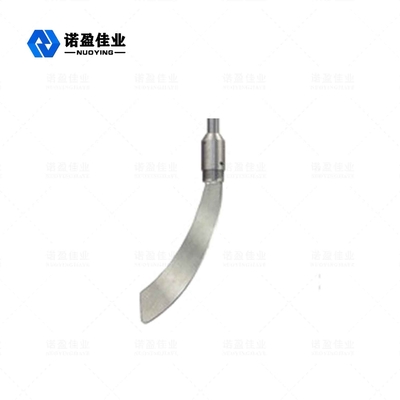

NYZX Sickle Blade Rotary Paddle Level Switch For Resistance Material

NYZX Sickle Blade Rotary Paddle Level Switch For Resistance Material

Brand Name: NUOYINGJIAYE
Model Number: NYZX(Sickle Blade)
MOQ: 1pcs
Price: $150~$350/pcs
Payment Terms: T/T
Supply Ability: 1000 pcs/per month
Detail Information
Place of Origin:
Xi'an,Shannxi,China
Certification:
CE,ATEX,SIL
Model:
NYZX(Sickle Blade)
Bar Material:
304 (optional)
Power Supply:
24VDC(optional)
Process Temperature:
-40~+80 °C ( > 80 °C Customizable)
Process Pressure:
Normal Pressure
Process Connection:
Thread(optional)
Dielectric Density:
N 0.4g/cm3
Insulation Impedance:
N 100MKQ (500VDC)
Packaging Details:
Carton, 80cm x 17cm x 24cm
Supply Ability:
1000 pcs/per month
Highlight:

Sickle Blade Rotary Paddle Level Switch

,

304 Resistance Rotary Level Switch

,

Rotary Blade Paddle Level Switch

Product Description

Simple Structure NYZX Sickle Blade Rotary Paddle Level Switch Convenient Installation





NYZX Sickle Blade Rotary Paddle Level Switch



NYZX series resistance rotary material level switch uses a water magnetic motor to drive the blade to rotate. The unique oil seal design prevents dust from infiltrating along the shaft.When the detected material rises to the blade position, the blade rotation is blocked, and the resistance is transmitted to the detection device in the junction box, and the detection device is outward. The motor performance of the imported anti-rotation switch is reliable, and the double sealed bearings can ensure continuous operation for a long time.A switch signal is output, and the power is cut off to stop the blade from rotating. Simple structure and convenient installation.When the material level drops, the blade resistance disappears, and the detection device relies on the tension of the spring to return to the original state. Adjust the spring tension for different material specific gravity. When the specific gravity is large, adjust the spring tension to the strongest or strongest, and vice versa weak.



NYZX Sickle Blade Rotary Paddle Level Switch Technical Parameter



Applications powder, small particle level control
Bar material 304 (optional)
Probe length 200mm (customizable as required)
Power supply 24VDC(optional)
Process temperature -40~+80 °C ( > 80 °C customizable)
Process pressure normal pressure
Process connection thread, flange (optional)
Dielectric density N 0.4g/cm3
Insulation impedance N 100MKQ (500VDC)
Dielectric strength 1500V lmin
Contact capacity 250V 5A (SPDT)
Moment 10kg*m (lN*m)
Power 3.0W
Electrical interface 3/4 nNPT
Shell material Aluminium (optional)
Level of protection IP67
Anti-hazard classification Exia IICT6 (optional)



※ Note: Products can be customized according to the specific requirements of users!
