Product Details:
|
| Model: | NYZX（Leaf Blade Can Be Folded） | Bar Material: | 316 (optional) |
|---|---|---|---|
| Probe Length: | 200mm (customizable As Required) | Anti-hazard Classification: | Exia II CT 6 (optional) |
| Shell Material: | Aluminium (optional) | Electrical Interface: | 3/4 NNPT |
| Power: | 3.0W | Moment: | 10kg*m (lN*m) |
| High Light: | Sickle Leaf Blade Rotary Paddle Switch,1.6MPa Rotary Paddle Level Switch,316 Aluminium Rotating Paddle Level Switch |
||
Aluminium IP67 NYZX Rotary Paddle Level Switch Leaf Blade Can Be Folded 1.6MPa

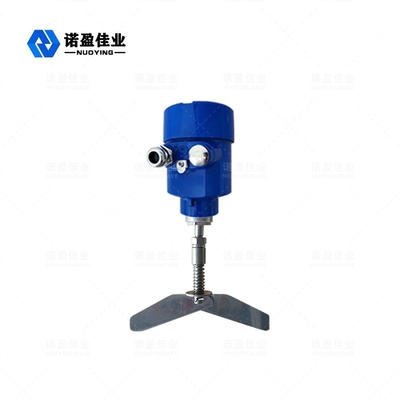

NYZX Rotary Paddle Level Switch Leaf Blade Can Be Folded

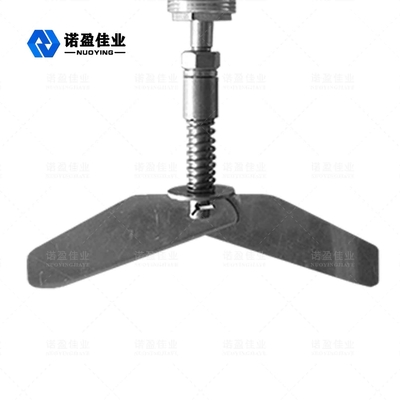

The NYZX series resistance rotary material level switch is the use of micro motor as a driving device, the drive shaft is connected with the clutch, Shaft length adjustable type and steel cable type only suitable for top mounting.when there is no contact with the material, the motor runs normally, when the blade contact with the material, the motor stops rotating, the detection device output a contact signal, at the same time cut off the power to stop rotating. The rotary resistance switch should avoid being installed directly under the blanking opening.When the material falls, the resistance of the blade disappears and the detection device returns to the original state by torsion spring. For different specific gravity material torque size can be adjusted.When the continuous position is 1 "thread, the sickle blade can be selected so that it can be locked directly into the tube tooth.1'
NYZX Rotary Paddle Level Switch Leaf Blade Can Be Folded Technical Parameter
| Applications | powder, small particle level control |
| Bar material | 316 (optional) |
| Probe length | 200mm (customizable as required) |
| Power supply | 220VAC (optional) |
| Process temperature | -40 - +80 °C (> +80 °C customizable) |
| Process pressure | 0~ 1.6MPa |
| Process connection | flange (optional) |
| Dielectric density | N 0.4g/cm3 |
| Insulation impedance | N 100MKQ (500VDC) |
| Dielectric strength | 1500V lmin |
| Contact capacity | 250V 5A (SPDT) |
| Moment | 10kg*m (lN*m) |
| Power | 3.0W |
| Electrical interface | 3/4 nNPT |
| Shell material | Aluminium (optional) |
| Level of protection | IP67 |
| Anti-hazard classification | Exia II CT 6 (optional) |
※ Note: Products can be customized according to the specific requirements of users!
