Product Details:
|
| Model: | NYZX（Leaf Blade Can Be Folded） | Applications: | Powder, Small Particle |
|---|---|---|---|
| Bar Material: | 304(optional) | Probe Length: | 200mm |
| Power Supply: | 24VDC | Process Temperature: | -40 - +80 °C (> +80 °C Customizable) |
| Process Pressure: | 0~ 1.6MPa | Process Connection: | Flange |
| High Light: | Folded Leaf Blade Rotary Level Switch,IP67 Rotary Paddle Level Switch,Aluminium Rotating Paddle Level Switch |
||

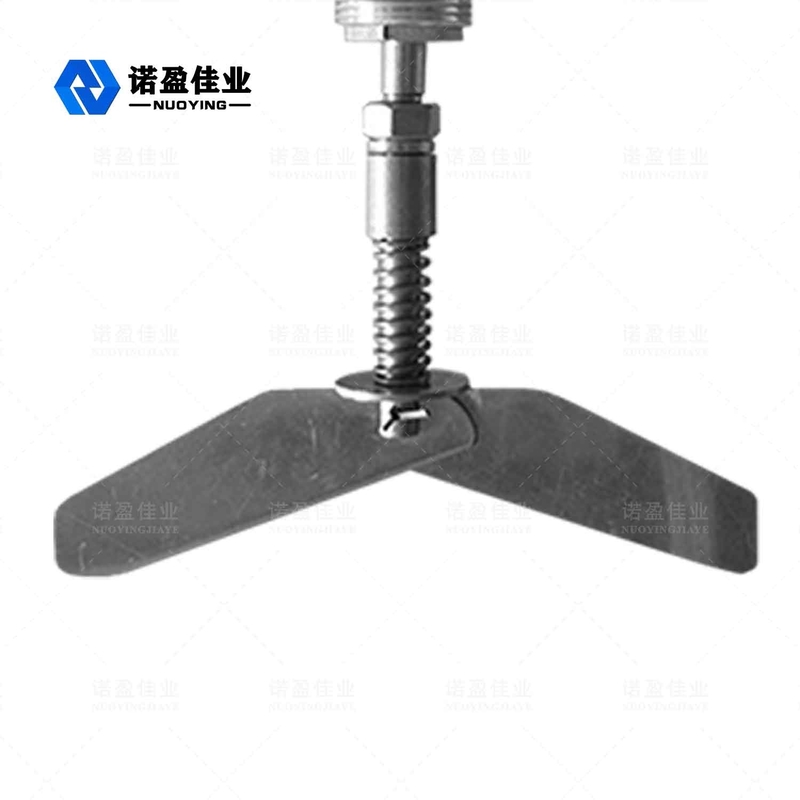

Aluminium IP67 NYZX Rotary Paddle Level Switch Leaf Blade Can Be Folded

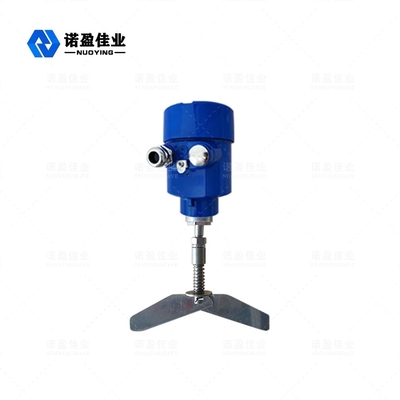

NYZX Rotary Paddle Level Switch
The NYZX series resistance rotary material level switch is the use of micro motor as a driving device, The rotary resistance switch should avoid being installed directly under the blanking opening.the drive shaft is connected with the clutch, when there is no contact with the material, the motor runs normally, Shaft length adjustable type and steel cable type only suitable for top mounting.when the blade contact with the material, the motor stops rotating, the detection device output a contact signal, at the same time cut off the power to stop rotating. The controller can be installed at ahorizontal angle of 15°C-20°C to reduce the impact on the material.When the material falls, the resistance of the blade disappears and the detection device returns to the original state by torsion spring. Stop switch junction box outlet must be down, cable fixed screw mother must be locked.For different specific gravity material torque size can be adjusted.
NYZX Rotary Paddle Level Switch Technical Parameter
| Applications | powder, small particle |
| Bar material | 304(optional) |
| Probe length | 200mm |
| Power supply | 24VDC |
| Process temperature | -40 - +80 °C (> +80 °C customizable) |
| Process pressure | 0~ 1.6MPa |
| Process connection | flange |
| Dielectric density | N 0.4g/cm3 |
| Insulation impedance | N 100MKQ (500VDC) |
| Dielectric strength | 1500V lmin |
| Contact capacity | 250V 5A (SPDT) |
| Moment | 10kg*m (lN*m) |
| Power | 3.0W |
| Electrical interface | 3/4 nNPT |
| Shell material | Aluminium |
| Level of protection | IP67 |
| Anti-hazard classification | Exia II CT 6 (optional) |
※ Note: Products can be customized according to the specific requirements of users!
