Product Details:
|
| Model: | NYZX（Cross Blade Type） | Insulation Impedance: | N 100MKQ (500VDC) |
|---|---|---|---|
| Dielectric Strength: | 1500V Lmin | Contact Capacity: | 250V 5A (SPDT) |
| Moment: | 10kg*m (lN*m) | Power: | 3.0W |
| Electrical Interface: | 3/4 NNPT | Shell Material: | Aluminium |
| High Light: | Cross Blade Type Paddle Level Switch,Rotary Paddle Level Switch 200mm,Aluminium Shell Rotary Paddle Switch |
||

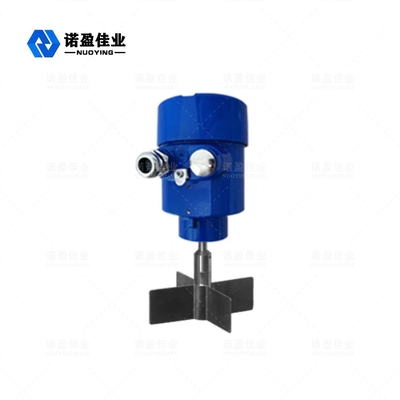

Reliable 200mm NYZX Rotary Paddle Level Switch Cross Blade Type Exia II CT 6

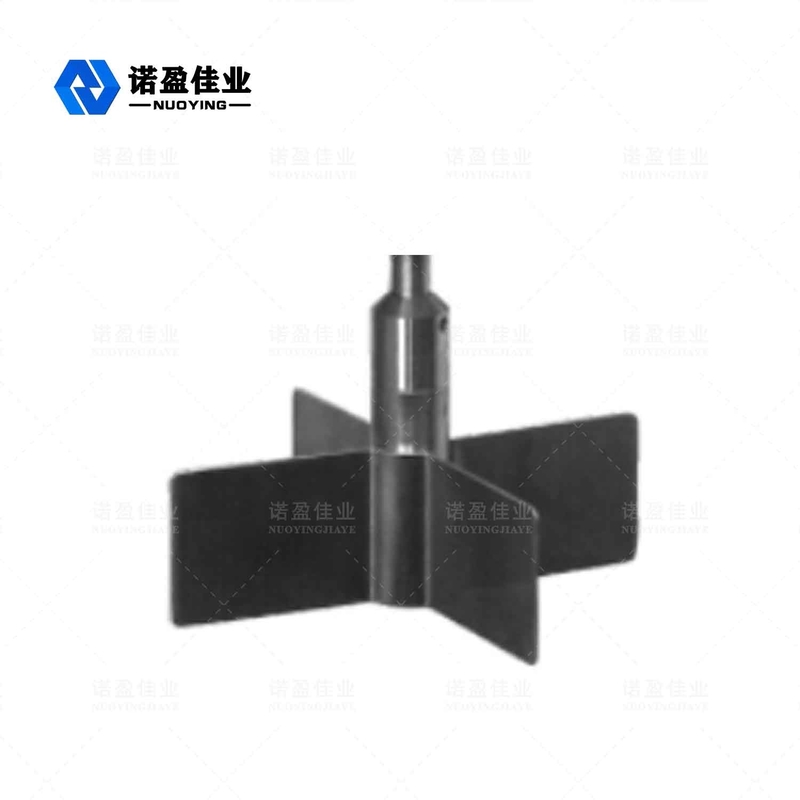

NYZX Rotary Paddle Level Switch Cross Blade Type
NYZX series resistance rotary material level switch uses a water magnetic motor to drive the blade to rotate. A variety of probe forms can be used in different occasions.When the detected material rises to the blade position, the blade rotation is blocked, and the resistance is transmitted to the detection device in the junction box, and the detection device is outward. A switch signal is output, and the power is cut off to stop the blade from rotating. Stable and reliable, and the torque can be adjusted.When the material level drops, the blade resistance disappears, and the detection device relies on the tension of the spring to return to the original state. Adjust the spring tension for different material specific gravity. Simple structure and convenient installation.When the specific gravity is large, adjust the spring tension to the strongest or strongest, and vice versa weak.
NYZX series resistance rotary material level switch is a field control equipment used to detect the level of solid materials (powder, granules), and is widely used in feed, food, pharmaceutical, chemical, plastic, construction, fertilizer and other industries.
NYZX Rotary Paddle Level Switch Cross Blade Type Technical Parameter
| Applications | powder, small particle mediem level control |
| Bar material | 304 |
| Probe length | 200mm (customizable as required) |
| Power supply | 24VDC |
| Process temperature | -40 - +130 °C (> +130 °C customizable) |
| Process pressure | normal pressure |
| Process connection | thread |
| Dielectric density | N 0.4g/cm3 |
| Insulation impedance | N 100MKQ (500VDC) |
| Dielectric strength | 1500V lmin |
| Contact capacity | 250V 5A (SPDT) |
| Moment | 10kg*m (lN*m) |
| Power | 3.0W |
| Electrical interface | 3/4 nNPT |
| Shell material | Aluminium |
| Level of protection | IP67 |
| Anti-hazard classification | Exia II CT 6 (optional) |
※ Note: Products can be customized according to the specific requirements of users!
