Product Details:
|
| Model: | NYZX（Flat Blade） | Applications: | Powder, Small Particle |
|---|---|---|---|
| Bar Material: | 316 (optional) | Anti-hazard Classification: | Exia II CT 6 (optional) |
| Level Of Protection: | IP67 | Shell Material: | Aluminium (optional) |
| Insulation Impedance: | N 100MKQ (500VDC) | Dielectric Density: | N 0.4g/cm3 |
| High Light: | Flat Blade Rotating Paddle Level Switch,Rotary Paddle Switch Double Seal Bearing,200mm Probe Rod Paddle Level Switch |
||

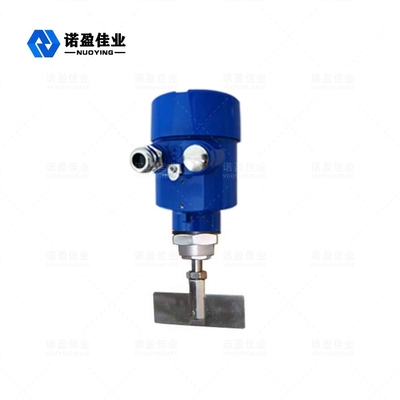

Double Seal Bearing NYZX Rotary Paddle Level Switch Flat Blade 200mm Probe Rod

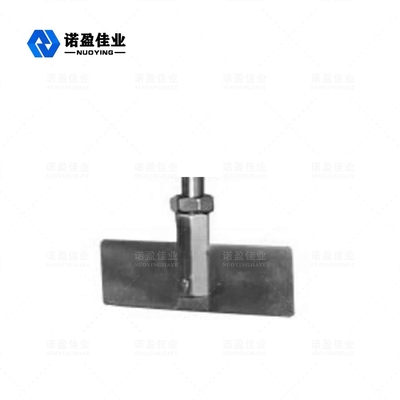

NYZX Rotary Paddle Level Switch Flat Blade
NYZX series resistance rotary material level switch is a field control equipment used to detect the level of solid materials (powder, granules), and is widely used in feed, food, pharmaceutical, chemical, plastic, construction, fertilizer and other industries.The unique oil seal design prevents dust from infiltrating along the shaft.The motor performance of the imported anti-rotation switch is reliable, and the double sealed bearings can ensure continuous operation for a long time.Simple structure and convenient installation.Stable and reliable, and the torque can be adjusted.A variety of probe forms can be used in different occasions.
NYZX Rotary Paddle Level Switch Flat Blade Technical Parameter
| Applications | powder, small particle |
| Bar material | 316 (optional) |
| Probe length | 200mm (customizable as required) |
| Power supply | 220VAC (optional) |
| Process temperature | -40 - +130 °C |
| Process pressure | 0~ 1.6MPa |
| Process connection | flange (optional) |
| Dielectric density | N 0.4g/cm3 |
| Insulation impedance | N 100MKQ (500VDC) |
| Dielectric strength | 1500V lmin |
| Contact capacity | 250V 5A (SPDT) |
| Moment | 10kg*m (lN*m) |
| Power | 3.0W |
| Electrical interface | 3/4 nNPT |
| Shell material | Aluminium (optional) |
| Level of protection | IP67 |
| Anti-hazard classification | Exia II CT 6 (optional) |
※ Note: Products can be customized according to the specific requirements of users!
