Product Details:
|
| Typical Application: | Power And Small Particle Level Control. | Probe Length: | 100mm(Length Can Be Customized According To Site Conditions) |
|---|---|---|---|
| Probe Material: | 304(optional) | Power Supply: | 24VDC, 220VAC |
| Process Temperature: | -40~+80℃（≥80℃ Can Be Customized） | Electrocution Capacity: | 250V 8A (SPDT Single Blade Double Throw) |
| Process Pressure: | Ordinary Pressure | Insulation Resistance: | ≥100MΩ(500VDC) |
| High Light: | Resistance Spin Paddle Level Sensor,Sickle Rotary Paddle Level Switch,Rotating Paddle Level Sensor 24VDC |
||

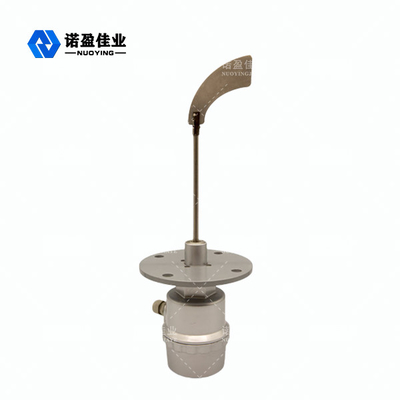

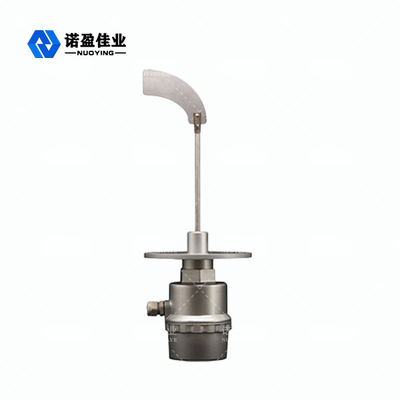

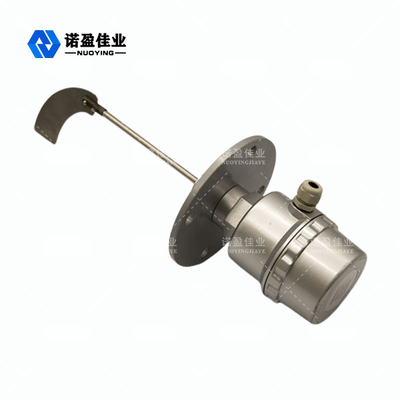

24VDC Discounted Simple Structure Easy To Install Sickle NYZX Resistance Spin Level Switch
Sickle NYZX Resistance Spin Level Switch Products Description
Level switch is used to detect the solid point level in the stock bin funnel and chute. The level switch reduces material waste and downtime by preventing the stock bin overflow chute from clogging and the stock bin no-load.
When the material level drops, the resistance of the leaf disappears, and the detecting device will return to the original state according to the tension of the spring, adjusting the spring tension for different material specific gravity, adjusting the spring tension to strong or strongest when the ratio is big, and adjusting to weak or weakest on the contrary.
Sickle NYZX Resistance Spin Level Switch Design Feature
1. Integrated seal design can be used in harsh environments.
2. Unique oil seal design prevents dust from penetrating along the axis.
3. The torsion is stable and reliable.
4. The blade bears excessive load, and the rotating mechanism of the motor slips automatically to protect it from damage.
Sickle NYZX Resistance Spin Level Switch Technical Parameters
| Typical application | Power and small particle level control. |
| Probe material | 304(optional) |
| Probe length | 100mm(Length can be customized according to site conditions) |
| Power supply | 24VDC, 220VAC |
| Process temperature | -40~+80℃(≥80℃ can be customized) |
| Process pressure | ordinary pressure |
| Process connection | Thread, flange (optional) |
| Electrocution capacity | 250V 8A (SPDT single blade double throw) |
| Insulation resistance | ≥100MΩ(500VDC) |
| Protection level | IP67 |
| Explosion-proof grade | Exia II CT6 |
Sickle NYZX Resistance Spin Level Switch Application Field
It is widely used in feed, silica, stone, spherical granules, wood chips, calcium powder, rubber, metal, malt, limestone, grain, foundry sand, sawdust, coal powder, etc. The NYZX series resistive level switch is the perfect combination of durability and sensitivity.
With the perfect combination of durability and sensitivity, the NYZX series of rotary material level switch has won the praise of users and stands out among many manufacturers of rotary switches.
