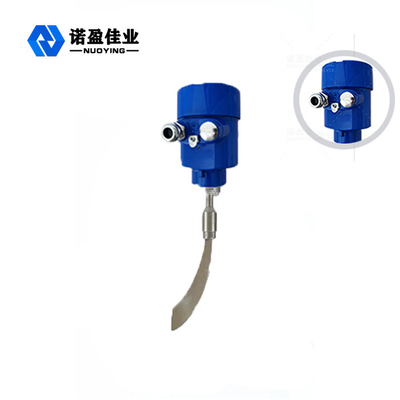

Blade Type Rotary Paddle Level Switch 250V 5A 100mm Probe Rod

Blade Type Rotary Paddle Level Switch 250V 5A 100mm Probe Rod
Blade Type Rotary Paddle Level Switch 250V 5A 100mm Probe Rod Blade Type Rotary Paddle Level Switch 250V 5A 100mm Probe Rod

Large Image :  Blade Type Rotary Paddle Level Switch 250V 5A 100mm Probe Rod

Product Details:
Place of Origin: Xi'an,Shaanxi,China
Brand Name: NUOYINGJIAYE
Certification: CE
Model Number: NYZX
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: $100~$380/pc
Packaging Details: Carton, 60cm×30cm×30cm
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 1000 pcs/ month

Blade Type Rotary Paddle Level Switch 250V 5A 100mm Probe Rod

Description
Typical Application: Powder, Small Particle Level Control Product Model: NYZX
Probe Rod Material: 304 Probe Rod Length: 100mm(The Length Can Be Customized According To The Site Conditions)
Medium Density: ≥0.4g/cm3 Moment Of Force: 10kg.m
Electric Shock Capacity: 250V 5A Insulation Impedance: ≥100MΩ
High Light:

Blade Type Rotary Paddle Level Sensor

,

100mm Probe Rod Rotary Level Switch

,

250V 5A Rotary Paddle Level Switch

Blade Type Rotary Paddle Level Switch Safe And Reliable





Working principle of Blade Type Rotary Paddle Level Switch Safe And Reliable



NYZX series resistance rotary material level switch uses permanent magnet motor to run the blade to rotate. As the detected material improves to the blade position, the blade will rotate and be blocked by the probe motor, and the oppsite will be transmitted to the detection device in the juncting box. The detecting device will deliver outsides a switch signal and cut off the power to prevent the blade from spinning. When the material level , the blade resistance disappears, the detecting device will depend on the tension of the spring to get back to situation in the the begining stage, according to different types specific gravity to controlling the spring pulling force, than when the spring tension is adjusted to the strong or the roudaest, whereas adjusted to the weak or the weakest.



Design Features of Blade Type Rotary Paddle Level Switch Safe And Reliable



◎ unique oil seal design can prevent dust from penetrating along the shaft;

◎The motor of imported resistance rotary switch has reliable performance, and double sealed bearings can ensure long-term continuous operation;

◎ Simple structure and convenient installation;

◎ stable and reliable, and the torque can be adjusted;

◎ a variety of probe forms can be applied to different occasions.



Technical Parameters of Blade Type Rotary Paddle Level Switch Safe And Reliable



Typical application Powder
product model NYZX
Probe Rod Material 304(optional)
Probe Rod Length 100mm(The length can be customized )
Power Supply 24VDC,220VAC
Process Temperature -40~+80℃(>+80℃can be customized)
Process Pressure  room pressure
Process Connection screw thread(optional)
Electric shock capacity 250V 5A(SPDT Single pole double throw)
Medium density ≥0.4g/cm3
moment of force 10kg.m(1N.m)
Insulation impedance ≥100MΩ(500VDC)
levels of protection IP67
Explosion-proof grade Exia II CT6


※Note:The product can be customized according to the specific requirements of user
