Product Details:
|
| Typical Application: | Powder And Small Particle Level Control | Power Supply: | 24VDC，220VAC |
|---|---|---|---|
| Process Temperature: | -40~+80℃（>+80℃can Be Customized） | Process Pressure: | Atmospheric Pressure |
| Process Connection: | Screw Thread、flange（optional） | Medium Density: | ≥0.4g/cm3 |
| Levels Of Protection: | IP67 | Explosion-proof Grade: | ExiaIICT6 （See Certificate For Details） |
| High Light: | Flat Blade Rotary Paddle Level Switch,Motor Rotary Paddle Level Switch,IP67 Rotary Level Switch |
||

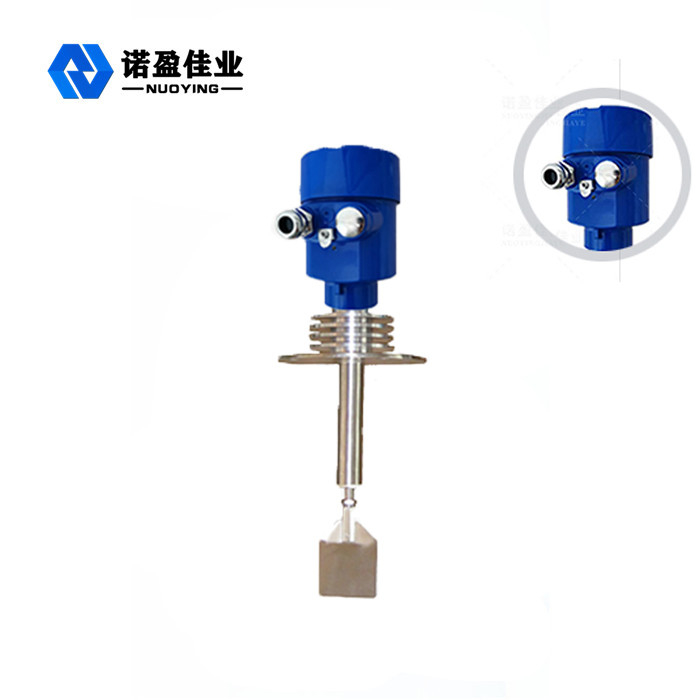

Flat Blade Rotary Paddle Level Switch Imported Motor
Working principle of Flat Blade Rotary Paddle Level Switch Imported Motor
NYZX series resistance rotary material level switch uses permanent magnet motor to run the blade to rotate. As the detected material improves to the blade position, the blade will rotate and be blocked by the probe motor, and the oppsite will be transmitted to the detection device in the juncting box. The detecting device will deliver outsides a switch signal and cut off the power to prevent the blade from spinning. When the material level , the blade resistance disappears, the detecting device will depend on the tension of the spring to get back to situation in the the begining stage, according to different types specific gravity to controlling the spring pulling force, than when the spring tension is adjusted to the strong or the roudaest, whereas adjusted to the weak or the weakest.
NYZX series anti rotation material level switch is a field control device used to detect the material level height of solid materials (powders and particles), which is widely used in feed, food, pharmaceutical, chemical, plastic, construction, fertilizer and other industries
Design Features of Flat Blade Rotary Paddle Level Switch Imported Motor
◎ unique oil seal design can prevent dust from penetrating along the shaft;
◎The motor of imported resistance rotary switch has reliable performance, and double sealed bearings can ensure long-term continuous operation;
◎ Simple structure and convenient installation;
◎ stable and reliable, and the torque can be adjusted;
◎ a variety of probe forms can be applied to different occasions.
Technical Parameters of Flat Blade Rotary Paddle Level Switch Imported Motor
| Typical application | small particle level control |
| product model | NYZX |
| Probe Rod Material | 304(optional) |
| Probe Rod Length | 100mm(The length can be customized according to the site conditions) |
| Power Supply | 220VAC |
| Process Temperature | -40~+80℃(>+80℃can be customized) |
| Process Pressure | room pressure |
| Process Connection | flange(optional) |
| Electric shock capacity | 250V 5A(SPDT Single pole double throw) |
| Medium density | ≥0.4g/cm3 |
| moment of force | 10kg.m(1N.m) |
| Insulation impedance | ≥100MΩ(500VDC) |
| levels of protection | IP67 |
| Explosion-proof grade | Exia II CT6(See certificate for details) |
※Note:The product can be customized according to the specific requirements of user
