Product Details:
|
| Typical Application: | Liquid Level And Interface Measurement | Product Models: | NYCZ500 |
|---|---|---|---|
| The Antenna Form Type: | Cable、rod | The Antenna Form Material: | 304、316 |
| Accuracy Of Measurement: | ±0.5mm | Process Pressure: | -0.1 ~10 MPa |
| Process Connection: | Flange（optional）） | Explosion-proof Grade: | Exia II CT6Ga, Exd II CT6Gb (see Certificate For Details) |
| High Light: | Flange Magnetostrictive Level Gauge,Rod Type Magnetostrictive Liquid Level Meter,Magnetostrictive Liquid Level Gauge 0.5mm |
||

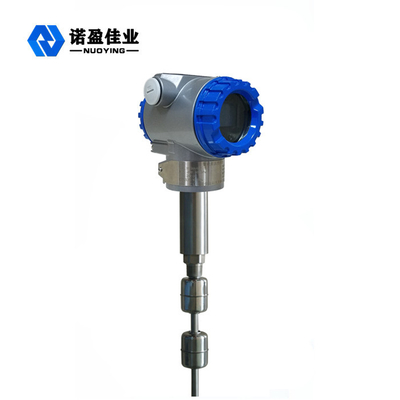

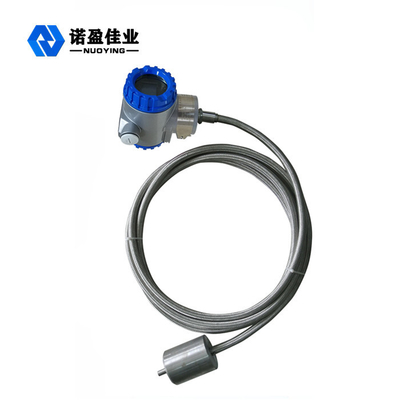

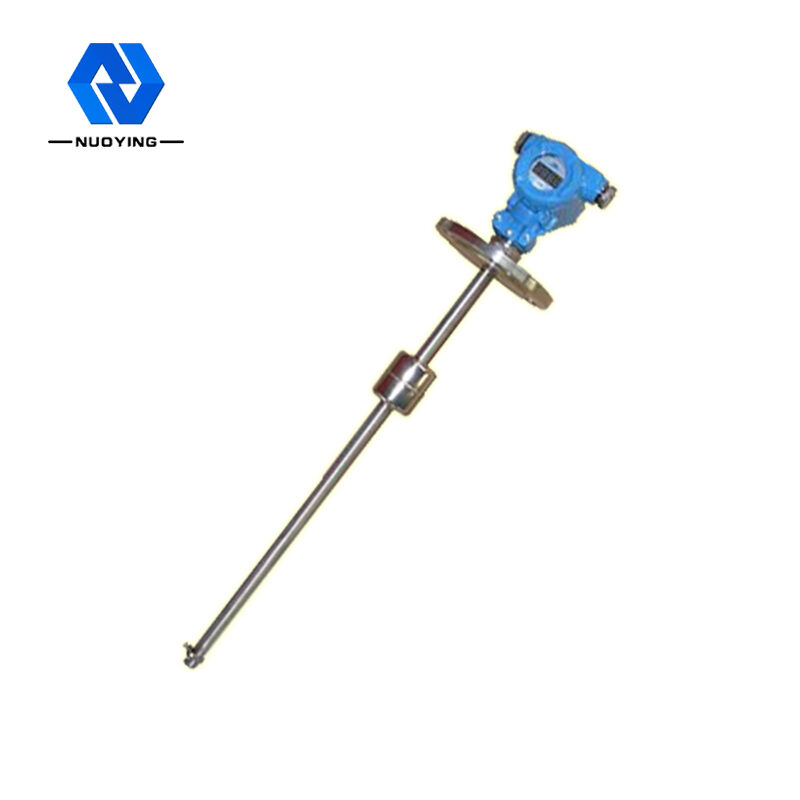

High Accuracy Magnetostrictive Liquid Level Meter Easy Installation
Working Principle of Magnetostrictive Liquid Level Meter
When the magnetostrictive liquid level meter works, the pulse generator in the electronic chamber sends out a starting pulse. When the starting pulse is transmitted in the waveguide wire, a rotating magnetic field goes forward along the direction of the waveguide wire is generated. When the magnetic field meets the permanent magnetic field in the floating ball, the magnetostrictive effect is generated, causing the waveguide wire to twist to generate a constant speed mechanical wave. This mechanical wave propagates in two directions. The mechanical wave reaching the end of the measuring rod is absorbed by the damper. The mechanical wave transmitted back to the direction of the electronic bin is sensed by the energy pickup mechanism installed in the electronic bin and converted into corresponding current pulses. The energy pickup mechanism then calculates the time difference between the two pulses to accurately measure the height of the measured liquid level.
Design feature of Magnetostrictive Liquid Level Meter
◎Wider applicability, with multiple probe forms, multiple process connection forms, multiple manufacturing materials, and customizable design
◎ strong reliability: since the magnetostrictive liquid level gauge adopts the waveguide principle, there is no mechanical movable part, so there is no friction and wear. The whole converter is enclosed in a stainless steel tube, which is non-contact with the measuring medium. The sensor works reliably and has a long service life
◎ high accuracy: since the magnetostrictive liquid level meter works with waveguide pulse, the measured displacement is determined by measuring the time of the start pulse and the end pulse, so the measurement accuracy is high and the resolution is better than 0.01% FS, which is difficult to achieve with other sensors
◎ high safety: the magnetostrictive liquid level meter has high explosion-proof performance, intrinsic safety and explosion-proof, safe use, and is especially suitable for the measurement of chemical raw materials and flammable liquids. There is no need to open the tank cover during the measurement to avoid the insecurity of manual measurement.
◎ magnetostrictive liquid level meter is easy to install and easy to maintain: the magnetostrictive liquid level meter is generally installed through the existing pipe orifice on the tank top, especially suitable for the installation of underground storage tanks and storage tanks that have been put into operation, and normal operation can not be affected during the installation process
Technical parameters of Magnetostrictive Liquid Level Meter
| Typical application | Liquid,Interface measurement |
|
product model |
NYCZ500 |
|
Antenna Form |
Cable, pole type |
|
Antenna material |
304,316 |
| measuring range | 0-50m~5000mm(cable:25m) |
| Measurement precision | ±0.5mm |
| Power Supply | 24VDC(two line, four line), 220VAC |
|
signal output |
4...20mA/HART/RS485/Modbus... |
| Working current |
4…20mA |
| Load characteristics | When the current is output, the maximum load resistance is 600Ω; When the voltage is output, the maximum load resistance is 2mA |
| Process Temperature | -40~+200℃ |
| response time | 0.2~5ms |
| Process pressure | -0.1~10.0MPa |
| Process connection | screw thread,bracket,flange(selectable) |
| resolution ratio | ±1mm |
| levels of protection | IP65,IP67,IP68(selectable) |
| Explosion-proof grade | Exia II CT6 Ga,Exd II CT6 Gb(See certificate for details) |
※Note:The product can be customized according to the specific requirements of users.
