Product Details:
|
| Typical Application: | High Precision, High Hygiene Occasions | Item No.: | NYRD900-1 |
|---|---|---|---|
| Frequency: | 76GHz~81GHz | Range: | 0.08~150m |
| Signal Output: | 4-20mA/HART/RS485/Modbus... | The Process Temperature: | -40~130℃,-40~260℃(≥260℃customizable) |
| Process Pressure: | -0.1~2.0Mpa | Protection Grade: | IP65、IP67、IP68（optional） |
| High Light: | High Temperature Radar Level Meter 80G,Gas Steam Radar Level Transmitter,Radar Level Meter 81GHz |
||

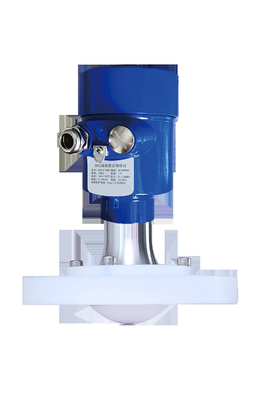

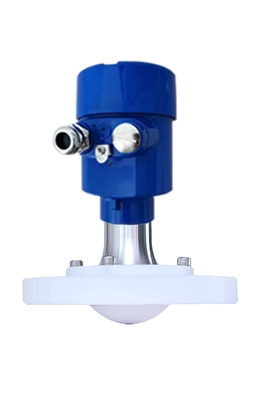

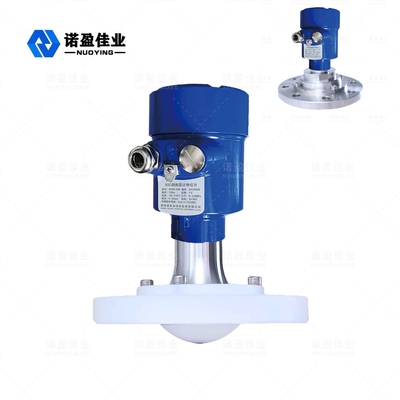

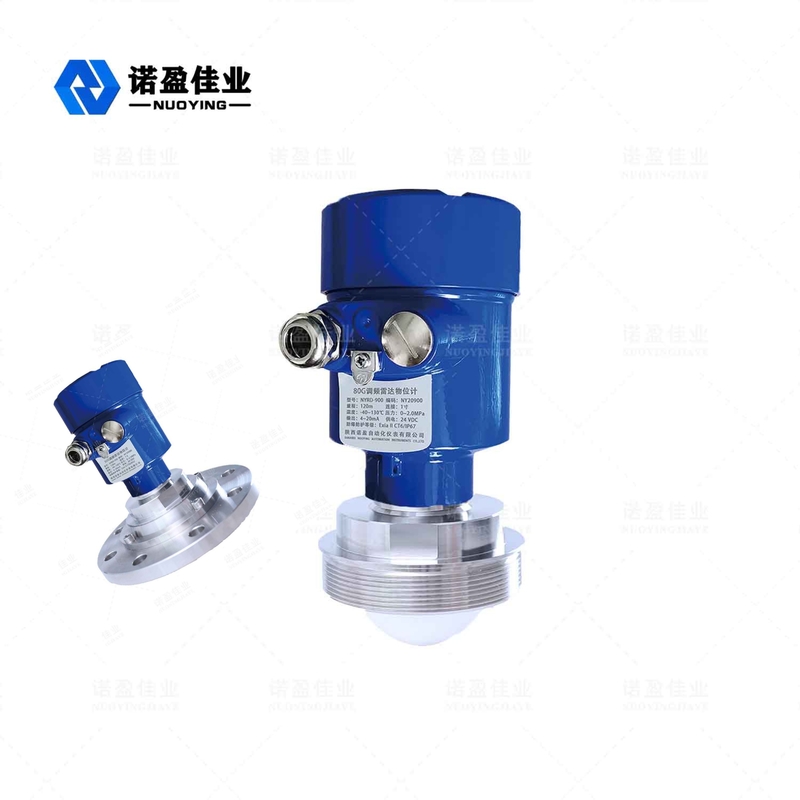

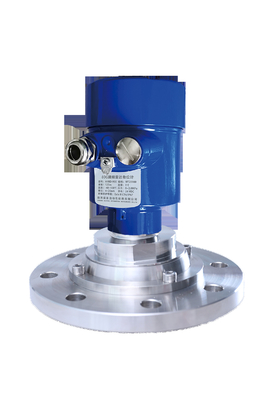

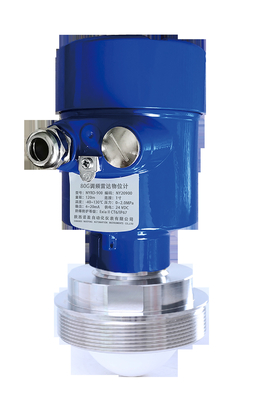

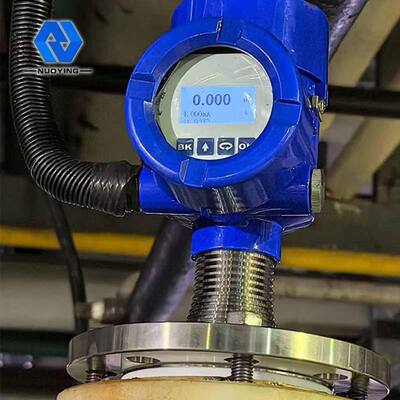

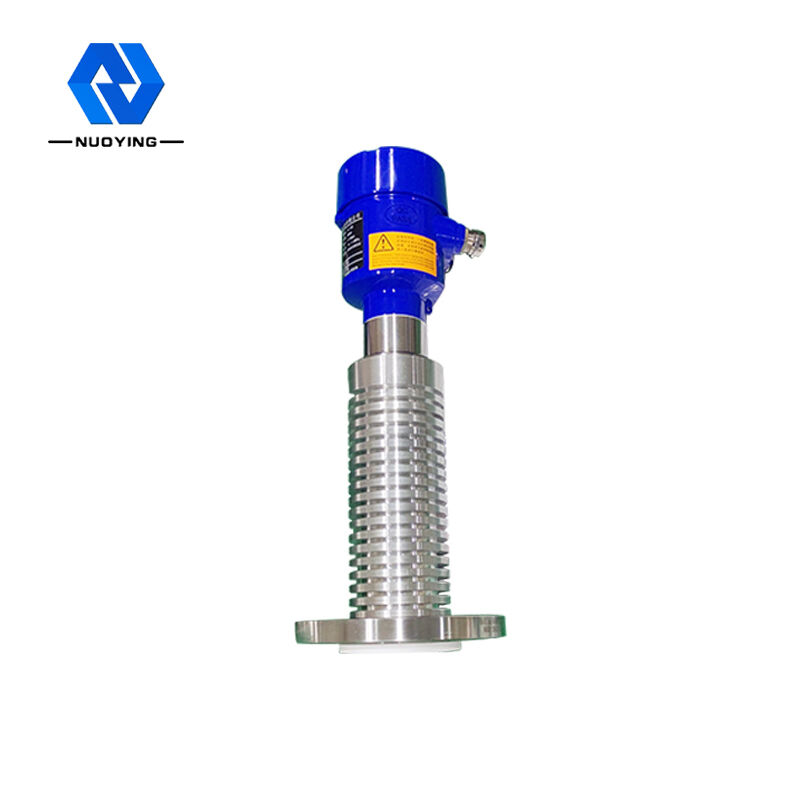

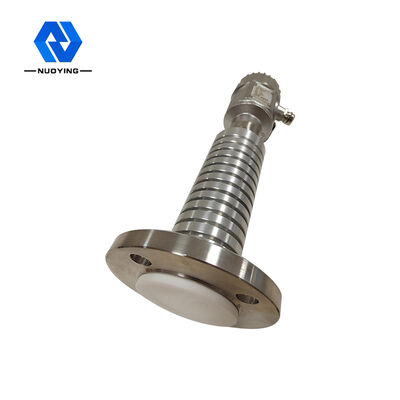

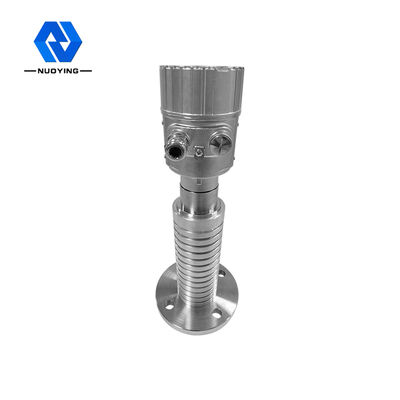

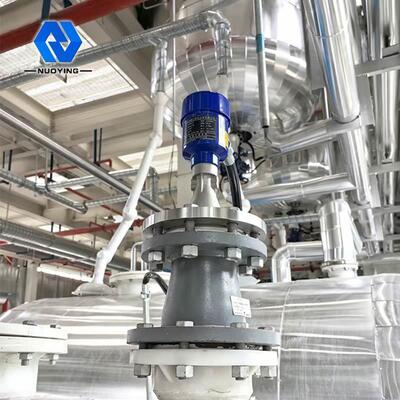

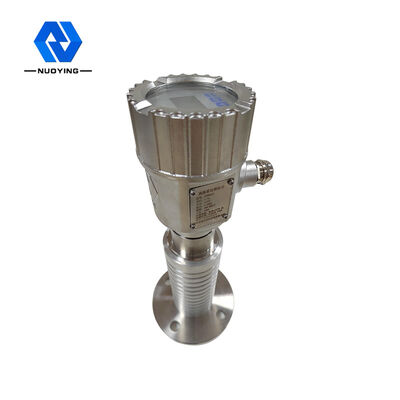

Measuring High Temperature Gas Steam 80G Radar Level Meter 76GHz~81GHz 0.08~150m
Working principle
NYRD900 FM wave FMCW radar products < also calls the millimeter wave radar), as a result of what use is higher than Ku band radar frequency millimeter wave band, the remote target detection, strong smoke dust environment, remote imaging, the respect such as multi-spectral imaging have important applications, and can detect more than microwave radar small goal and achieve a more accurate positioning, It has higher resolution and stronger security.
Dsign feature
♦Large range, small blind area. The maximum range can reach 120m, and the speech area can reach 8cm.
♦Small beam Angle, small antenna size, easy to install. It is little affected by the size of the nozzle and the interference of the barrier.
♦The wavelength is shorter, and the reflection on the surface of the body is better, so there is no special need to use the universal flange for aiming.
♦Supports remote debugging and remote upgrade, facilitating on-site maintenance.
♦As the 80GHz band radar used in the field of industrial measurement, high precision, non-contact level and liquid level measurement, with other common microwave pulse radar, guided wave radar incomparable advantages, extremely narrow beam and penetration ability, can adapt to the ultra-complex working conditions, without weakening the measurement performance.
Technical parameter
| Application | Electromagnetic wave emission angle is less than 3°,suitable for narrow space or guided wave tube measurement |
| Suitable for large storage tolerance(150m)and small cylinder storage “small blind area” | |
| High precision,high hygiene level and other places of measurement | |
| The process conditions are complex(stirring,heating rod,ladder,floating roof,strong dust,strong steam,etc.) | |
| Item number | NYRD900 |
| Transmission frequency | 76GHz~81GHz,FM scan frequency width 5GHz |
| Antenna form | Lens antenna, anti-corrosion lens antenna |
| The antenna material | PTFE,304+PTFE |
| Measuring range | 0.08~150m |
| Accuracy of measurement | 0.05%~0.1%F.S |
| Power supply | 24VDC,220VAC |
| Signal output | 4-20mA/HART/RS485/Modbus... |
| The process temperature | -40~130℃,-40~260℃(≥260℃customizable) |
| Process pressure | -0.1~2.0Mpa |
| Process connection | Thread, bracket, flange, sanitary clamp (optional) |
| Protection grade | IP65,IP67,IP68(optional) |
| Explosion-proof grade | ExiaIICT6 Ga,ExdIICT6 Gb(As shown in the certificate) |
If you have any other further questions, please contact us. We will process your requests as soon as possible.
