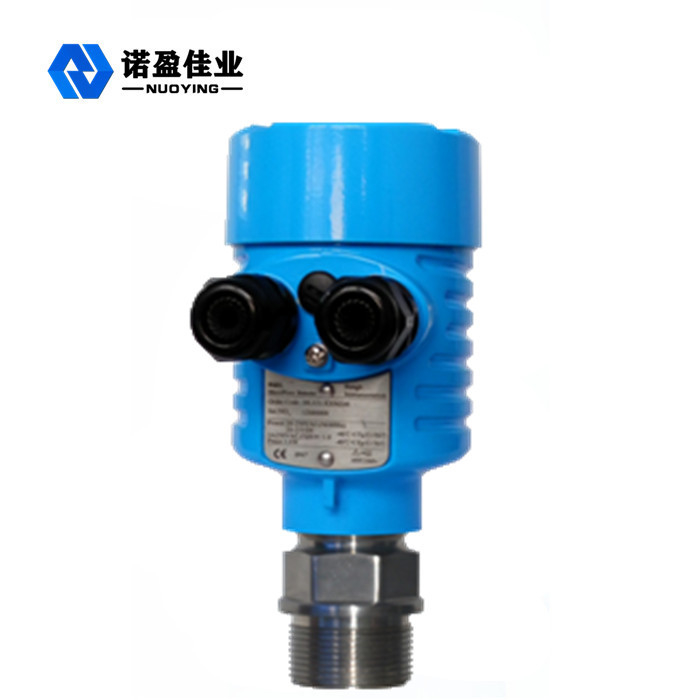

Power Supply Microwave Level Switch Intelligent Adaptive 2.5MPa

Power Supply Microwave Level Switch Intelligent Adaptive 2.5MPa
Power Supply Microwave Level Switch Intelligent Adaptive 2.5MPa Power Supply Microwave Level Switch Intelligent Adaptive 2.5MPa

Large Image :  Power Supply Microwave Level Switch Intelligent Adaptive 2.5MPa

Product Details:
Place of Origin: Xi'an, Shaanxi,China
Brand Name: NUOYINGJIAYE
Certification: CE
Model Number: NYWBUK
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: $400~$500/pc
Packaging Details: Carton, 60cm×30cm×30cm
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 1000 pcs/month

Power Supply Microwave Level Switch Intelligent Adaptive 2.5MPa

Description
Typical Application: Liquid, Dust, Solid And Other Occasions Where Holes Cannot Be Opened Due To Special Requirements Product Models: NYWBUK
Measuring Range: 120m Power Supply: 24VDC,220VAC
Ambient Temperature: -40~+80℃ Process Temperature: -40~1200℃
Process Pressure: -0.1~2.5Mpa Process Connection: Screw Thread
High Light:

Intelligent Adaptive Microwave Level Switch 120m

,

2.5MPa Microwave Level Switch

,

Tuning Fork Microwave Level Sensor

Design Of Intelligent Adaptive Power Supply Microwave Level Switch



Working Principle of Microwave Level Switch

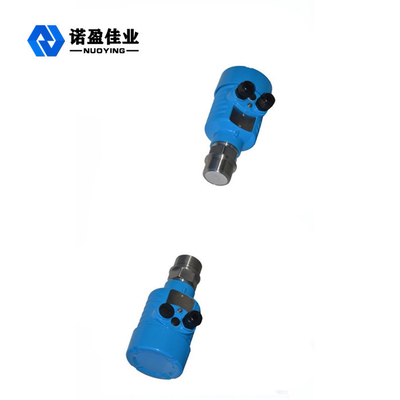

NYWBUK series microwave level switch is a solid level switch designed by microwave paired transmission and reception based on the principle of microwave extremely narrow pulse detection. The microwave level switch is a matched set of instruments, and one end is the sending end, which is responsible for sending the microwave signal; The other end is the receiving end, which is responsible for the collection and output of microwave signals. The instruments are installed in pairs at the positions to be monitored. When there is no material blockage at the monitoring position, the receiving end outputs a "no material" signal; When the monitoring position is blocked, the receiving end outputs a "blocked" signal. The status of output signal can be set as high alarm and low alarm on site.


Design feature of Microwave Level Switch



◎ high stability, strong anti-interference ability, intelligent adaptive power supply design

◎ the modular design concept is adopted, and the function indicator is equipped, which can easily and concisely realize the setting and maintenance of the instrument on the site

◎ simple structure and convenient installation



Technical parameters of Microwave Level Switch



Typical application Liquid, dust, solid and other occasions where holes cannot be opened due to special requirements

product model

NYWBUK
measuring range 120m
Power Supply 24VDC,220VAC
ambient temperature -40~+80℃
Process Temperature -40~1200℃
Process pressure -0.1~2.5Mpa
Process Connection screw thread(selectable)
levels of protection IP67
Explosion-proof grade Exia II CT6 Ga(See certificate for details)


※Note:The product can be customized according to the specific requirements of users.
