Product Details:
|
| Typical Application: | High And Low Alarm For Liquid, Dust And Other Medium | Product Models: | NYYCUK-A |
|---|---|---|---|
| Fork Length: | 44mm，100mm（can Be Customized） | Power Supply: | 24VDC，220VAC |
| Signal Output: | DPDT Relay Output | Process Temperature: | -40~+80℃，-40~+130℃，-40~+220℃ |
| Process Pressure: | -0.1~2.0MPa | Process Connection: | Screw Thread、clamp、flange（selectable） |
| High Light: | High Alarm Tuning Fork Level Switch,Liquid Tuning Fork Level Switch,Dust Tuning Fork Level Sensor 100mm |
||

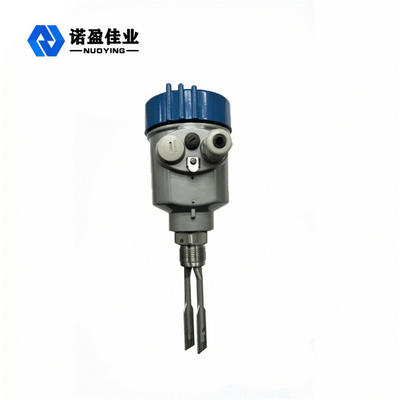

Long Service Life Tuning Fork Level Switch Used For Liquid Dust
Working Principle of Tuning Fork Level Switch
NYYCUK tuning fork level switch is a general-purpose liquid level limit switch. The tuning fork is excited by the piezoelectric crystal to generate vibration. When the tuning fork is immersed in liquid or solid, the vibration frequency changes, and the frequency change is detected by the electronic circuit as a switch. The tuning fork type liquid level limit switch is not affected by the dielectric constant, turbulence, agitation, air bubbles, vibration and other factors, and has no moving parts, so no maintenance and adjustment are required. It is an ideal choice for liquid level switches under complex working conditions. The smart chip can be used as an oil-water interface switch.
Design feature of Tuning Fork Level Switch
◎ Suitable for measuring free-flowing, medium-density solid powders or granules. Also suitable for almost all liquid media, this series of tuning fork level switches can measure a variety of levels, with high/low fail-safe limit switches, overflow or dry running protection, pump control, display pipeline with/without flow, etc. Function.

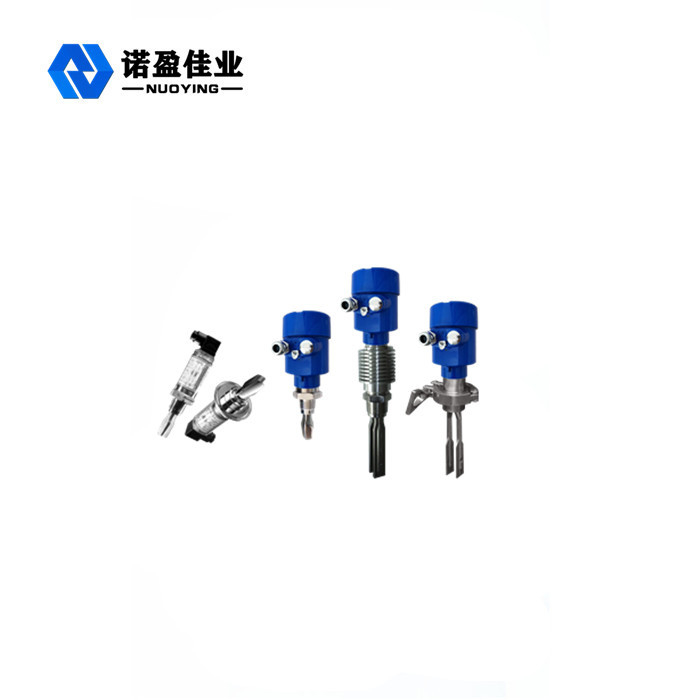

◎It is not affected by foam, eddy current and gas, and is suitable for fixed-point alarm or control of solid material level in various silos and liquid level in various containers. Various models are available for different applications
◎ long service life, stable performance, Safe and reliable,
◎ Strong adaptability—different electrical parameters and densities of the material to be tested will not affect the measurement. Harsh conditions such as scaling, agitation, turbulence, bubbles, vibration, medium viscosity, high temperature, and high pressure have no effect on detection.
◎ no need adjustment: it is not affected by the dielectric constant and density of the measured medium, so no matter what liquid is measured, it does not need to be adjusted on site.
◎maintenance free: the detection process of the tuning fork switch is completed by the electronic circuit. There are no moving parts. Once it is installed and put into operation, it does not need to be adjusted on site.
Technical parameters of Tuning Fork Level Switch
| Typical application | High and low alarm for liquid, dust and other medium |
|
product model |
NYYCUK-A |
| Fork length | 44mm,100mm(can be customized) |
| Power Supply | 24VDC,220VAC |
|
signal output |
DPDT relay output |
| Process temperature | -40~+80℃,-40~+130℃,-40~+220℃ |
| Process pressure | -0.1~2.0MPa |
| Process connection | screw thread,clamp,flange(selectable) |
| levels of protection | IP67 |
| Explosion-proof grade | Exia II CT6 Ga,Exib II CT6 Gb(See certificate for details) |
※Note:The product can be customized according to the specific requirements of users.
