Product Details:
|
| Typical Application: | High And Low Alarm For Liquid | Product Models: | NYYCUK-B |
|---|---|---|---|
| Fork Length: | 44mm | Power Supply: | 24VDC/220VAC |
| Signal Output: | DPDT Output | Process Temperature: | -40~+ 80℃ |
| Process Pressure: | -0.1~ 2.0MPa | Process Connection: | Flange（optional） |
| High Light: | Flange Tuning Fork Level Switch,DPDT Output Tuning Fork Level Sensor,24VDC Tuning Fork Switch |
||

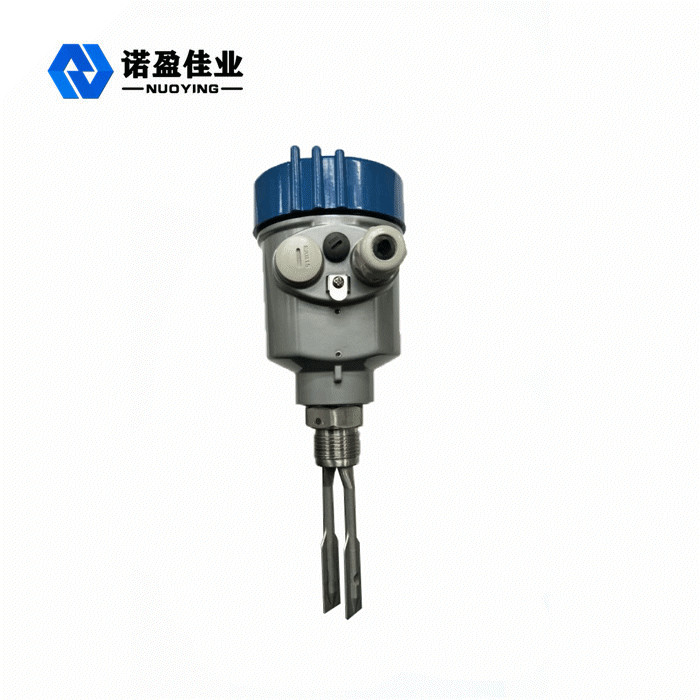

Strong Adaptability Tuning Fork Level Switch Maintenance Free
Working Principle of Tuning Fork Level Switch
NYYCUK tuning fork level switch is a universal level limit switch. The tuning fork is excited by a piezoelectric crystal to vibrate. When the tuning fork is immersed in a liquid or solid, the vibration frequency changes. This frequency change is detected by an electronic circuit. Tuning fork level limit switch is not affected by dielectric constant, turbulence, agitation, bubbles, vibration and other factors, no moving parts, so no maintenance and adjustment, is the ideal choice for level switch under complex working conditions, the application of the latest intelligent chip can be used as oil-water interface switch.
Design feature of Tuning Fork Level Switch
◎ suitable for measuring medium density solid powder or particles that can flow freely. It is also applicable to almost all liquid media. This series of tuning fork level switches can measure a variety of levels, with functions such as high / low fault safety limit switches, overflow or idling protection, pump control, and display of whether there is flow in the pipeline.
◎ strong adaptability - different electrical parameters and densities of the tested materials do not affect the measurement. Incrustation, agitation, turbulence, bubbles, vibration, medium viscosity, high temperature, high pressure and other adverse conditions also have no impact on the detection.
◎ no need adjustment: it is not affected by the dielectric constant and density of the measured medium, so no matter what liquid is measured, it does not need to be adjusted on site.
◎maintenance free: the detection process of the tuning fork switch is completed by the electronic circuit. There are no moving parts. Once it is installed and put into operation, it does not need to be adjusted on site.

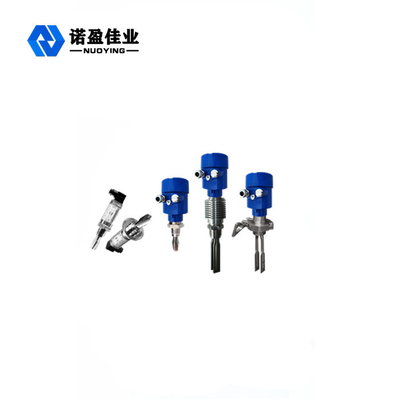

◎ it is not affected by foam, eddy current and gas, and is suitable for fixed-point alarm or control of solid material level in various silos and liquid level in various containers. A variety of models can be suitable for different applications.
◎ long service life, stable performance, Safe and reliable,
Technical parameters of Tuning Fork Level Switch
| Typical application | High and low alarm for liquid, dust and other media |
|
product model |
NYYCUK-B |
| Fork length | 44mm(can be customized) |
| Power Supply | 24VDC, 220VAC |
|
signal output |
DPDT relay output |
| Process temperature | -40~+80℃ |
| Process pressure | -0.1~2.0 MPa |
| Process connection | flange(selectable) |
| levels of protection | IP67 |
| Explosion-proof grade | Exia II CT6 Ga,Exib II CT6 Gb(See certificate for details) |
※Note:The product can be customized according to the specific requirements of users.
