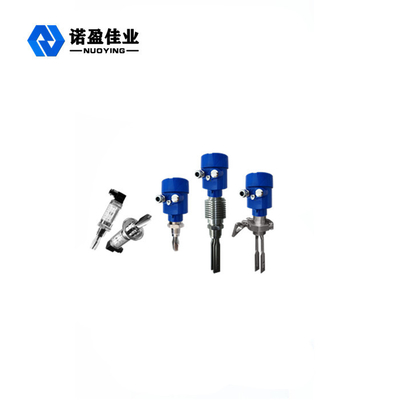

44mm Tuning Fork Level Switch For Measuring Solid Powder / Particles

Certification
China Xi 'an West Control Internet Of Things Technology Co., Ltd. certification
China Xi 'an West Control Internet Of Things Technology Co., Ltd. certification
I'm Online Chat Now

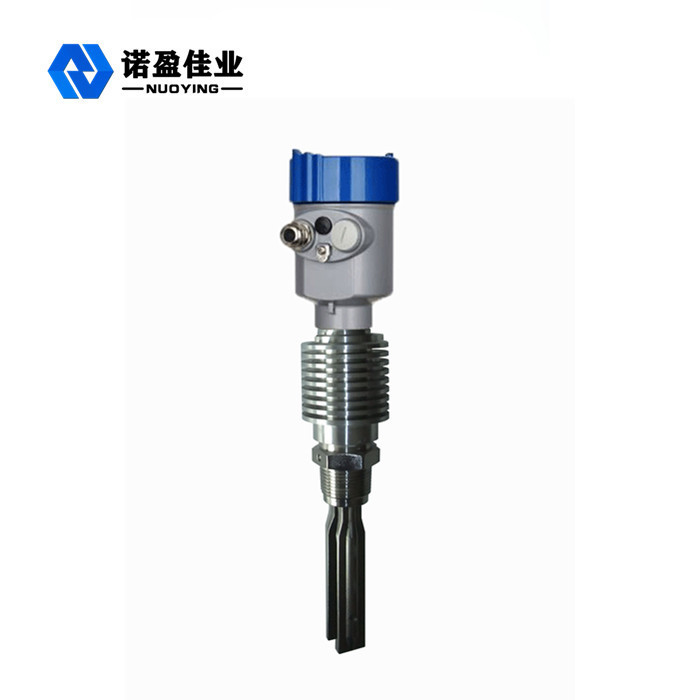

44mm Tuning Fork Level Switch For Measuring Solid Powder / Particles

44mm Tuning Fork Level Switch For Measuring Solid Powder / Particles
44mm Tuning Fork Level Switch For Measuring Solid Powder / Particles 44mm Tuning Fork Level Switch For Measuring Solid Powder / Particles

Large Image :  44mm Tuning Fork Level Switch For Measuring Solid Powder / Particles

Product Details:
Place of Origin: Xi'an, Shaanxi,China
Brand Name: NUOYINGJIAYE
Certification: CE
Model Number: NYYCUK-C
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: $400~$500/pc
Packaging Details: Carton, 60cm×30cm×30cm
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 1000 pcs/month

44mm Tuning Fork Level Switch For Measuring Solid Powder / Particles

Description
Typical Application: High And Low Alarm Product Models: NYYCUK-C
Fork Length: 44mm(can Be Customized) Power Supply: 24VDC
Signal Output: DPDT Process Temperature: -40~ +80℃
Process Pressure: -0.1~ 2.0 MPa Process Connection: Screw Thread(optional)
High Light:

Solid Powder Tuning Fork Level Switch

,

44mm Tuning Fork Level Sensor

,

Particles Tuning Fork Level Transmitter

Tuning Fork Level Switch Suitable For Measuring Medium Density Solid Powder Or Particles



Working Principle of Tuning Fork Level Switch



The tuning fork level switch is widely used for limit monitoring of liquid medium such as tap water, mineral water, gasoline, diesel, paper pulp, glue, wastewater, dye, acid-base solution, beer, beverage, etc., and also for limit monitoring of solid powder and solid small particles with good flow.



This frequency change is detected by the electronic circuit as a switching value. The tuning fork type liquid level limit switch is not affected by the dielectric constant, turbulence, agitation, bubbles, vibration and other factors, and has no moving parts. Therefore, it does not need maintenance and adjustment. It is an ideal choice for liquid level switches under complex working conditions. The latest intelligent chip can be used as an oil-water interface switch.


Design feature of Tuning Fork Level Switch



◎ no need adjustment: it is not affected by the dielectric constant and density of measured media, so no matter what liquid is measured, it does not need to be adjusted on site.

◎maintenance free: the detection process of the switch is completed by the electronic circuit. There are no moving parts. Once it is installed and put into operation, it does not need to be adjusted.

◎ suitable for measuring media density of solid powder or particles that can flow freely. It is also applicable to almost all liquid media. This series of tuning fork level switches can measure a variety of levels, with functions such as high / low fault safety limit switches, overflow or idling protection, pump control, and display of whether there is flow in the pipeline.

◎ strong adaptability - different electrical parameters and densities of the tested materials do not affect the measurement. Incrustation, agitation, turbulence, bubbles, vibration, medium viscosity, high temperature, high pressure and other adverse conditions also have no impact on the detection.

◎ it is not affected by eddy current and gas, foam,  and is suitable for fixed-point alarm or control of solid material level in various silos and liquid level in various containers. A variety of models can be suitable for different applications.

◎ long service life, stable performance, Safe and reliable,



Technical parameters of Tuning Fork Level Switch



Typical application  liquid, dust and other media

product model

NYYCUK-C
Fork length 100mm
Power Supply 220VAC

signal output

DPDT relay output
Process temperature -40~+220℃
Process pressure -0.1~2.0 MPa
Process connection screw thread(selectable)
levels of protection IP67
Explosion-proof grade Exia II CT6 Ga,Exib II CT6 Gb(See certificate for details)



※Note:The product can be customized according to the specific requirements of users.
