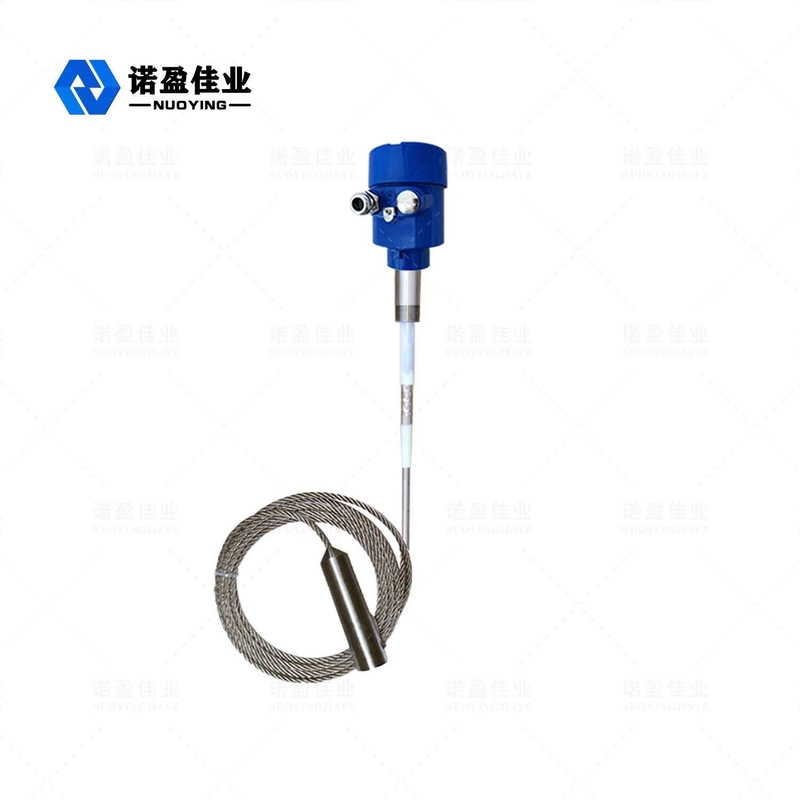

500mm Removable Probe RF Admittance Level Switch Anti Adhesion

500mm Removable Probe RF Admittance Level Switch Anti Adhesion
500mm Removable Probe RF Admittance Level Switch Anti Adhesion

Large Image :  500mm Removable Probe RF Admittance Level Switch Anti Adhesion

Product Details:
Place of Origin: Xi'an, Shaanxi,China
Brand Name: NUOYINGJIAYE
Certification: CE
Model Number: NYSP-UK861
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: $200~$300/pc
Packaging Details: Carton, 60cm×30cm×30cm
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 1000 pcs/month

500mm Removable Probe RF Admittance Level Switch Anti Adhesion

Description
Typical Application: High And Low Alarm For Liquid, Dust, Particles, Solids And Other Media Product Models: NYSP-UK861
Probe Rod Form: Cable Type, Pole Type And Flat Type Probe Rod Material: 500mm(The Length Can Be Customized According To The Site Conditions)
Signal Output: Double Pole Double Throw Relay (DPDT) Output, 5A 24VDC Or 5A 220VAC Process Temperature: -40~+130℃,-184~+260℃,>260℃Select Ceramic High Temperature Probe
Time Delay: 0-30s Adjustable Power Loss Protection: Normally Open, Normally Closed, Field Switchable
High Light:

Removable Probe RF Admittance Level Switc

,

Anti Adhesion RF Admittance Level Sensor

,

500mm RF Admittance Type Level Switch

Removable Probe RF Admittance Switch Anti Adhesion



Working Principle of RF Admittance Switch



The tuning fork type liquid level limit switch is not affected by the dielectric constant, turbulence, agitation, bubbles, vibration and other factors, and has no moving parts.When the tuning fork is immersed in liquid or solid, the vibration frequency changes. This frequency change is detected by the electronic circuit as a switching value. Therefore, it does not need maintenance and adjustment. It is an ideal choice for liquid level switches under complex working conditions. The latest intelligent chip can be used as an oil-water interface switch.The tuning fork is excited by the piezoelectric crystal to generate vibration.


Design feature of RF Admittance Switch



◎ Strong versatility: it can be applied to the measurement of various conductive and non-conductive media, such as liquid, viscous substance, particle, powder and fly ash

◎anti adhesion: the patented anti adhesion circuit can eliminate false signals caused by material adhesion.

◎ detachable probe: there is no cable connection between the controller and the probe, and the controller can be removed, replaced and repaired at any time, without affecting the incoming and outgoing materials.

◎ High and low temperature resistance: suitable for the working environment of - 184 ℃ to 280 ℃, and ceramic probes suitable for higher temperatures can be provided.

◎ output form: double pole double throw relay signal output, and a status lamp displays the output status, with a delay function of 0 to 30 seconds

◎ intelligent diagnosis: after turn on, the instrument circuit automatically detects whether the working state is normal.



Technical parameters of RF Admittance Switch



Typical application High and low alarm for liquid, dust, particles, solids and other media
product model NYSP-UK861,NYSP-UK862,NYSP-UK863,NYSP-UK864,NYSP-UK865,NYSP-UK866
Probe rod form Cable type, pole type and flat type
Probe rod material 500mm(The length can be customized according to the site conditions)
Power Supply 24VDC,220VAC
Signal Output Double pole double throw relay (DPDT) output, 5A 24VDC or 5A 220VAC
Ambient Temperature -40~+80℃
Process Temperature -40~+130℃,-184~+260℃,>260℃Select ceramic high temperature probe
Process pressure -0.1~2.0MPa
Process connection screw thread,brackets,flange(selectable)
time delay 0-30s adjustable
Power loss protection Normally open, normally closed, field switchable
sensitivity 0.5pf~750pf
Fault alarm Upper or lower limit, adjustable on site
levels of protection IP67
Explosion-proof grade Exia II CT6 Ga,Exd II CT6 Gb(See certificate for details)



※Note:The product can be customized according to the specific requirements of users.
