Products

Home / Products / Radar Level Transmitter /

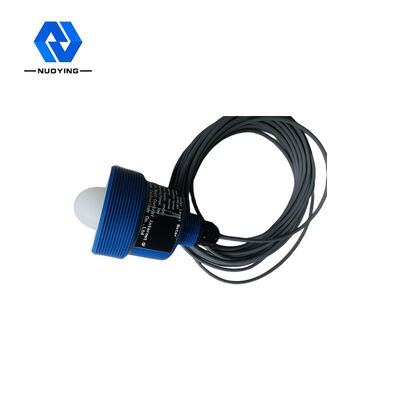

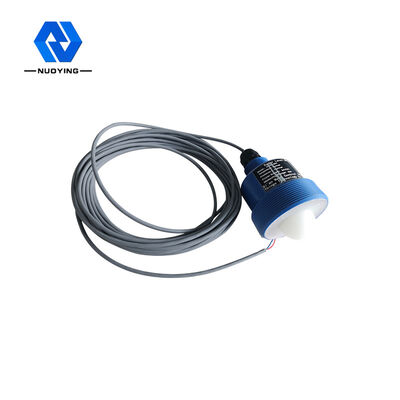

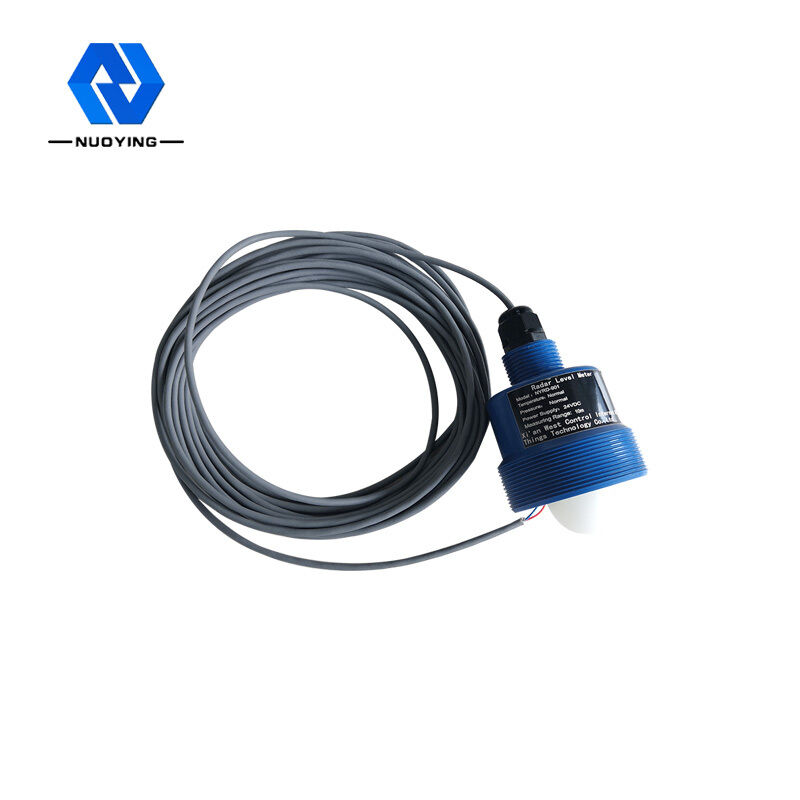

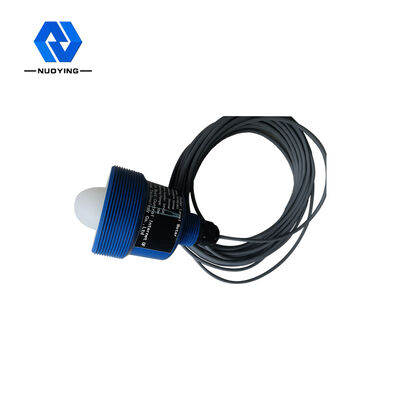

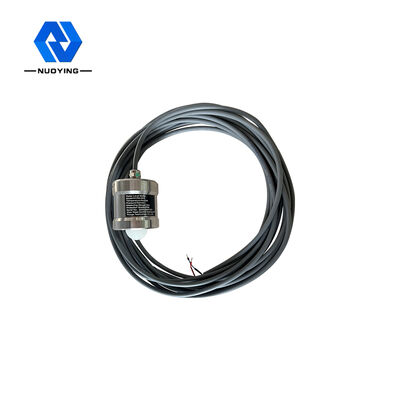

High Precision Radar Silo Liquid Water Tank Level Meter 500 - 2000mm

Name: High Precision Radar Silo Liquid Water Tank Level Meter 500 - 2000mm
Brand: Shaanxi Nuoying Automation Instrument Co., Ltd.
SKU: NYCFQ-UL、NYCFQ-UK
Price: 1,075.00 USD
Availability: InStock

Brand Name:	NUOYINGJIAYE
Model Number:	NYCFQ-UL、NYCFQ-UK
MOQ:	1 pcs
Price:	$450 to $1700 /pcs
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	1000 pcs/ pre month

Detail Information

Product Description

Detail Information

Place of Origin:

Xi'an, Shaanxi，China

Certification:

ExdⅡCT6/ExmbⅡCT6

Typical Application:

Liquid Level Measurement,etc.

Product Model:

NYCFQ-UL、NYCFQ-UK

Float Material:

F4、PP、304、PTFE(optional)

Rod Length:

200~6000mm(Can Be Customized)

Ambient Temperature:

-40~+80℃

Process Temperature:

-40~+130C

Process Pressure:

-0.1~2.0MPa

Process Connection:

Thread,flange(optional)

Packaging Details:

Carton, 60cm×30cm×30cm

Supply Ability:

1000 pcs/ pre month

Highlight:

Water Tank Radar Level Meter 200mm

Silo Radar Liquid Level Sensor

Thread Radar Water Tank Level Meter

Product Description

Rs485 modbus radar type water level sensor transmitter

NYRD-901 Radar Water Level Meter

The NYRD901 Frequency Modulation wave FMCW radar product (also known as millimeter wave radar) has important applications in remote target detection, remote imaging, multispectral imaging, etc. In the environment of strong smoke and dust, because it uses a millimeter wave band with a higher frequency than the Ku band radar. It can detect targets smaller than the microwave radar and achieve more accurate positioning, with higher resolution and stronger confidentiality.

NYRD-901 Radar Water Level Meter Technical Parameters

Typical application	water, liquids
Measuring range	5m, 10m, 15m, 20m
Power Supply	24VDC(22V~30V)
Signal output	4...20mA/RS485/Modbus..
Ambient temperature	-20℃~+70℃
Process pressure	-0.1~1.0Mpa
Connection method	Thread
Protection Grade	IP67

Notes: The products can be customized according to customers requirement!

NYRD-901 Radar Water Level Meter Certificate

High Precision Radar Silo Liquid Water Tank Level Meter 500 - 2000mm 0

NYRD-901 Radar Water Level Meter Working Condition

High Precision Radar Silo Liquid Water Tank Level Meter 500 - 2000mm 1
