| Brand Name: | NUOYINGJIAYE |
| Model Number: | NYRD900 |
| MOQ: | 1pcs |
| Price: | 300-800 |
| Payment Terms: | T/T |
| Supply Ability: | 600pcs per month |

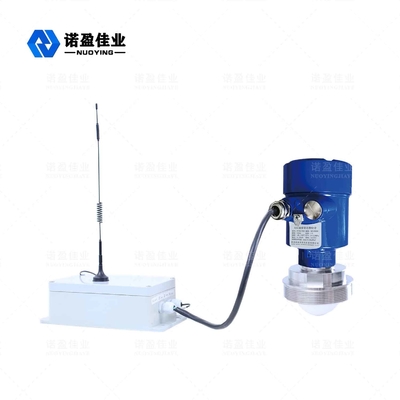

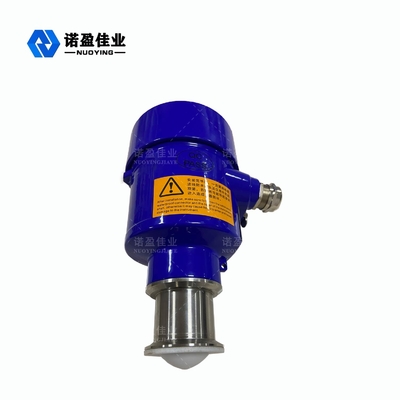

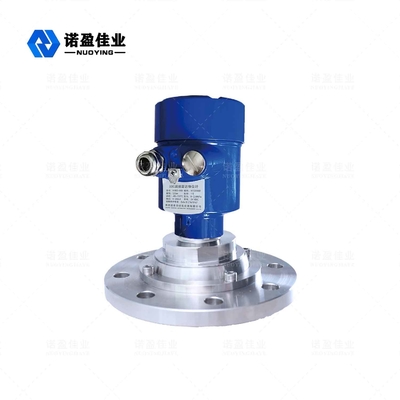

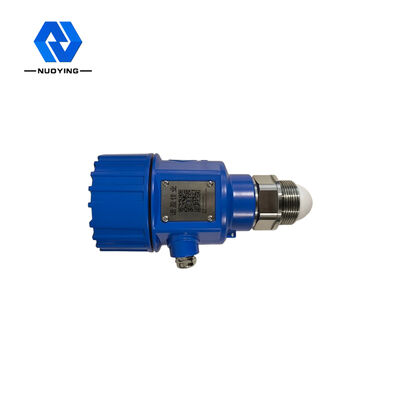

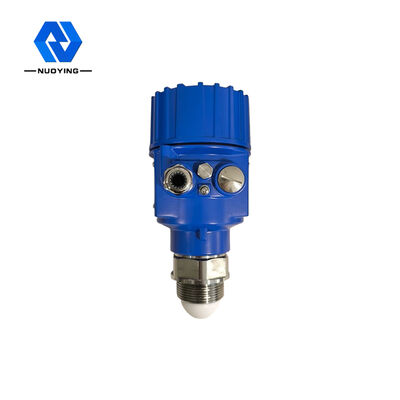

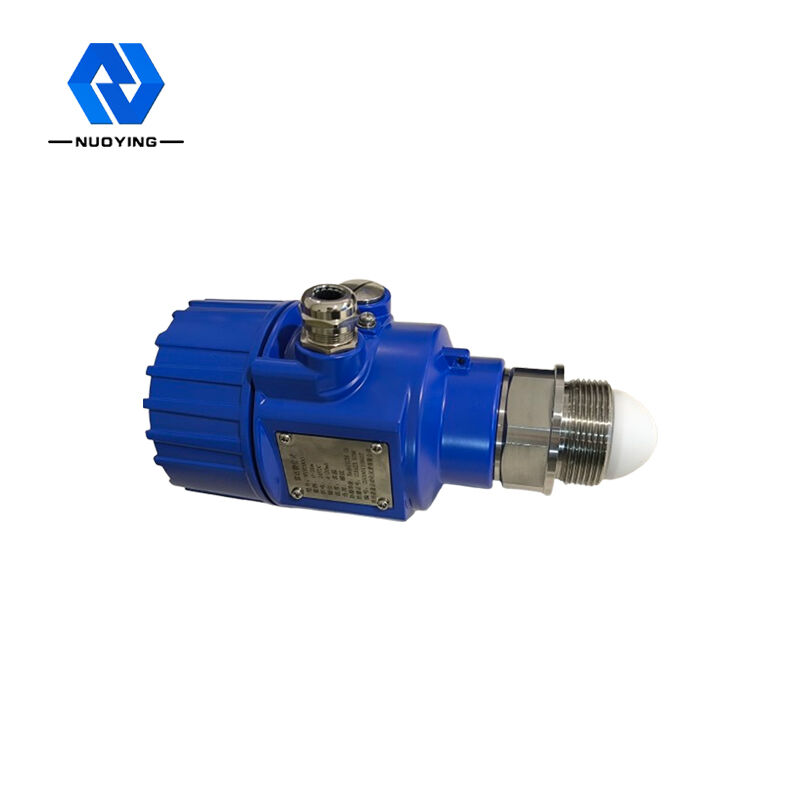

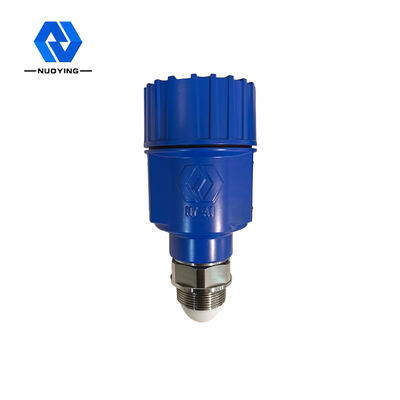

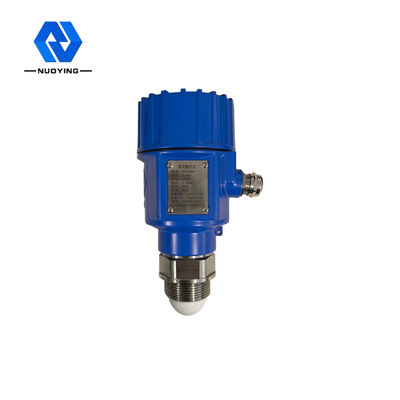

High Measurement Accuracy And Resolution Radar Level Meter For Multiple Complex Industrial Applicatons
High Frequency Penetrability 80G Radar Level Meter High Sanitary and Accuracy Operating Principle

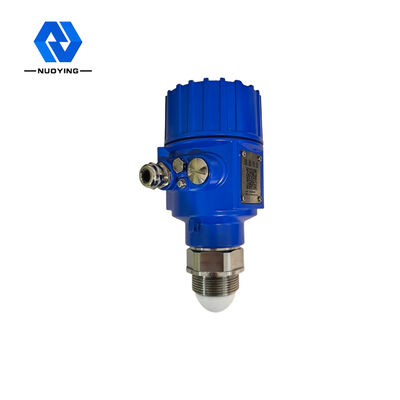

80GHz Radar Level Meter, NYRD900 frequency modulated continuous wave(FMCW) radar instrument (aka millimeter wave radar ) , by adopting millimeter wave range which is of higher frequency than Ku(12-18GHz) wave range, it can be applied in many important occasions of long distance target dectection/imaging, strong smock/dust environment and multispectral imaging. Further more, it can detect the small target that microwave radar can’t, and actualize to fix a position more accurately with higher resolution and stronger confidentiality.
| Typical Application |
Complex Process Application(Stiring, Heating Rod, Strong Dust/Steam) |
| Product Model |
NYRD900 |
| Antenna Type |
Anti Corrosion Antenna, Lens |
| Antenna Material |
304, PTFE |
| Measuring Range |
0.08m~150m |
| Measuring Accuracy |
0.05%~0.1% F.S |
| Process Temperature |
-40°C~+260°C( above 260 °C Customized) |
| Process Presure |
-0.1~2.0Mpa |
| Process Connection | Thread, Flange, Sanitary Bracket |
| Electrical Interface | M20 x 1.5, 1/2" NPT |
| Supply Power | 24VDC, 220VDC |
| Signal Output | 4-20 mA /HART/RS485/Modbus... |
| Protection Grade | IP67, IP68 (optional) |
| Explosion-proof Grade | Exia II CT6 Ga, Exd II CT6 Gb (details in certificate) |
