| Brand Name: | NUOYINGJIAYE |
| Model Number: | NYRD805 |
| MOQ: | 1pcs |
| Price: | 400-850 |
| Payment Terms: | T/T |
| Supply Ability: | 660 pcs per month |

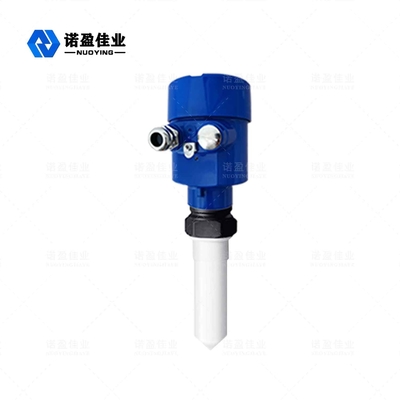

Compact Structure Easy to Install 26GHz Radar Level Meter Non Contact No Polution Industrial Applicatons
Anti-Corrosion 26GHz Radar Level Meter Not Affected By Foam Widely Adaptbility Operating Principle
Radar level meter NYRD80X serie sensors are 26GHz high-frequency radar type level measuring instruments, with a maximum measuring range of 80 meters. The antenna is further optimized, and the new fast microprocessor can perform signal analysis and processing at a higher rate, so that the instrument can be used for some complex measurement conditions such as reactor and solid silo.
26GHz Radar Level Meter Design Feature
◎ Small antenna size, easy to install; Non contact radar, no wear, no pollution.
◎ Almost free from corrosion and foam; It is not affected by the change of medium density, temperature and pressure. Also, strong dust environment has little impact on the operation of high-frequency level meter.
◎ Shorter wavelength, better reflection for inclined solid surface.
◎ Small beam angle and concentrated energy, which enhances the echo signal and helps to avoid interference.
◎ Smaller measurement blind area leads to better performance in small tank measurement.
◎ High signal-to-noise ratio, even in the case of fluctuations, it can perform better..
◎ High frequency, it is the best choice for measuring solid and low dielectric constant medium.
26GHz Radar Level Meter Product Parameter
| Typical Application |
Various liquids,dust,solids |
| Product Model | NYRD805 |

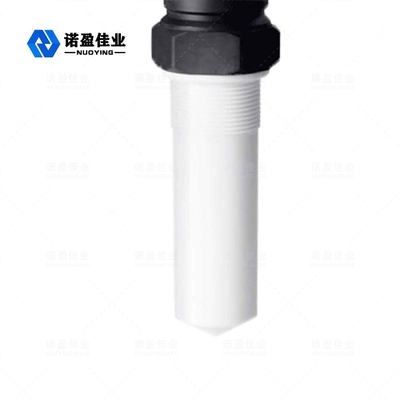

| Antenna TypeR | Hard Rod |
| Antenna Material | 304 (PTFE) |
| Measuring Range | 10m, 20m, 30m |
| Measuring Accuracy | 0.05%~0.1% F. S |
| Process Temperature | 40~+130 ℃, - 40~+150 ℃, - 40~+260 ℃(Customized) |
| Process Presure | 0.1~0.3MPa, - 0.1~2.0MPa, - 0.1~4.0MPa |

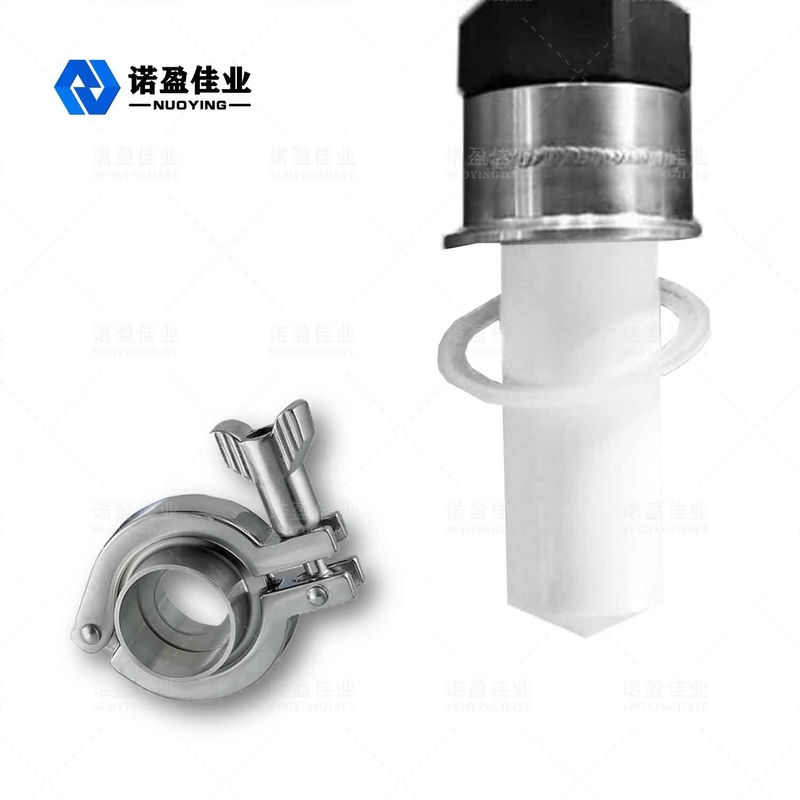

| Process Connection | thread, bracket, flange, sanitary clamp (optional) |
| Electrical Interface | M20 x 1.5, 1/2" NPT |
| Supply Power | 24VDC (two wire, four wire), 220VAC |
| Signal Output | 4-20 mA /HART/RS485/Modbus... |
| Protection Grade | IP67, IP68 (optional) |
| Explosion-proof Grade | Exia II CT6 Ga, Exd II CT6 Gb (details in certificate) |
