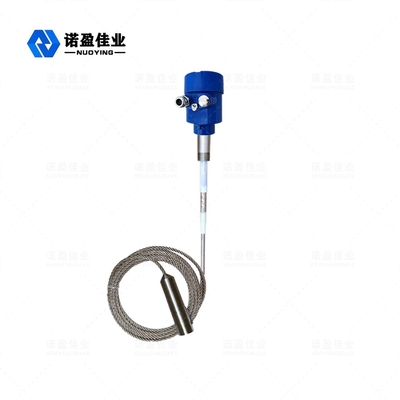

Industrial Universal Rf Admittance Switch Anti Adhesion

Strong Universality RF Admittance Switch Anti Adhesion Industrial Applicatons

High And Low Temperature Resistance 26GHz RF Admittance Switch By Foam Widely Removable probe Operating Principle

RF admittance level switch is based on RF capacitor technology. Probe head receives radio frequency . By continuous analysis, confirming the impact caused by the surrounding environment. Because materials have different dielectric constants, and their conductivity is different from air. the total impedance changes as well as capacitance shift does during contact. The energized probe and the vessel wall form two electrodes of the capacitor, so the insulator of the probe head and the surrounding air become dielectric materials. When the air (with a dielectric constant of 1.0) is replaced by any other material (with a dielectric constant>1), the capacitive efficiency will be strengthened. This changes the impedance of the application. The change of capacitance value causes the change of impedance. The circuit measures the effect, and then compares with the reference data established by the sensitivity setting.

The correct setting of RF admittance level switch sensitivity affects the correct change of sensor output. The Null -KoTeTM circuit of the probe can make the measuring circuit ignore the materials stacked on the probe, otherwise it will cause sensitivity failure. The Null-KoTeTM circuit is excited by the same radio frequency applied to the probe head. Since the current cann’t flow at the same circurt level, the Null-KoTeTM circuit blocks the current flow which is flowing from the energized probe

through stacked material to the vessel wall. In this case, RF admittance level switch can measure the correct level of the material.

RF Admittance Switch Design Feature

◎ Strong universality: it can be used for the measurement of various conductive and non-conductive media, such as liquids, viscous substances, particles, powders and fly ash.

◎ Anti adhesion: the patented anti adhesion circuit can eliminate the false signals caused by material adhesion.

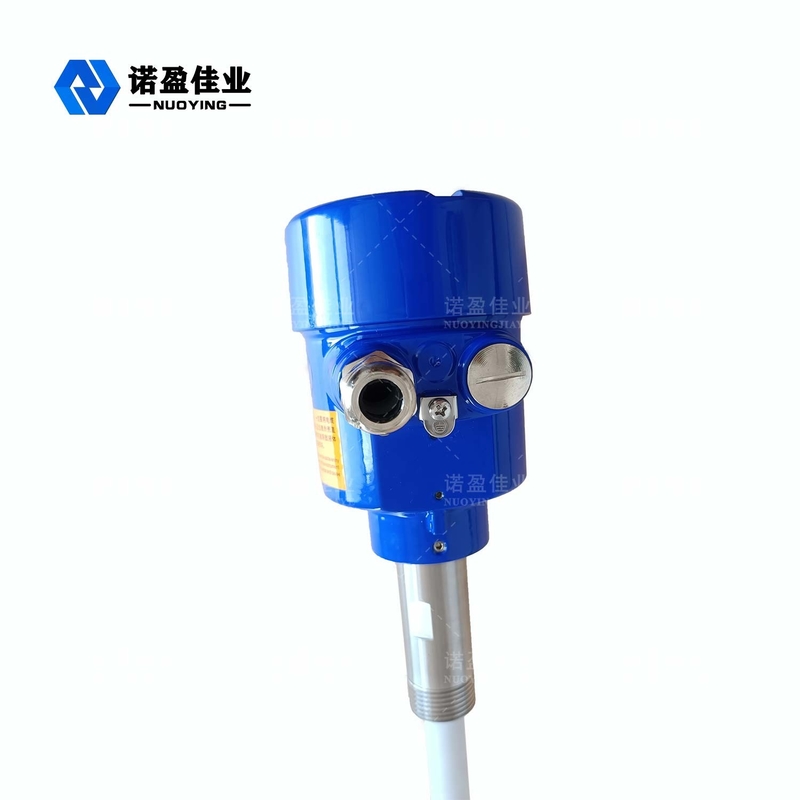

◎ Removable probe: there is no cable connection between the controller and the probe, so the controller can be removed, replaced and repaired at any time, without affecting the incoming and outgoing materials.

◎ High and low temperature resistance; Suitable for working environment from - 184 ℃ to 280 ℃, and ceramic probe suitable for higher temperature can also be provided:

Output form: double pole double throw relay signal output, with a status lamp to display the output status, and a 0 to 30 second delay function.

◎ Diagnosis: after power on, the instrument circuit automatically detects whether the working state is normal.

RF Admittance Switch Technical Parameter

RF Admittance Switch Product Application

Casting machinery: check the sand level;

Environmental water treatment: sewage level detection:

◎ Hydraulic machinery: check the lubricating oil level.

◎ Construction machinery: check the level of cement silo and mixing tank.

◎ Flour mill: check the level of flour and wheat grain.

◎ Feed factory; Detection of soybean meal level.

◎ Power plant: check the level of fly ash.

◎ Glass factory: check the level of quartz sand and cullet;

◎ Chemical plant; Detect the liquid level of polyester, spandex, acid, alkali and other chemical materials.

◎ Boiler factory: check the water level of steam drum and other pressure vessels.

◎ Other occasions: testing natural gas, fruit juice, tomato sauce, etc.
