Product Details:
|
| Typical Application: | Power And Small Particle Level Control. | Probe Material: | 304(optional) |
|---|---|---|---|
| Probe Length: | 100mm | Power Supply: | 24VDC, 220VAC |
| Electrocution Capacity: | 250V 8A (SPDT Single Blade Double Throw) | Process Connection: | Thread |
| Insulation Resistance: | ≥100MΩ(500VDC) | Protection Level: | IP67 |
| High Light: | 24VDC Rotating Paddle Level Sensor,NYZX-A Rotary Paddle Switch,Single Blade Rotating Paddle Level Switch |
||

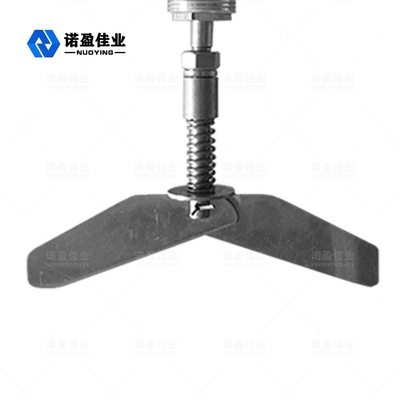

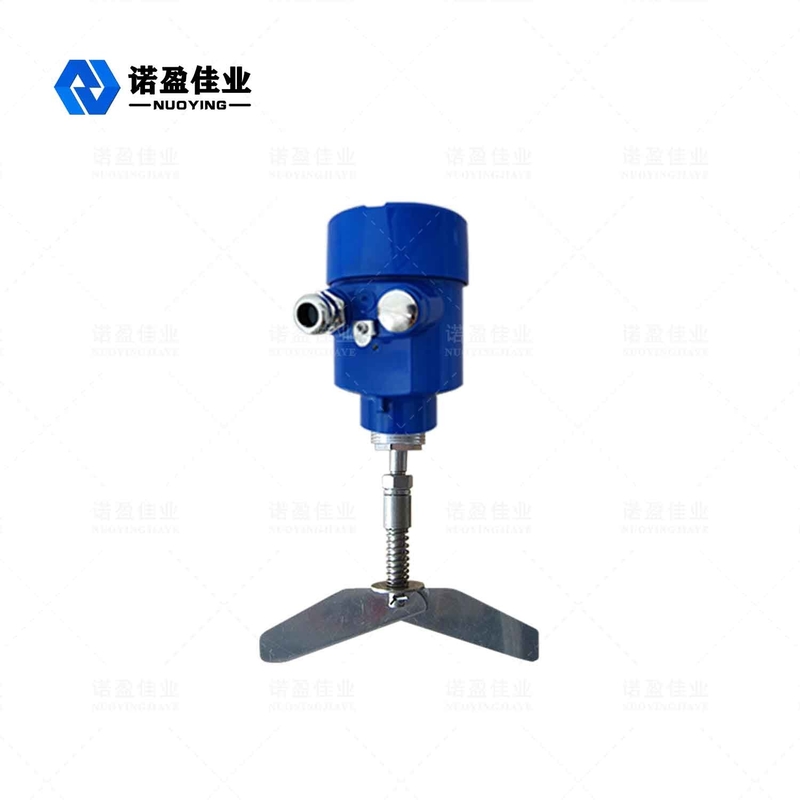

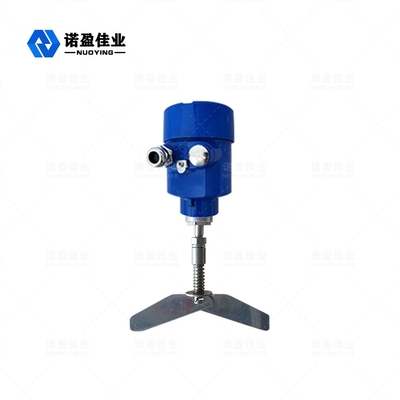

Discounted Folding 24VDC Powder NYZX-A Rotary Paddle Level Switch
NYZX-A Rotary Paddle Level Switch Working Principle
NYZX-series Rotary Paddle Level Switch is widely used in modern industry production line with warehouse section. It is used to monitor or control the level of powder and grain material in the open container and has many advantages of advanced technology, reasonable structure, reliable performance, easy maintenance, best cost performance etc., (take the high temperature type for example, its price is less than one third of imported product) compared with old products currently produced in domestic, is the first choice to substitute for imported one. The product is adopted a entirely new design of structure.
NYZX-A Rotary Paddle Level Switch Technical Parameters
| Typical application | Power and small particle level control. |
| Probe material | 304(optional) |
| Probe length | 100mm(Length can be customized according to site conditions) |
| Power supply | 24VDC, 220VAC |
| Process temperature | -40~+80℃(≥80℃ can be customized) |
| Process pressure | ordinary pressure |
| Process connection | Thread, flange (optional) |
| Electrocution capacity | 250V 8A (SPDT single blade double throw) |
| Insulation resistance | ≥100MΩ(500VDC) |
| Protection level | IP67 |
| Explosion-proof grade | Exia II CT6 |
NYZX-A Rotary Paddle Level Switch Design Feature
1. Integrated seal design can be used in harsh environments.
2. Unique oil seal design prevents dust from penetrating along the axis.
3. The torsion is stable and reliable.
4. The blade bears excessive load, and the rotating mechanism of the motor slips automatically to protect it from damage.
NYZX-A Rotary Paddle Level Switch Typical Application
NYZX series resistive level switches are installed in silos, cabinets, cellars, shafts, and can be applied to control the height of filling level as well as to control filling and emptying, and can also play a protective role to prevent overfilling. It is widely used in feed, silica, stone, spherical granules, wood chips, calcium powder, rubber, metal, malt, limestone, grain, foundry sand, sawdust, coal powder, etc. The NYZX series resistive level switch is the perfect combination of durability and sensitivity.
