Product Details:
|
| Typical Application: | Power And Small Particle | Probe Material: | 304(optional) |
|---|---|---|---|
| Process Pressure: | Ordinary Pressure | Process Connection: | Thread, Flange (optional) |
| Process Temperature: | -40~+80℃（≥80℃ Can Be Customized） | Explosion-proof Grade: | Exia II CT6 |
| Insulation Resistance: | ≥100MΩ(500VDC) | Probe Length: | 100mm(Length Can Be Customized According To Site Conditions) |
| High Light: | Thread Rotating Paddle Level Switch,NYZX-B Rotary Paddle Switch,Small Particle Rotary Paddle Level Sensor |
||

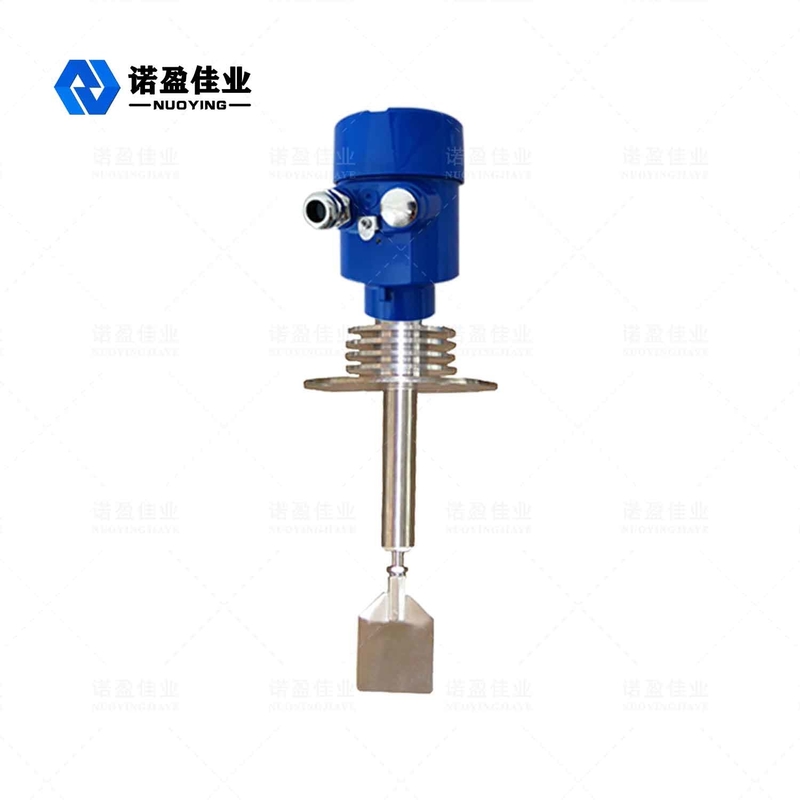

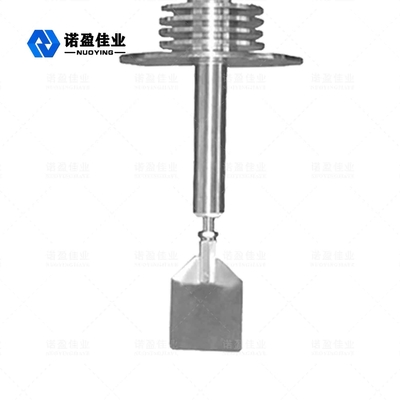

Small Particle NYZX-B Rotary Paddle Level Switch Connected with Thread
NYZX-B Rotary Paddle Level Switch Working Principle
NYRD series resistance spin level switch uses permanent magnet motor to drive the blades rotation, when the detected material rises to the blade position, the blade rotation is blocked, the resistance will be transmitted to the detection device in the junction box, the detection device will output a switch signal to the outside, and cut off the power to make the blade stop rotating.
NYZX-B Rotary Paddle Level Switch Technical Parameters
| Typical application | Power and small particle level control. |
| Probe material | 304(optional) |
| Probe length | 100mm(Length can be customized according to site conditions) |
| Power supply | 24VDC, 220VAC |
| Process temperature | -40~+80℃(≥80℃ can be customized) |
| Process pressure | ordinary pressure |
| Process connection | Thread, flange (optional) |
| Electrocution capacity | 250V 8A (SPDT single blade double throw) |
| Insulation resistance | ≥100MΩ(500VDC) |
| Protection level | IP67 |
| Explosion-proof grade | Exia II CT6 |
NYZX-B Rotary Paddle Level Switch Design Feature
1.It has the features of anti-rust, no pollution, anti-humid, anti-dust etc. Both in foodstuff equipment and heavy-dust likes environments can be used for its most part exposed are made of stainless steel or aluminum alloy.
2. It can affectedly avoid the damage of motor and decelerator made by misusage or non-normal outside force.
3. For apply to different specific weight of materials, user can choose any shape and specification of test board. In order to user’s convenient, the machine core is set five devices for adjusting sensing.
4. Model NYZX is adopted cooler part, so it can use in the material environment which is ≤300℃ (which can not be done by the capacitance, tuning fork ultrasonic level detecting device).
