Industrial Magnetostrictive Liquid Level Meter Top Mounted

Industrial Magnetostrictive Liquid Level Meter Top Mounted
Industrial Magnetostrictive Liquid Level Meter Top Mounted Industrial Magnetostrictive Liquid Level Meter Top Mounted Industrial Magnetostrictive Liquid Level Meter Top Mounted

Large Image :  Industrial Magnetostrictive Liquid Level Meter Top Mounted

Product Details:
Place of Origin: Xi'an, Shaanxi,China
Brand Name: NUOYINGJIAYE
Certification: CE
Model Number: NYCZ500
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 400-600
Packaging Details: Carton, 90cm×30cm×30cm (reference)
Delivery Time: 5-10 working days
Payment Terms: T/T
Supply Ability: 500pcs per month

Industrial Magnetostrictive Liquid Level Meter Top Mounted

Description
Typical Application: Liquid Product Model: NYCZ500
Installation Method: Top-Mounted Measuring Range: 0-50~5000mm (cable Type: 25m)
Measurement Accuracy: +0.5mm Process Temperature: - 40~+200 ℃ Ambient Temperature: - 40~+80 ℃ Temperature Influence: ± 0.5 ℃
Process Pressure: -0.1~+10.0MPa Connection: Thread, Flange, Bracket (optional)
High Light:

Industrial Magnetostrictive Level Meter

,

Top Mounted Magnetostrictive Liquid Level Meter

Wider Applicability Magnetostrictive Liquid Level Meter Strong Reliability Industrial Applicatons



Excellent Safety Magnetostrictive Liquid Level Meter Easy To Install And Maintain Operating Principle



As showing picture, magnetostrictive liquid level meter is formed from a measuring rod, an electronic chamber and a non-contact floating ball sleeved on the measuring rod.

Magnetostrictive wire (guided wave wire) is installed in the measuring rod. The measuring rod is made of non-magnetic stainless steel tube, which protects the guided wave wire. When the instrument is working, the pulse generator in the electronic chamber sends out a starting pulse which transmits through the wire, it generates a rotating magnetic field moving. When this magnetic field meets the permanent magnetic field in the float ball, it generates a magnetostrictive stretching effect, causing the guided wave wire to twist and generate a constant speed mechanical wave which transmits in two directions. The mechanical wave reaching the end of the measuring rod is absorbed by the damper. The mechanical wave transmitting back to the electronic chamber is sensed by the energy pickup device installed in the electronic chamber, and then converted into the corresponding current pulse. The energy pickup device calculates the time difference between the two pulses to give an accurate measurement of liquid level.

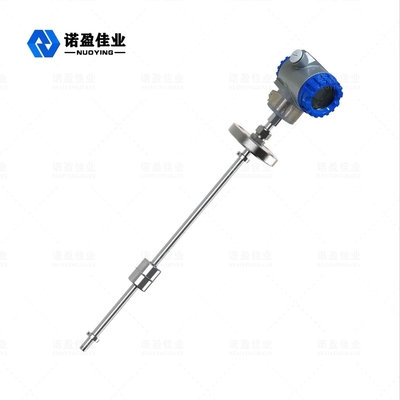

Industrial Magnetostrictive Liquid Level Meter Top Mounted 0

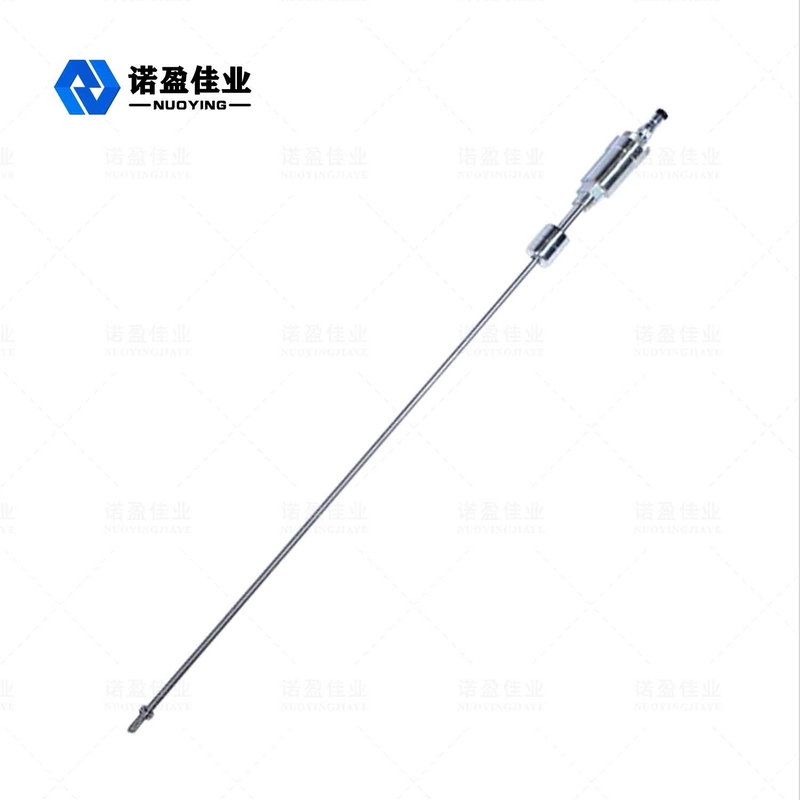

Industrial Magnetostrictive Liquid Level Meter Top Mounted 1



Magnetostrictive Liquid Level Meter Design Feature

◎ Wider applicability, with a variety of probe forms, process connection forms, and production materials, which can be customized.

◎ Strong reliability: since the magnetostrictive liquid level gauge adopts the waveguide principle. The whole converter is enclosed in a stainless steel tube, which is non-contact with the measuring medium. The sensor works reliably and has a long service life.

◎ High precision: because magnetostrictive liquid level gauge works with waveguide pulse, the measured displacement is determined by measuring the time of the starting pulse and the ending pulse during the work, so the measurement accuracy is high, and the resolution is better than 0.01% FS, which is an accuracy that is difficult to achieve with other sensors.

◎ Excellent safety: the magnetostrictive liquid level gauge has high explosion-proof performance, is intrinsically safe and safe to use, and is especially suitable for the measurement of chemical raw materials and flammable liquids. It is unnecessary to open the tank cover during measurement to avoid the insecurity of manual measurement.

◎ The magnetostrictive level gauge is easy to install and maintain: the magnetostrictive level gauge is generally installed through the existing pipe orifice on the tank top, especially suitable for the installation of underground storage tanks and storage tanks that have been put into operation, and can not affect the normal production during the installation process.



Magnetostrictive Liquid Level Meter Product Parameter





Typical Application liquid
Product Model NYCZ500
Probe Rod Material 304, 316 (optional)
Measuring Range 0-50~5000mm (cable type: 25m)
Measuring Accuracy +0.5mm
Process Temperature - 40~+200 ℃ Ambient temperature: - 40~+80 ℃ Temperature influence: ± 0.5 ℃
Response Time 0.2~5ms
Process Pressure - 0.1~+10.0MPa
Process Connection thread, flange, bracket (optional)
Electrical Interface M20 x 1.5, G3/4’’
Supply Power 24VDC, 220VAC(optional)
Signal Output 4... 20mA/HART/RS485
Display on-site LCD (optional)
Protection Grade IP65
Explosion-proof Grade Exia II CT6 (details in certificate)



Magnetostrictive Liquid Level Meter Product Application



Liquid level measurement and control in industrial field

Chemical process liquid level control Liquid level control of pharmaceutical tank

Water level monitoring of food and beverage tank control dam

Measurement and control of oil-water interface for drinking water and sewage treatment

Other liquid level measurement and control of metering management system in gas station

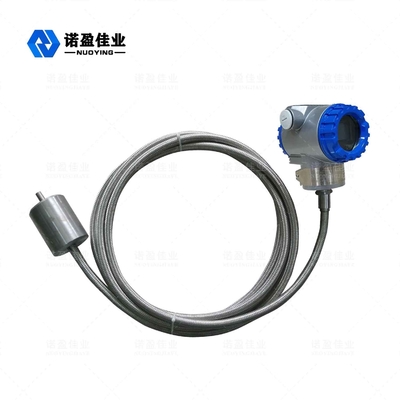

Industrial Magnetostrictive Liquid Level Meter Top Mounted 2

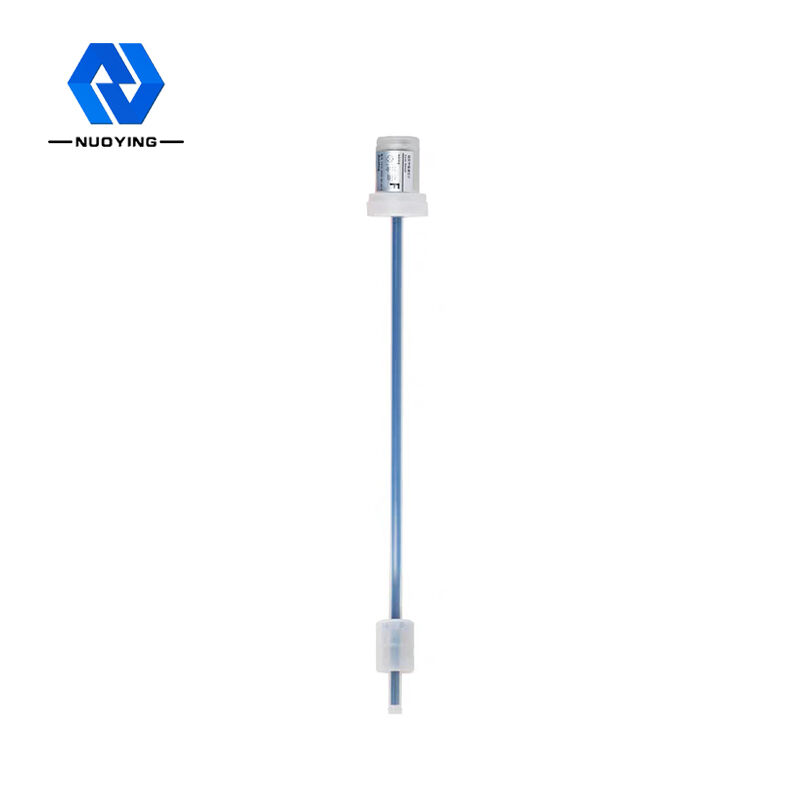

Industrial Magnetostrictive Liquid Level Meter Top Mounted 3
