Insertion Probe Plug In Electromagnetic Flow Meter 6.5W NYLL-CH

Insertion Probe Plug In Electromagnetic Flow Meter 6.5W NYLL-CH
Insertion Probe Plug In Electromagnetic Flow Meter 6.5W NYLL-CH Insertion Probe Plug In Electromagnetic Flow Meter 6.5W NYLL-CH Insertion Probe Plug In Electromagnetic Flow Meter 6.5W NYLL-CH

Large Image :  Insertion Probe Plug In Electromagnetic Flow Meter 6.5W NYLL-CH

Product Details:
Place of Origin: China
Brand Name: NUOYINGJIAYE
Certification: CE,ATEX,SIL
Model Number: NYLL-CH
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: $250~$1500/pcs
Packaging Details: Export standard packing
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 500 pcs/per month

Insertion Probe Plug In Electromagnetic Flow Meter 6.5W NYLL-CH

Description
Caliber: 300 - 3000 Mm Speed Range Of The Flow Rate: 0 . 1~10 M/ S
Electroconductibility: > 50μs/ Cm Medium Temperature: - 20℃ ~+ 130℃
Ambient Temperature: - 20℃ ~+ 60℃ Withstand Voltage: 1 . 6 Mpa
Levels Of Protection: IP 65, IP 68 Sensor Material: Stainless Steel
High Light:

Insertion Probe Electromagnetic Flow Meter

,

Electromagnetic Insertion Flow Meter

,

6.5W Electromagnetic Flow Meter

NYLL-CH 300-3000mm Insertion Probe Plug In Electromagnetic Flow Meter 6.5W





Slurry Cement Corrosive Liquid Water 4-20ma Plug-In Insertion Type Electromagnetic Insertion Flow Meter



NYLL-CR series intelligent electromagnetic flowmeter is a new generation of fully intelligent flowmeter developed by our company based on Faraday electromagnetic induction principle. Large measurement range, measurement is not affected by temperature, density, pressure, viscosity, conductivity and other changes;

Pressure loss is zero;The electromagnetic flowmeter can not only measure the volume flow of conductive liquid, but also measure the volume flow of corrosive liquid such as strong acid and alkali, and even liquid-solid twophase suspension liquid such as mud, pulp and pulp. Corrosion resistant all stainless steel ABS mold production probe simple structure, firm, no moving parts, long service life. It is widely used in the fields of petroleum, chemical industry, metallurgy, textile, pharmacy, food and beverage, paper making, electric power, urban water supply and drainage and environmental protection. High definition backlit LCD display, which can simultaneously display instantaneous flow, cumulative flow, flow percentage, flow rate, etc.



Plug-In Insertion Type Electromagnetic Insertion Flow Meter Technical Parameters



Caliber 300 - 3000 mm
Speed range of the flow rate 0 . 1~10 m/ s
Precision

0 . 5~10 m/ s:±1 . 5 % FS; 0 . 1~0 . 5 m/ s:±2 . 0 % FS

0 . 1~10 m/ s:±2 . 5 % FS(FS refers to 40% to 100% full range flow)

Electroconductibility > 50μs/ cm
Straight pipe section The anterior 5 DN, and the posterior 3 DN
Medium temperature - 20℃ ~+ 130℃
Ambient temperature - 20℃ ~+ 60℃
Withstand voltage 1 . 6 Mpa
Levels of protection IP 65, IP 68
Electrode material 316 L stainless steel
Output signal 4 - 20 m A;RS 485;HART protocol;MODBUS protocol
Sensor material stainless steel
Operational principle 220 VAC, tolerance15 % or 24 VDC, ripple wave≤5 %
Capacity factor 6.5W
Pressure resistance level ≤1.6 Mpa

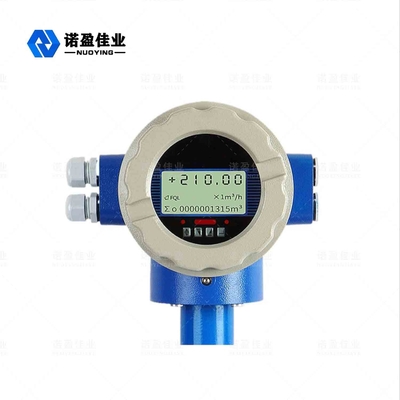

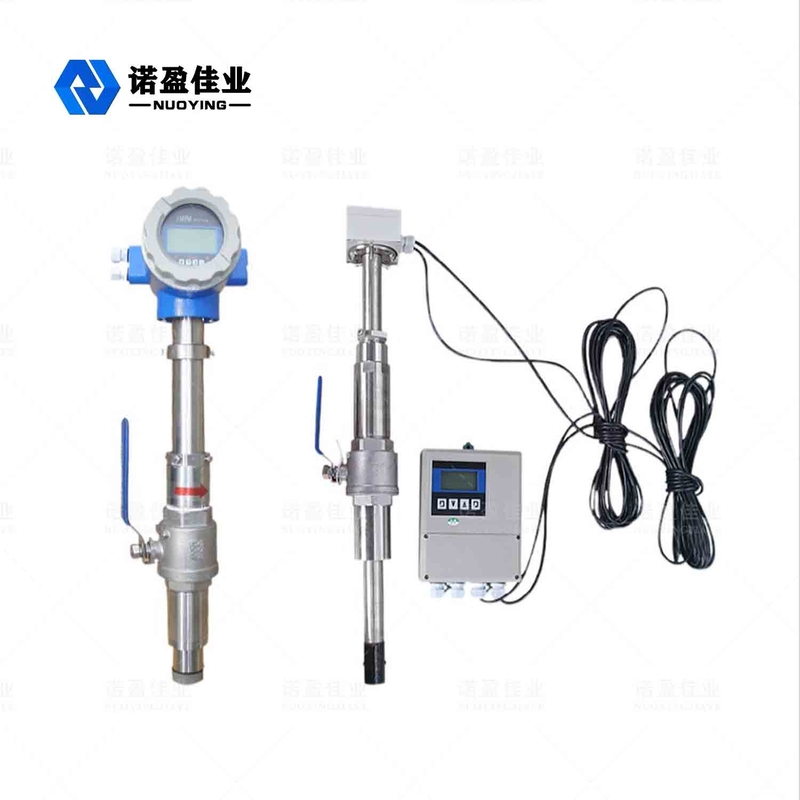

All-in-one type (As shown in the figure: left)
The electromagnetic flowmeter converter adopts a novel excitation method, which has low power consumption, stable zero point and long service life.

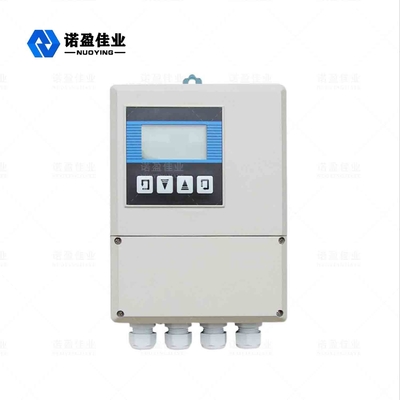

Split type (As shown in the figure: right)
In addition to measuring the flow of general conductive liquids, the split electromagnetic flowmeter can also measure the volume flow of liquid-solid two-phase flow, high-viscosity fluids and salts, and strong acid and strong alkali liquids.
