Product Details:
|
| Typical Application: | Liquid Level Control | Probe Material: | 304, PTFE (optional) |
|---|---|---|---|
| Probe Length: | 300mm | Power Supply: | 24VDC, 220VAC |
| Process Temperature: | -40~+130℃, -40~+260℃ | Process Pressure: | -0.1~2.0MPa |
| Protection Level: | IP67 | Explosion-proof Grade: | Exia II CT6 |
| High Light: | 200mm Radio Frequency Capacitor Switch,Thread Connected RF Capacitor Switch |
||

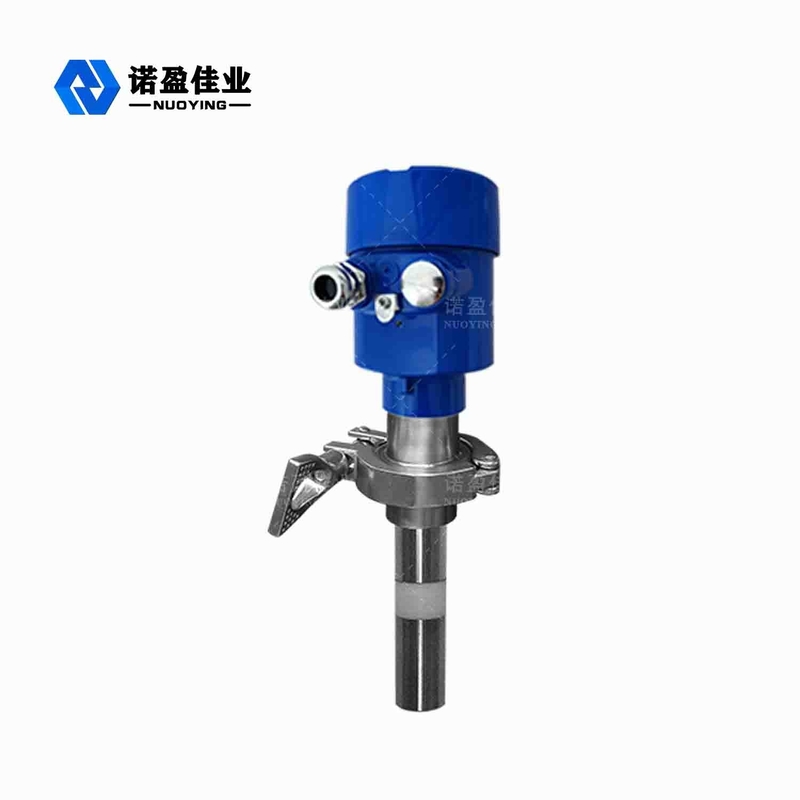

200mm IP67 NYDR-1 Radio Frequency Capacitor Switch Connected With Thread
NYDR-1 Radio Frequency Capacitor Switch Working Principle
A comprehensive line of process automation instruments offers the best products for a wide range of applications. Whether you need to measure pressure (pressure transmitter), temperature measurement, flow measurement (with measurement tools such as mass flowmeters, ultrasonic flowmeters and electromagnetic flowmeters) or level measurement (with ultrasonic level gauges and radar level gauges, etc. Measurement tools), etc., we can provide unique and professional process automation instrument products to provide you with a one-stop solution.
NYDR-1 Radio Frequency Capacitor Switch Design Feature
1. This product uses intelligent microprocessor components and differential measurement technology, can measure water, sewage, mud, and other liquids, especially effective and accurate measurement of strong corrosive media, can be dynamic compensation for environmental changes and hanging material.
2. This product can be used in non-metallic tank sensor built-in subsidized electrode, and don’t need to add electrode inside the container.
3. The operation is very simple, only need to adjust the corresponding sensitivity knob according to the media, and wave surge delay filtering can be used.
NYDR-1 Radio Frequency Capacitor Switch Technical Parameters
| Typical application | Liquid level control |
| Probe material | 304, PTFE (optional) |
| Probe length | 300mm(Length can be customized according to site conditions) |
| Power supply | 24VDC, 220VAC |
| Process temperature | -40~+130℃, -40~+260℃ |
| Process pressure | -0.1~2.0MPa |
| Process connection | Thread, flange (optional) |
| Electrocution capacity | single-point: 250V 8A multi-point: 250V 3A |
| Dielectric constant | ≥1.6 |
| Protection level | IP67 |
| Explosion-proof grade | Exia II CT6 |
