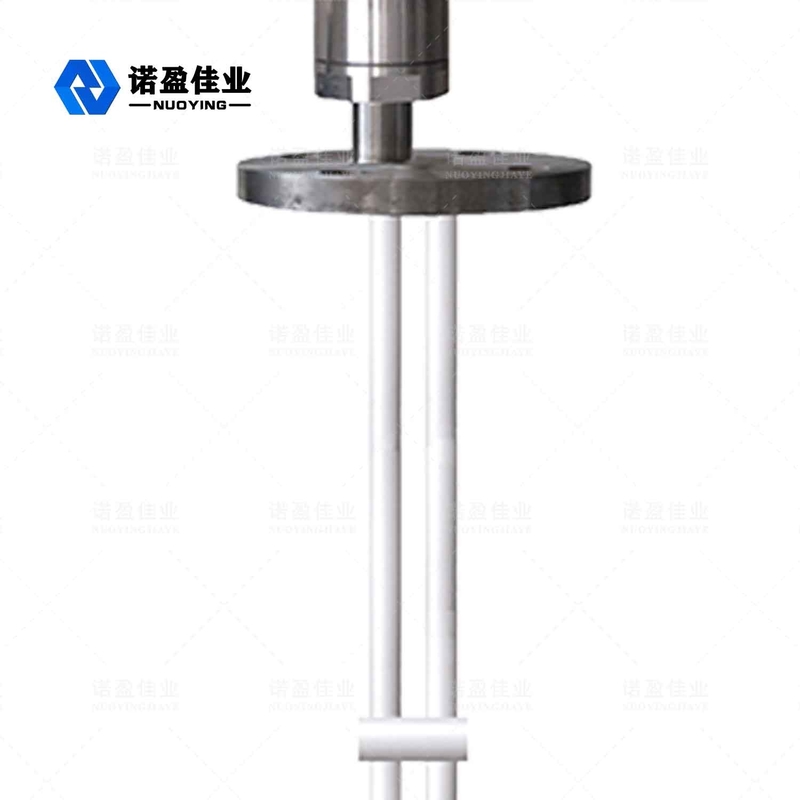

NYSP-M21 RF Admittance Level Transmitter For Low Dielectric Constant Liquid

Certification
China Xi 'an West Control Internet Of Things Technology Co., Ltd. certification
China Xi 'an West Control Internet Of Things Technology Co., Ltd. certification
I'm Online Chat Now

NYSP-M21 RF Admittance Level Transmitter For Low Dielectric Constant Liquid

NYSP-M21 RF Admittance Level Transmitter For Low Dielectric Constant Liquid
NYSP-M21 RF Admittance Level Transmitter For Low Dielectric Constant Liquid

Large Image :  NYSP-M21 RF Admittance Level Transmitter For Low Dielectric Constant Liquid

Product Details:
Place of Origin: Xi'an, Shaanxi,China
Brand Name: NUOYINGJIAYE
Certification: CE
Model Number: NYSP-M21
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: $400~$800/pc
Packaging Details: Carton, 60cm×30cm×30cm
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 1000 pcs/month

NYSP-M21 RF Admittance Level Transmitter For Low Dielectric Constant Liquid

Description
Typical Application: Low Dielectric Constant Liquid Antenna Material: Barrel Hard Rod
Power Supply: 24 VDC Medium Temperature: -40~+200℃
Process Pressure: -0.1~8.0MPa Procedure Linkage: Thread,flange(optional)
Levels Of Protection: IP6 7 Explosion-proof Classification: ExiaIICT6 (optional)
High Light:

Barrel Hard Rod RF Level Transmitter

,

Low Dielectric Constant RF Liquid Transmitter

NYSP-M21 RF Admittance Level Transmitter For Low dielectric constant liquid





The working Principle of NYSP-M21 RF Admittance Level Transmitter For Low Dielectric Constant Liquid



The RF admittance level meter is mainly composed of a detection part and a transmission part. The detection part includes a probe, a protective casing, etc.; , Modulation drive amplifier, filter damping link, voltage limit and voltage-current conversion circuit, etc. According to the bridge principle, the increased capacitance due to the rise of the liquid level makes the bridge unbalanced. At the same time, the output voltage of the demodulator, which is proportional to the unbalance of the bridge, is filtered and amplified, output damped, and converted into voltage/current. 4-20mA current signal proportional to level. Whether it is a radio frequency capacitance level meter or a radio frequency admittance level meter, it can accurately measure the level of the medium, but compared with the ordinary radio frequency capacitance level meter, the radio frequency admittance level meter is more suitable for measuring the material level, because it can The influence of hanging material on material level measurement is well handled.



Design features of NYSP-M21 RF Admittance Level Transmitter For Low Dielectric Constant Liquid



◎ anti hanging: the unique driving shield circuit design improves the anti hanging ability

◎ power supply range: power supply working range: 13 ~ 35vdc

◎ probe process temperature: - 100 ℃ ~ 800 ℃

◎No dead zone measurement, can be applied to a large range of material level measurement occasions of more than ten centimeters or even several centimeters

◎The maximum measuring range can reach hundred meters, even hundreds of meters

◎Viscous material interface measurement is a great advantage of this instrument

◎stable and reliable output, resistant to fly ash, falling material, water vapor, crystallization and wax

◎no movement, no parts easy to wear, no regular cleaning, maintenance and debugging



Technical parameters of NYSP-M21 RF Admittance Level Transmitter For Low Dielectric Constant Liquid



Typical application Liquid(Corrosion, conductivity, low dielectric constant, stirring, interface, electric dehydration, viscosity, deep well, ultra large range and other occasions)
Dust (conductivity, insulating powder, etc.)
Solid (conductivity, insulating, ultra-high temperature insulating solid, etc.)

product model



NYSP-M16 NYSP-M17 NYSP-M18 NYSP-M19 NYSP-M20 NYSP-M21 NYSP-M22 NYSP-M23 NYSP-M24

Antenna form



Soft cable, insulated soft cable, non insulated soft cable, hard rod, insulated hard rod, insulated hard rod at both ends, cylindrical hard rod
Antenna Material PTFE,304,316
measuring range 3m, 20m(Deep well can measure hundreds of meters and can be customized)
Wavelength 635-650mm
Measurement precision 0.05%~0.1%F.S
Power supply 24VDC

signal output

4...20mA/HART/ RS485/Modbus….
Process temperature -40~+130℃,-100~+200℃, -40~+260℃, -50~+500℃
Process pressure

-0.1~1.6MPa,-0.1~4.0MPa, -0.1~6.3MPa

Process connection screw thread,flange(selectable)
Electrical interface M20*1.5,½ ″NPT
levels of protection IP65,IP67,IP68(selectable)
Explosion-proof grade Exia II CT6 Ga,Exd II CT6 Gb(See certificate for details)




※Note:The product can be customized according to the specific requirements of users.
