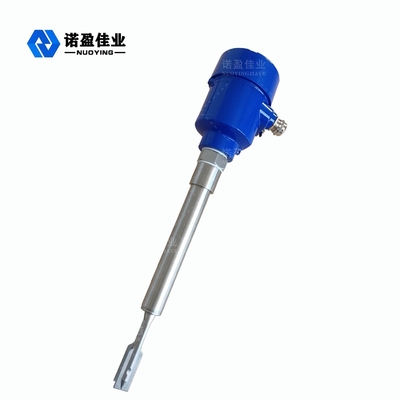

24VDC Tuning Fork Level Switch For Measuring Aerated Liquids And Slurries

Certification
China Xi 'an West Control Internet Of Things Technology Co., Ltd. certification
China Xi 'an West Control Internet Of Things Technology Co., Ltd. certification
I'm Online Chat Now

24VDC Tuning Fork Level Switch For Measuring Aerated Liquids And Slurries

24VDC Tuning Fork Level Switch For Measuring Aerated Liquids And Slurries
24VDC Tuning Fork Level Switch For Measuring Aerated Liquids And Slurries

Large Image :  24VDC Tuning Fork Level Switch For Measuring Aerated Liquids And Slurries

Product Details:
Place of Origin: Xi'an, Shaanxi,China
Brand Name: NUOYINGJIAYE
Certification: CE
Model Number: NYYCUK-A
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: $400~$500/pc
Packaging Details: Carton, 60cm×30cm×30cm
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 1000 pcs/month

24VDC Tuning Fork Level Switch For Measuring Aerated Liquids And Slurries

Description
Typical Application: Various Liquid Product Models: NYYCUK-A
Fork Length: 44mm(can Be Customized ) Power Supply: 24VDC~220VAC
Signal Output: SPDT Process Temperature: -40~ +180℃
Process Pressure: < 2.0 MPa Process Connection: Screw Thread,flange(optional)
High Light:

Aerated Liquids Vibration Fork Level Switch

,

24VDC Tuning Fork Liquid Level Switch

,

Slurries Tuning Fork Switch

24VDC Tuning Fork Level Switch For Measuring Aerated Liquids And Slurries



Working Principle of 24VDC Tuning Fork Level Switch For Measuring Aerated Liquids And Slurries



The principle of the tuning fork level switch is to determine the height of the material level according to the different vibration frequencies of the fork body. When the medium is in contact with the fork body of the tuning fork, the vibration frequency of the fork body will change, and the sensed data will be transmitted to the main board. Thereby automatically changing the wiring and disconnection of the power supply.
The tuning fork level switch is a level controller, which can be used to measure the height of the liquid and the level of the material. In theory, it is a small and versatile level measuring instrument. For the tuning fork level switch Its biggest advantage is stability.


Design feature of 24VDC Tuning Fork Level Switch For Measuring Aerated Liquids And Slurries



◎ no need adjustment: it is not affected by the dielectric constant and density of measured media, so no matter what liquid is measured, it does not need to be adjusted on site.

◎maintenance free: the detection process of the switch is completed by the electronic circuit. There are no moving parts. Once it is installed and put into operation, it does not need to be adjusted.

◎ suitable for measuring media density of solid powder or particles that can flow freely. It is also applicable to almost all liquid media. This series of tuning fork level switches can measure a variety of levels, with functions such as high / low fault safety limit switches, overflow or idling protection, pump control, and display of whether there is flow in the pipeline.

◎ strong adaptability - different electrical parameters and densities of the tested materials do not affect the measurement. Incrustation, agitation, turbulence, bubbles, vibration, medium viscosity, high temperature, high pressure and other adverse conditions also have no impact on the detection.

◎ it is not affected by eddy current and gas, foam,  and is suitable for fixed-point alarm or control of solid material level in various silos and liquid level in various containers. A variety of models can be suitable for different applications.

◎ long service life, stable performance, Safe and reliable,



Technical parameters of 24VDC Tuning Fork Level Switch For Measuring Aerated Liquids And Slurries



Typical application  liquid, dust and other media

product model

NYYCUK-C
Fork length 100mm
Power Supply 220VAC

signal output

DPDT relay output
Process temperature -40~+220℃
Process pressure -0.1~2.0 MPa
Process connection screw thread(selectable)
levels of protection IP67
Explosion-proof grade Exia II CT6 Ga,Exib II CT6 Gb(See certificate for details)



※Note:The product can be customized according to the specific requirements of users.
