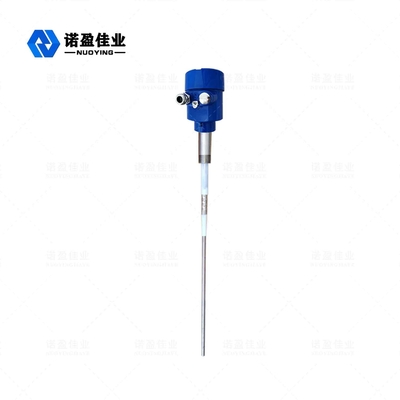

24VDC RF Admittance Level Switch Anti Adhesion For Liquid particles

24VDC RF Admittance Level Switch Anti Adhesion For Liquid particles
24VDC RF Admittance Level Switch Anti Adhesion For Liquid particles

Large Image :  24VDC RF Admittance Level Switch Anti Adhesion For Liquid particles

Product Details:
Place of Origin: Xi'an, Shaanxi,China
Brand Name: NUOYINGJIAYE
Certification: CE
Model Number: NYSP-UK861
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: $200~$300/pc
Packaging Details: Carton, 60cm×30cm×30cm
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 1000 pcs/month

24VDC RF Admittance Level Switch Anti Adhesion For Liquid particles

Description
Typical Application: Liquid,powder,particles Product Models: NYSP-UK861
Power Supply: 24VDC/220VAC Probe Rod Material: 304,PTFE(optional)
Probe Rod Length: 500mm(The Length Can Be Customized According To The Site Conditions) Process Temperature: -40~+130℃
Time Delay: 0~30s(optional) Power Loss Protection: Normally Open, Normally Closed, Field Switchable
High Light:

24VDC RF Admittance Type Level Switch

,

RF Admittance Level Switch Anti Adhesion

,

Particles RF Level Sensor

24VDC RF Admittance Switch Anti Adhesion



Working Principle of 24VDC RF Admittance Switch Anti Adhesion



The working principle of the radio frequency admittance level switch is based on radio frequency (RF) capacitive technology. A radio frequency is applied to the probe and, through continuous analysis, the effects caused by the surrounding environment are determined. Since all materials have a permittivity and their conductivity is different from that of air, the overall impedance reflected by the small capacitance shift changes when the probe is in contact with the material. Because the energized probe and the vessel wall form the two polar plates of the capacitor, the insulator of the probe and the surrounding air become the dielectric material, when the air (which has a dielectric constant of 1.0) is replaced by any other material (with a dielectric constant > 1), The capacitive effect is enhanced. Thus changing the impedance of the application. That is, the change of capacitance value causes the change of impedance. This effect is measured by the circuit and compared to a reference established by the sensitivity setting (circuit).


Design feature of 24VDC RF Admittance Switch Anti Adhesion



◎this product uses intelligent microprocessor components and difference measurement technology, which can measure water, sewage, mud and other liquids, especially can effectively and accurately measure strong corrosive media, and can dynamically compensate for environmental changes and hanging materials;

◎the operation is very simple. You only need to adjust the corresponding sensitivity knob according to the medium and use the surge delay filter;

◎ the upper and lower limit alarm modes can be flexibly set, and the user can set and select the normally open and normally closed contacts by himself;

◎High performance imported single pole double throw relays are used for single point and multi-point relays. The single point contact current capacity can reach 8A and the multi-point relay 3A. Can directly drive alarm devices within the range;

◎ PTFE probe is used. There is no movable device at the detection position. It is impact resistant, high-temperature resistant and corrosion-resistant.



Technical parameters of 24VDC RF Admittance Switch Anti Adhesion



Typical application High and low alarm for liquid, dust, particles, solids and other media
product model NYSP-UK861,NYSP-UK862,NYSP-UK863,NYSP-UK864,NYSP-UK865,NYSP-UK866
Probe rod form Cable type, pole type and flat type
Probe rod material 500mm(The length can be customized according to the site conditions)
Power Supply 24VDC,220VAC
Signal Output Double pole double throw relay (DPDT) output, 5A 24VDC or 5A 220VAC
Ambient Temperature -40~+80℃
Process Temperature -40~+130℃,-184~+260℃,>260℃Select ceramic high temperature probe
Process pressure -0.1~2.0MPa
Process connection screw thread,brackets,flange(selectable)
time delay 0-30s adjustable
Power loss protection Normally open, normally closed, field switchable
sensitivity 0.5pf~750pf
Fault alarm Upper or lower limit, adjustable on site
levels of protection IP67
Explosion-proof grade Exia II CT6 Ga,Exd II CT6 Gb(See certificate for details)



※Note:The product can be customized according to the specific requirements of users.
