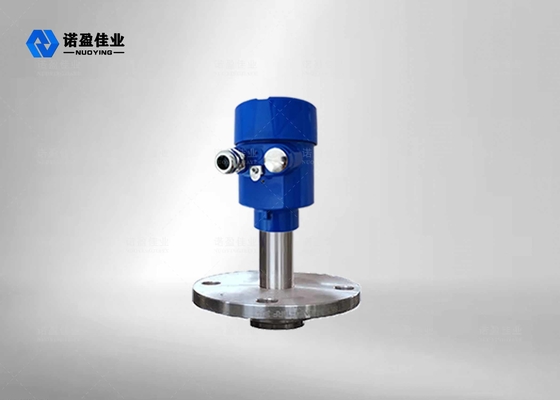

2.0Mpa RF Admittance Level Switch With Power Loss Protection

2.0Mpa RF Admittance Level Switch With Power Loss Protection
2.0Mpa RF Admittance Level Switch With Power Loss Protection

Large Image :  2.0Mpa RF Admittance Level Switch With Power Loss Protection

Product Details:
Place of Origin: Xi'an, Shaanxi,China
Brand Name: NUOYINGJIAYE
Certification: CE
Model Number: NYSP-UK864
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: $200~$300/pc
Packaging Details: Carton, 60cm×30cm×30cm
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 1000 pcs/month

2.0Mpa RF Admittance Level Switch With Power Loss Protection

Description
Typical Application: Coal Delivery Switch Product Models: NYSP-UK 864
Power Supply: 24VDC,220VAC (optional) Probe Rod Material: 304/PTFE
Probe Rod Length: It Can Be Customized Process Temperature: -40~+130 ℃
Time Delay: 0~30 S Power Loss Protection: Normally Open Or Normally Closed
High Light:

2.0Mpa RF Level Sensor

,

Power Loss Protection Admittance Level Switch

,

RF Admittance Level Switch 220VAC

2.0Mpa RF Admittance Level Switch With Power Loss Protection



Working Principle of 2.0Mpa RF Admittance Level Switch With Power Loss Protection



The probe of the RF admittance switch emits a signal. The RF admittance switch uses high-frequency technology when working. It will send a signal to the probe on an electronic circuit. At this time, the probe will report the movement of the material level to the electronic circuit at any time. The movement includes the occurrence of The capacity of electricity and the amount of electricity derived are data that change at any time, and the electronic circuit processes and analyzes these signals at any time. The high frequency receives the electronic circuit signal and makes predictions. The change of the signal at any time will cause the phase change of the high-frequency signal, which affects the difference between the high-frequency signal and the electronic circuit signal. This difference also changes at any time during the continuous use of the material. This change is compared with each other. After that, if the difference is too small, it means that the material is about to bottom out, and then the alarm system will give an alarm in time to request to add material. On the contrary, it means that there are still materials in the material bin.


Design feature of 2.0Mpa RF Admittance Level Switch With Power Loss Protection



◎this product uses intelligent microprocessor components and difference measurement technology, which can measure water, sewage, mud and other liquids, especially can effectively and accurately measure strong corrosive media, and can dynamically compensate for environmental changes and hanging materials;

◎the operation is very simple. You only need to adjust the corresponding sensitivity knob according to the medium and use the surge delay filter;

◎ the upper and lower limit alarm modes can be flexibly set, and the user can set and select the normally open and normally closed contacts by himself;

◎High performance imported single pole double throw relays are used for single point and multi-point relays. The single point contact current capacity can reach 8A and the multi-point relay 3A. Can directly drive alarm devices within the range;

◎ PTFE probe is used. There is no movable device at the detection position. It is impact resistant, high-temperature resistant and corrosion-resistant.



Technical parameters of 2.0Mpa RF Admittance Level Switch With Power Loss Protection



Typical application High and low alarm for liquid, dust, particles, solids and other media
product model NYSP-UK861,NYSP-UK862,NYSP-UK863,NYSP-UK864,NYSP-UK865,NYSP-UK866
Probe rod form Cable type, pole type and flat type
Probe rod material 500mm(The length can be customized according to the site conditions)
Power Supply 24VDC,220VAC
Signal Output Double pole double throw relay (DPDT) output, 5A 24VDC or 5A 220VAC
Ambient Temperature -40~+80℃
Process Temperature -40~+130℃,-184~+260℃,>260℃Select ceramic high temperature probe
Process pressure -0.1~2.0MPa
Process connection screw thread,brackets,flange(selectable)
time delay 0-30s adjustable
Power loss protection Normally open, normally closed, field switchable
sensitivity 0.5pf~750pf
Fault alarm Upper or lower limit, adjustable on site
levels of protection IP67
Explosion-proof grade Exia II CT6 Ga,Exd II CT6 Gb(See certificate for details)



※Note:The product can be customized according to the specific requirements of users.
