Product Details:
|
| Typical Application: | Powder, Small Particle | Product Model: | NY ZX |
|---|---|---|---|
| Probe Rod Material: | 304（optional） | Probe Rod Length: | 200mm（The Length Can Be Customized According To The Site Conditions） |
| Medium Density: | ≥0.4 G/cm3 | Moment Of Force: | 10 Kg.m |
| Electric Shock Capacity: | 250V 5A（SPDT） | Insulation Impedance: | ≥100 MΩ |
| High Light: | Sickle Type Rotary Paddle Level Switch,200mm Probe Rod Rotary Paddle Switch,Particle Rotary Paddle Level Switch |
||

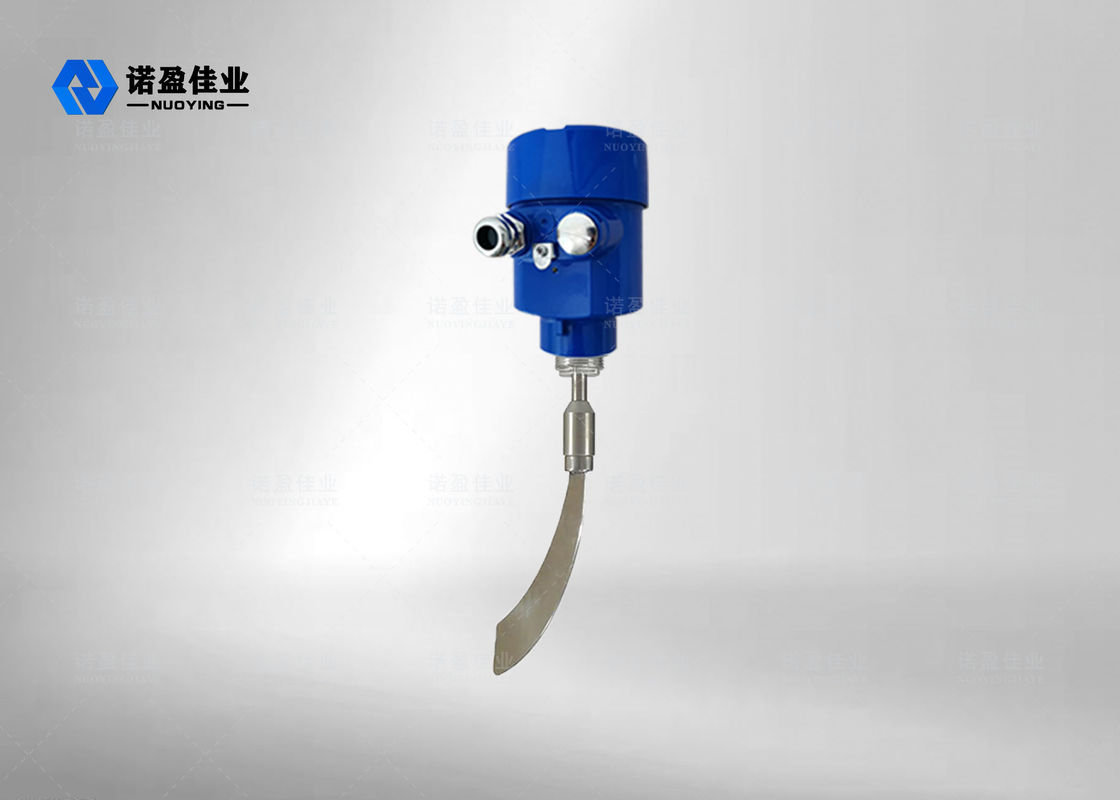

Sickle Type Rotary Paddle Level Switch 200mm Probe Rod
Working principle of Sickle Type Rotary Paddle Level Switch 200mm Probe Rod
After the AC micro-motor is decelerated, it drives the monitoring blade to rotate at a slow speed. When the level of the material rises and the rotation of the blade is blocked, the detection mechanism generates a rotational displacement around the main shaft. This displacement first makes a micro switch act to send out a material signal. Then another micro switch acts to cut off the power of the micro motor to stop the rotation. This state will remain as long as the material level in the bin remains unchanged.
Design Features of Sickle Type Rotary Paddle Level Switch 200mm Probe Rod
◎ unique oil seal design can prevent dust from penetrating along the shaft;
◎The motor of imported resistance rotary switch has reliable performance, and double sealed bearings can ensure long-term continuous operation;
◎ Simple structure and convenient installation;
◎ stable and reliable, and the torque can be adjusted;
◎ a variety of probe forms can be applied to different occasions.
Technical Parameters of Sickle Type Rotary Paddle Level Switch 200mm Probe Rod
| Typical application | Powder |
| product model | NYZX |
| Probe Rod Material | 304(optional) |
| Probe Rod Length | 100mm(The length can be customized ) |
| Power Supply | 24VDC,220VAC |
| Process Temperature | -40~+80℃(>+80℃can be customized) |
| Process Pressure | room pressure |
| Process Connection | screw thread(optional) |
| Electric shock capacity | 250V 5A(SPDT Single pole double throw) |
| Medium density | ≥0.4g/cm3 |
| moment of force | 10kg.m(1N.m) |
| Insulation impedance | ≥100MΩ(500VDC) |
| levels of protection | IP67 |
| Explosion-proof grade | Exia II CT6 |
※Note:The product can be customized according to the specific requirements of user
