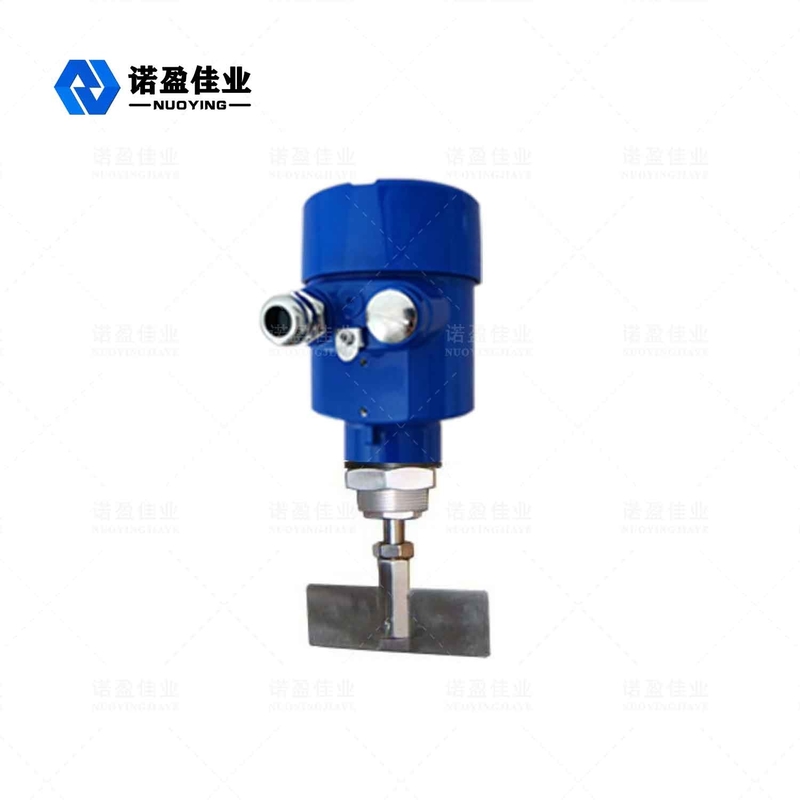

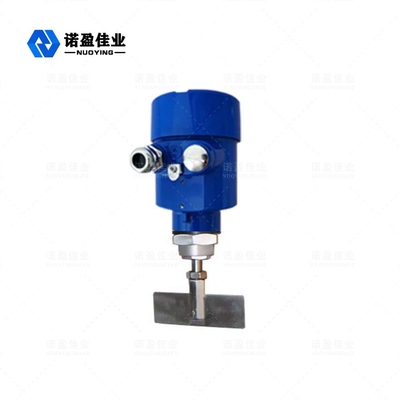

Atmospheric Pressure Rotary Paddle Level Switch Font Blade IP67

Atmospheric Pressure Rotary Paddle Level Switch Font Blade IP67
Atmospheric Pressure Rotary Paddle Level Switch Font Blade IP67

Large Image :  Atmospheric Pressure Rotary Paddle Level Switch Font Blade IP67

Product Details:
Place of Origin: Xi'an,Shaanxi,China
Brand Name: NUOYINGJIAYE
Certification: CE
Model Number: NYZX
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: $100~$380/pcs
Packaging Details: Carton, 60cm×30cm×30cm
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 1000 pcs/month

Atmospheric Pressure Rotary Paddle Level Switch Font Blade IP67

Description
Process Temperature: -40"~+80"C(>80"C Can Be Customized) Process Pressure: Normal Pressure
Process Connection: Flange (optional) Protection Grade: IP 6 7
Insulation Impedance: ≥100MΩ(500 VDC) Moment Of Force: 10kg.m(1N. M)
Electric Shock Capacity: 250V/5A(SPDT Single Pole Double Throw) Probe Rod Material: 304(selectable)
High Light:

Atmospheric Pressure Rotary Paddle Level Switch

,

Font Blade Rotary Paddle Level Switch

,

IP67 Rotary Paddle Level Sensor

Atmospheric Pressure Rotary Paddle Level Switch Font Blade





Working principle of Atmospheric Pressure Rotary Paddle Level Switch Font Blade



The micro-motor of alternating current is used to decelerate, so that the speed of the monitoring blade also decreases, and the level of the material will rise at this time, which will hinder the rotation of the blade. At this time, the detection device in the rotary material level switch will rotate and displace with the main shaft as the core, so that the micro switch will send a signal that there is material in the equipment, and at the same time, another material level control switch will send a signal to cut off the power supply to stop the equipment. turn.

When the material level begins to drop, the rotation of the blade is no longer hindered. With the help of the tension of the spring, the detection mechanism returns to its original state. signal, the device resumes normal operation. The rotary material level switch controls the start and stop of the equipment through such a set of principles.



Design Features of Atmospheric Pressure Rotary Paddle Level Switch Font Blade



◎ unique oil seal design can prevent dust from penetrating along the shaft;

◎The motor of imported resistance rotary switch has reliable performance, and double sealed bearings can ensure long-term continuous operation;

◎ Simple structure and convenient installation;

◎ stable and reliable, and the torque can be adjusted;

◎ a variety of probe forms can be applied to different occasions.



Technical Parameters of Atmospheric Pressure Rotary Paddle Level Switch Font Blade



Typical application Powder
product model NYZX
Probe Rod Material 304(optional)
Probe Rod Length 100mm(The length can be customized)
Power Supply 24VDC
Process Temperature -40~+80℃(>+80℃can be customized)
Process Pressure Atmospheric pressure
Process Connection screw thread(optional)
Electric shock capacity 250V 5A(SPDT Single pole double throw)
Medium density ≥0.4g/cm3
moment of force 10kg.m(1N.m)
Insulation impedance ≥100MΩ(500VDC)
levels of protection IP67
Explosion-proof grade Exia II CT6(See certificate for details)


※Note:The product can be customized according to the specific requirements of user
