Product Details:
|
| Typical Application: | Powder, Small Particle Level | Product Model: | NYZ X |
|---|---|---|---|
| Probe Rod Material: | 304( Optional) | Probe Rod Length: | 100mm（can Be Customized According To The Site Conditions） |
| Medium Density: | ≥ 0.4g/cm3 | Moment Of Force: | 10 Kg.m |
| Electric Shock Capacity: | 250V、5A | Insulation Impedance: | ≥100 MΩ |
| High Light: | Double Sealed Bearing Rotary Level Switch,100mm Rotary Paddle Level Switch,Powder Rotating Paddle Level Switch |
||

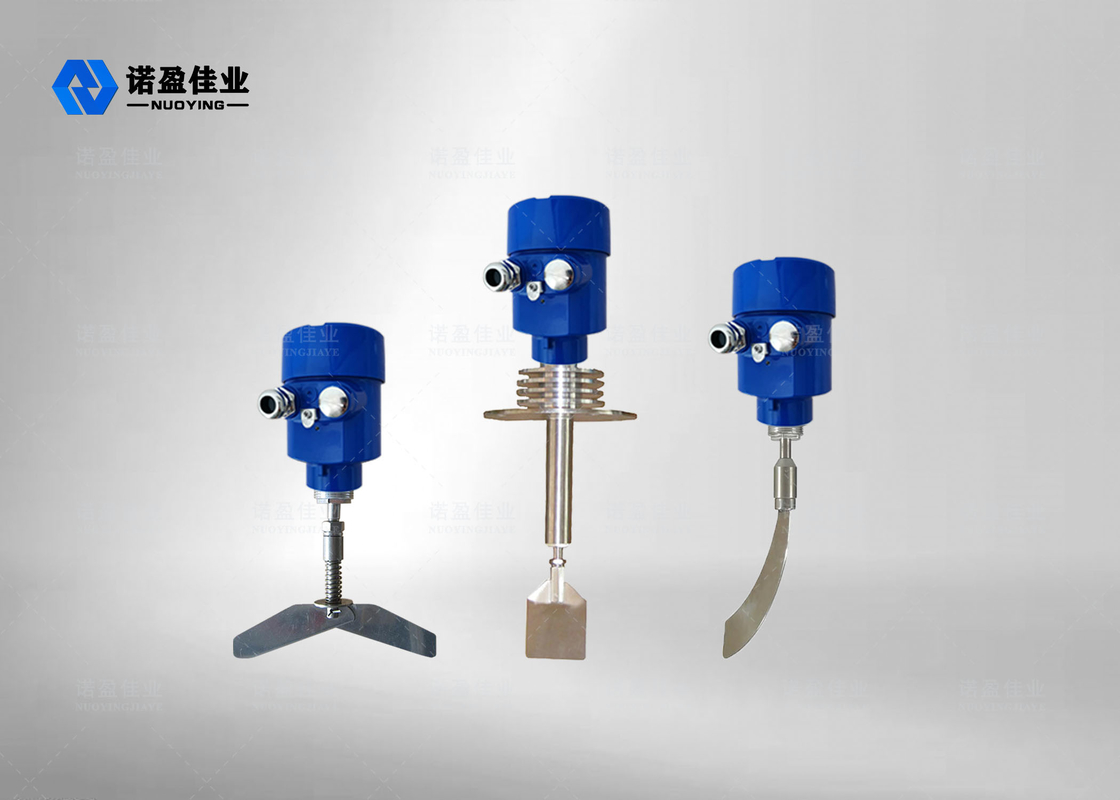

Reliable Rotary Paddle Level Switch Double Sealed Bearing
Working principle of Reliable Rotary Paddle Level Switch Double Sealed Bearing
The working principle is to use a micro-motor as the driving device, and the transmission shaft is connected with the clutch. When the material is not in contact with the material, the motor runs normally. When the blade contacts the material, the motor stops rotating, the detection device outputs a contact signal, and the power is cut off to stop the rotation. When the material falls, the resistance on the blade disappears, and the detection device relies on the torsion spring to return to the original state. The torque can be adjusted for different specific gravity materials.
Design Features of Reliable Rotary Paddle Level Switch Double Sealed Bearing
◎ unique oil seal design can prevent dust from penetrating along the shaft;
◎The motor of imported resistance rotary switch has reliable performance, and double sealed bearings can ensure long-term continuous operation;
◎ Simple structure and convenient installation;
◎ stable and reliable, and the torque can be adjusted;
◎ a variety of probe forms can be applied to different occasions.
Technical Parameters of Reliable Rotary Paddle Level Switch Double Sealed Bearing
| Typical application | Powder |
| product model | NYZX |
| Probe Rod Material | 304(optional) |
| Probe Rod Length | 100mm(The length can be customized ) |
| Power Supply | 24VDC,220VAC |
| Process Temperature | -40~+80℃(>+80℃can be customized) |
| Process Pressure | room pressure |
| Process Connection | screw thread(optional) |
| Electric shock capacity | 250V 5A(SPDT Single pole double throw) |
| Medium density | ≥0.4g/cm3 |
| moment of force | 10kg.m(1N.m) |
| Insulation impedance | ≥100MΩ(500VDC) |
| levels of protection | IP67 |
| Explosion-proof grade | Exia II CT6 |
※Note:The product can be customized according to the specific requirements of user
