Product Details:
|
| Typical Application: | Liquid, Dust And Other Media | Fork Length: | 100mm |
|---|---|---|---|
| Power Supply: | 220VAC | Signal Output: | DPDT Relay Output |
| Process Temperature: | -40~+220℃ | Process Pressure: | -0.1~2.0 MPa |
| Process Connection: | Screw Thread(selectable) | Levels Of Protection: | IP67 |
| High Light: | Aerated Liquids Tuning Fork Level Switch,Slurries Tuning Fork Level Switch,100mm Tuning Fork Switch |
||

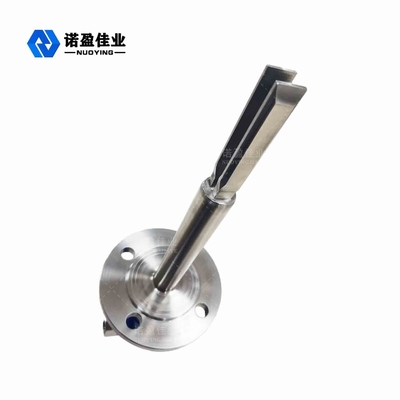

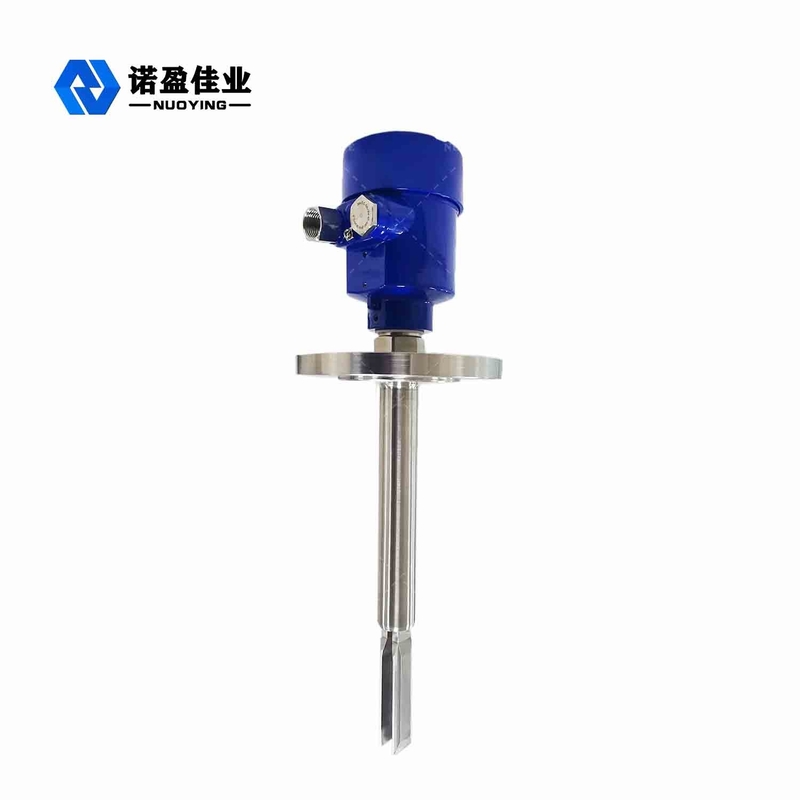

24VDC Tuning Fork Level Switch For Measuring Aerated Liquids And Slurries
Working Principle of 24VDC Tuning Fork Level Switch For Measuring Aerated Liquids And Slurries
The principle of the tuning fork level switch is to determine the height of the material level according to the different vibration frequencies of the fork body. When the medium is in contact with the fork body of the tuning fork, the vibration frequency of the fork body will change, and the sensed data will be transmitted to the main board. Thereby automatically changing the wiring and disconnection of the power supply.
The tuning fork level switch is a level controller, which can be used to measure the height of the liquid and the level of the material. In theory, it is a small and versatile level measuring instrument. For the tuning fork level switch Its biggest advantage is stability.
Design feature of 24VDC Tuning Fork Level Switch For Measuring Aerated Liquids And Slurries
◎ No need adjustment: it is not affected by the dielectric constant and density of measured media, so no matter what liquid is measured, it does not need to be adjusted on site.
◎Maintenance free: the detection process of the switch is completed by the electronic circuit. There are no moving parts. Once it is installed and put into operation, it does not need to be adjusted.
◎Suitable for measuring media density of solid powder or particles that can flow freely. It is also applicable to almost all liquid media. This series of tuning fork level switches can measure a variety of levels, with functions such as high / low fault safety limit switches, overflow or idling protection, pump control, and display of whether there is flow in the pipeline.
◎Strong adaptability - different electrical parameters and densities of the tested materials do not affect the measurement. Incrustation, agitation, turbulence, bubbles, vibration, medium viscosity, high temperature, high pressure and other adverse conditions also have no impact on the detection.
◎It is not affected by eddy current and gas, foam, and is suitable for fixed-point alarm or control of solid material level in various silos and liquid level in various containers. A variety of models can be suitable for different applications.
◎Long service life, stable performance, Safe and reliable.
Technical parameters of 24VDC Tuning Fork Level Switch For Measuring Aerated Liquids And Slurries
| Typical application | liquid, dust and other media |
| product model | NYYCUK-C |
| Fork length | 100mm |
| Power Supply | 220VAC |
| signal output | DPDT relay output |
| Process temperature | -40~+220℃ |
| Process pressure | -0.1~2.0 MPa |
| Process connection | screw thread(selectable) |
| levels of protection | IP67 |
| Explosion-proof grade | Exia II CT6 Ga,Exib II CT6 Gb(See certificate for details) |
※Note:The product can be customized according to the specific requirements of users.
