Product Details:
|
| Transmission Frequency: | 76GHz~81GHz, FM Scanning Frequency Width 5GHz | Antenna Form: | Lens Antenna, Anti-corrosion Lens Antenna |
|---|---|---|---|
| Antenna Material: | PTFE, 304+PTFE | Measuring Range: | 0.08~150m |
| Measurement Accuracy: | 0.05%～0.1%F.S | Power Supply: | 24VDC、220VAC |
| Signal Output: | 4... 20mA/HART/RS485/Modbus | Process Pressure: | -0.1～2.0MPa |
| High Light: | 80G Radar Level Meter,PTFE Antenna Radar Level Meter,150m Radar Level Transmitter |
||

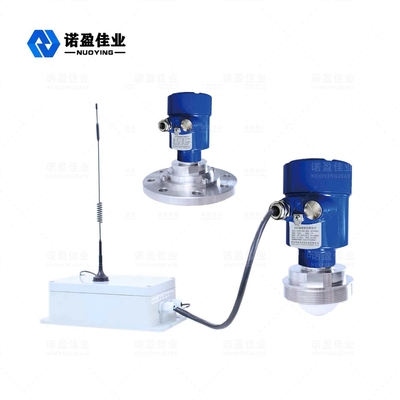

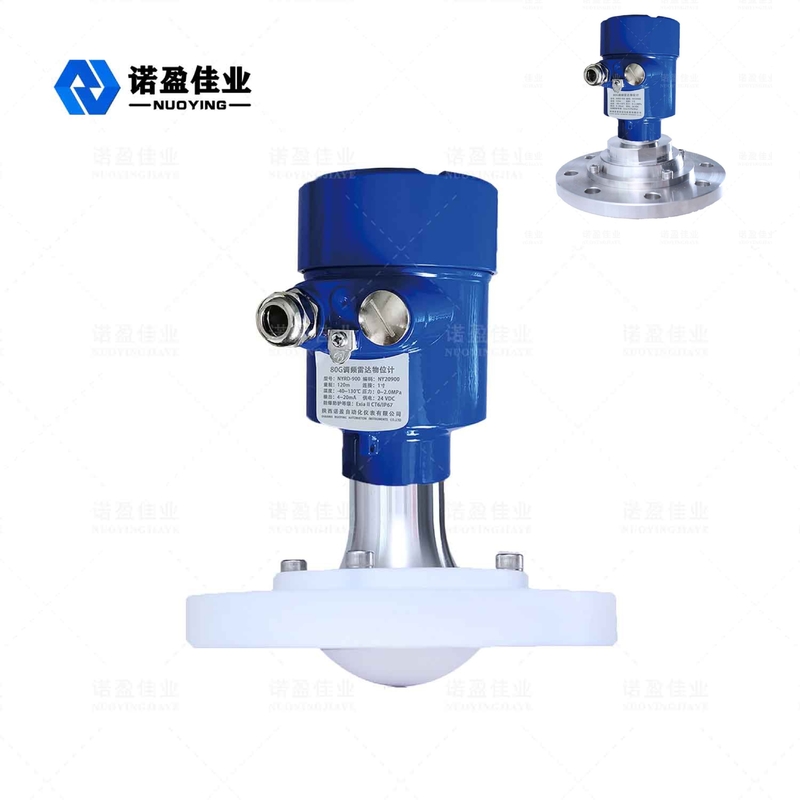

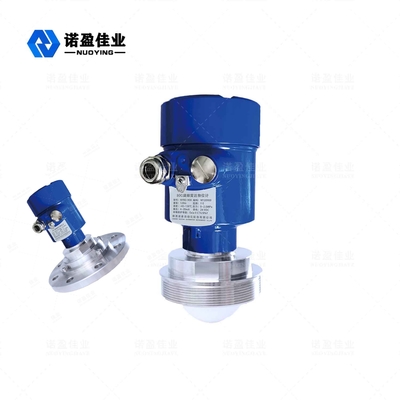

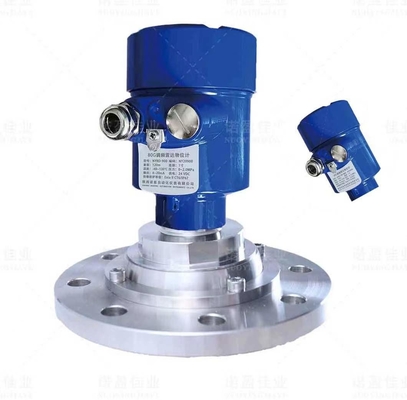

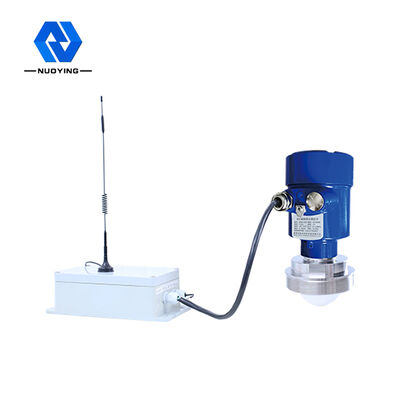

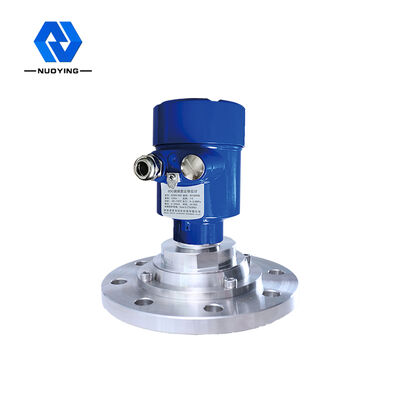

NYRD900 PTFE Antenna 80G Radar Level Meter Measuring Range 0.08 - 150m
80G Radar Level Meter Working Principle
The NYRD900 Frequency Modulation wave FMCW radar product (also known as millimeter wave radar) has important applications in remote target detection, remote imaging, multispectral imaging, etc. In the environment of strong smoke and dust, because it uses a millimeter wave band with a higher frequency than the Ku band radar. It can detect targets smaller than the microwave radar and achieve more accurate positioning, with higher resolution and stronger confidentiality.
80G Radar Level Meter Technical Parameters
|
Typical Applications |

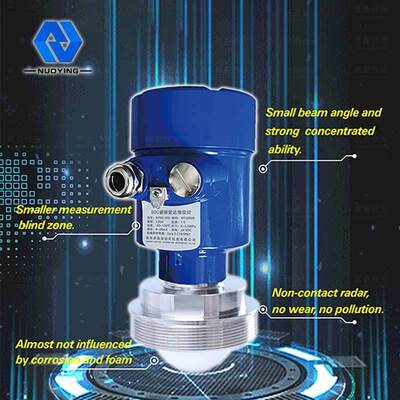

Electromagnetic wave emission angle is less than 3 °, which is suitable for measurement in narrow space or guided wave tube |
| Applicable to super large storage tank (150m) and small storage tank (small blind area) | |
| High precision, high sanitary level and other occasions | |
| Places with complex process conditions (mixing, heating rod, ladder, floating roof, strong dust, strong steam, etc.) | |
| Product Model | NYRD900 |
| Transmission Frequency | 76GHz~81GHz, FM scanning frequency width 5GHz |
| Antenna Form | Lens antenna, anti-corrosion lens antenna |
| Antenna Material | PTFE, 304+PTFE |
| Measuring Range | 0.08~150m |
| Measurement Accuracy | 0.05%～0.1%F.S |
| Power Supply | 24VDC,220VAC |
| Signal Output | 4... 20mA/HART/RS485/Modbus |
| Process Temperature | - 40~+130 ℃, - 40~+260 ℃ (≧260 ℃ can be customized) |
| Process Pressure | -0.1～2.0MPa |
| Process Connection | thread, bracket, flange, sanitary clamp (optional) |
| Protection Grade | IP65, IP67, IP68 (optional) |
| Explosion Proof Grade | Exia Ⅱ CT6 Ga, Exd Ⅱ CT6 Gb (see certificate for details) |
Note: The design can be customized according to the specific requirements of users!
