Product Details:
|
| Product Model: | NYRD809 | Antenna Type: | Horn Type |
|---|---|---|---|
| Antenna Material: | 304 | Typical Application: | Various Solids |
| Measuring Range: | 0-30m | Measurement Accuracy: | 0.05%~0.1% F. S |
| Process Temperature: | - 40~+1200 ℃ | Process Pressure: | -0.1～2.0MPa |

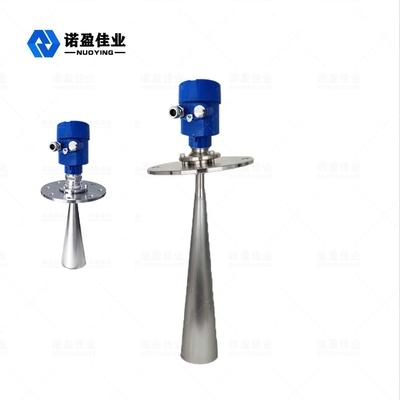

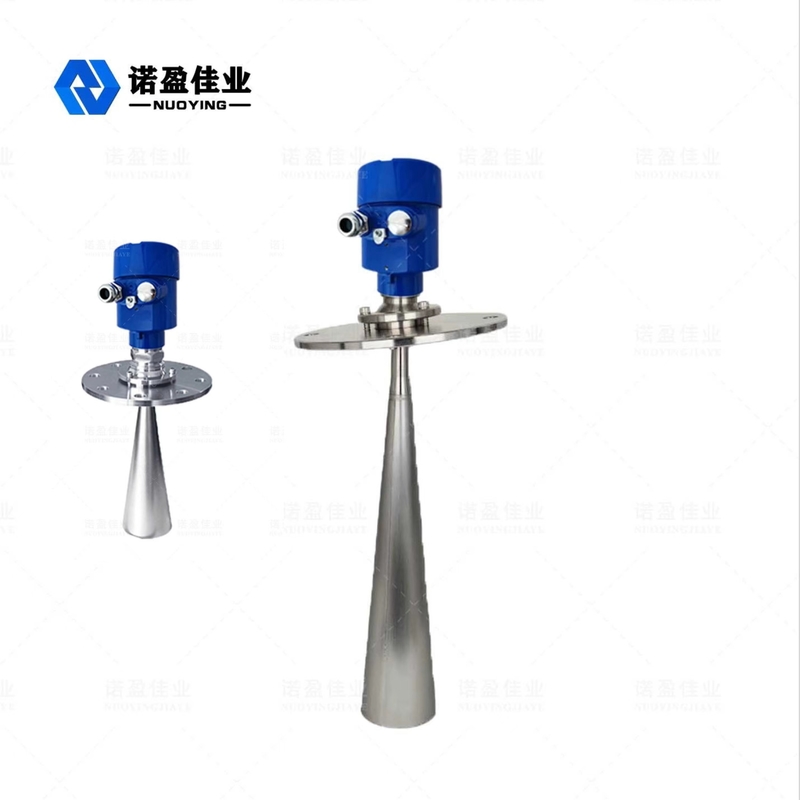

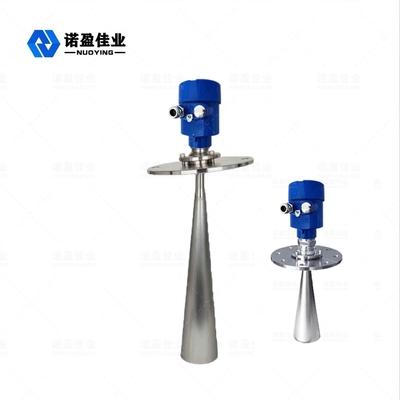

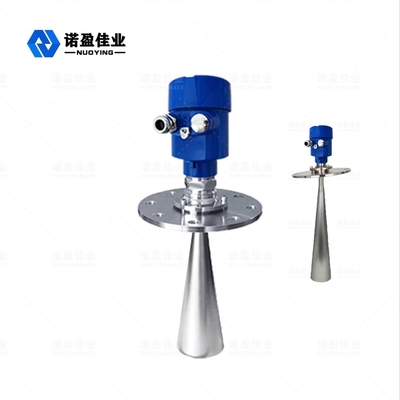

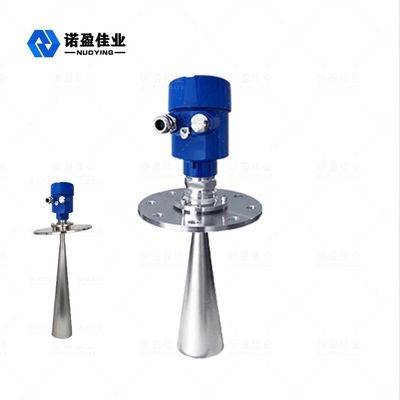

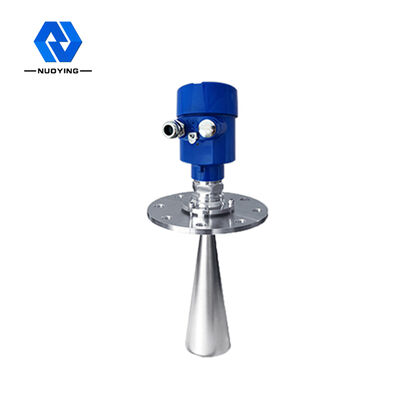

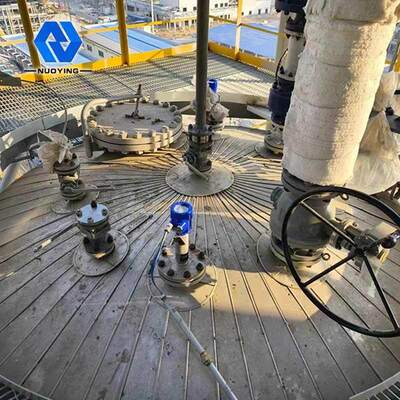

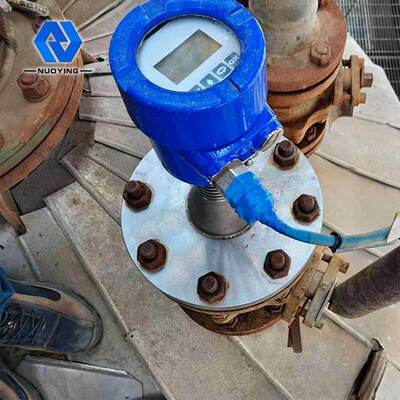

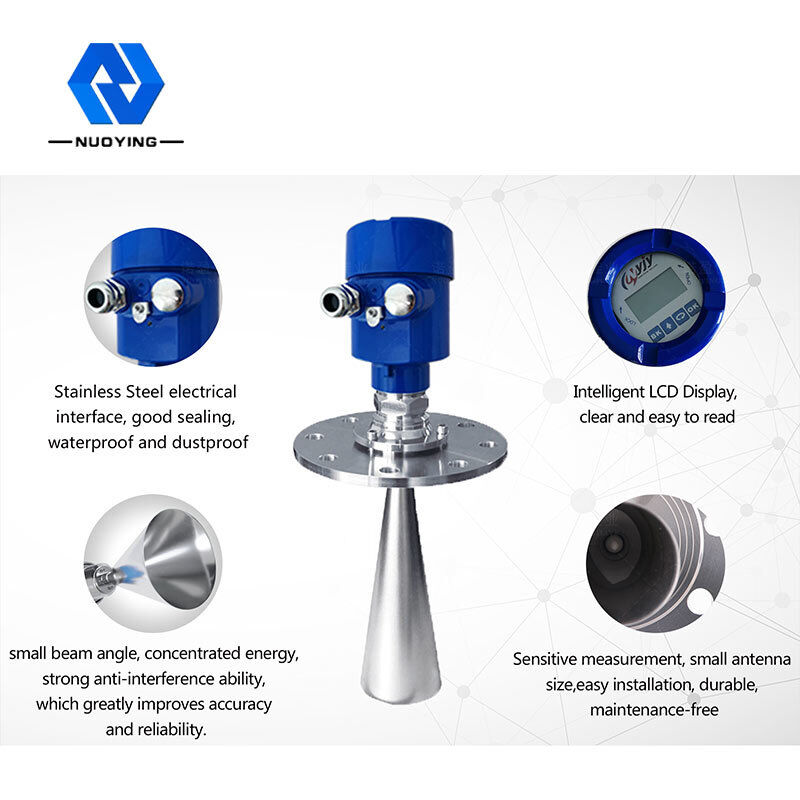

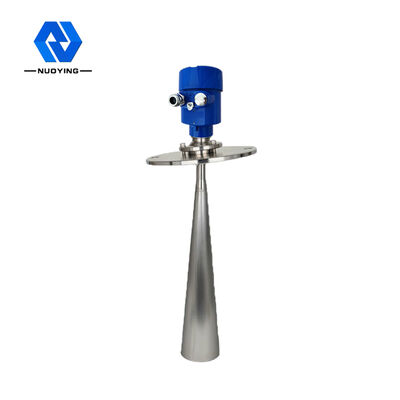

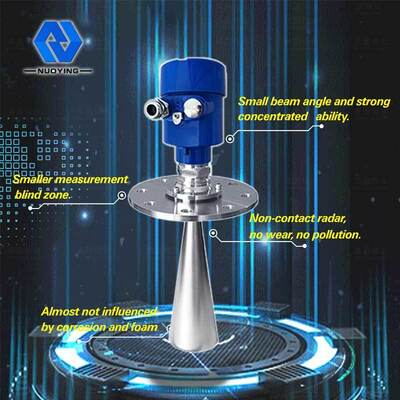

26G Radar Level Meter NYRD809 Small Blind Zone High Frequency
26G Radar Level Meter Working Principle
The radar level antenna transmits narrow microwave pulses, which are transmitted downward through the antenna. When the pulse wave touches the surface of the measured medium, it is reflected back and received by the antenna system again. The signal is transmitted to the electronic circuit part and automatically converted into a level signal (because the pulse propagation speed is extremely fast, the time taken for the electromagnetic wave to reach the target and return to the receiver after reflection is almost instantaneous).
Measuring datum plane: the bottom surface of the thread or the sealing surface of the flange.
Note: When using the radar level timer, it must be ensured that the highest level cannot enter the blind area (area shown in D in the figure).
26G Radar Level Meter Technical Parameters
|

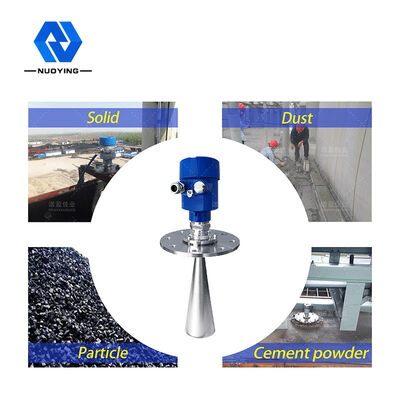

Typical Applications |
Various solids (grain, pebble, iron ore, coal, etc.) |
| Product Model | NYRD809 |
|
Antenna Type |
rod type, water drop type, flat plate type, horn type, polished surface type, lens type |
| Antenna Material | PTFE, 304, 316, PP, PFA |
| Measuring Range | 10m, 20m, 30m, 35m, 40m, 80m |
| Measurement Accuracy | 0.05%~0.1% F. S |
| Power Supply | 24VDC (two wire, four wire), 220VAC |
| Signal Output | 4... 20mA/HART/RS485/Modbus |
| Process Temperature | - 40~+1200 ℃ |
| Process Pressure | - 0.1~2.0MPa |
| Process connection | thread, bracket, flange, sanitary clamp (optional) |
| Electrical Interface | M20×1.5, 1/2"NPT |
| Protection Grade | IP65, IP67, IP68 (optional) |
| Explosion Proof Grade | Exia Ⅱ CT6 Ga, Exd Ⅱ CT6 Gb (see certificate for details) |
Remark: Customized products can be designed according to the specific requirements of users!
