NYSP-M19 RF Admittance Viscous Materials Interface Measurement Level Meter

Certification
China Xi 'an West Control Internet Of Things Technology Co., Ltd. certification
China Xi 'an West Control Internet Of Things Technology Co., Ltd. certification
I'm Online Chat Now

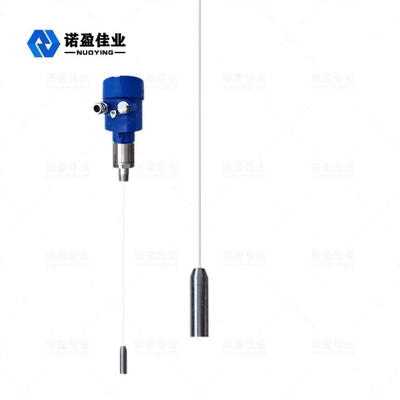

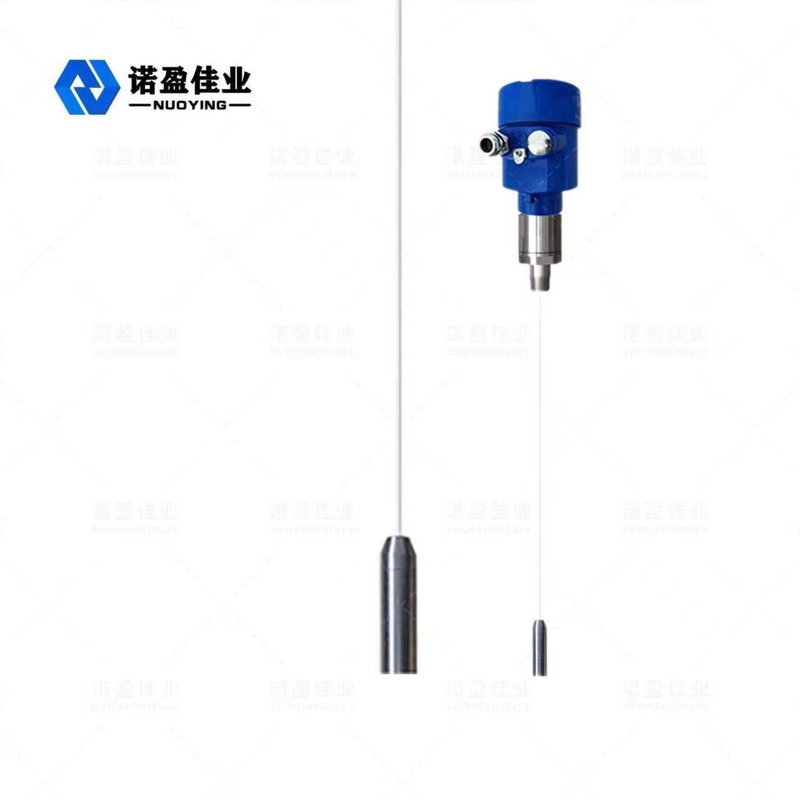

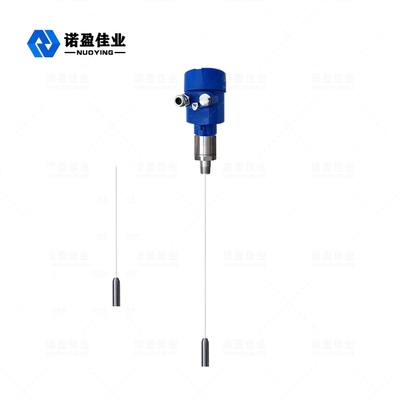

NYSP-M19 RF Admittance Viscous Materials Interface Measurement Level Meter

NYSP-M19 RF Admittance Viscous Materials Interface Measurement Level Meter
NYSP-M19 RF Admittance Viscous Materials Interface Measurement Level Meter NYSP-M19 RF Admittance Viscous Materials Interface Measurement Level Meter NYSP-M19 RF Admittance Viscous Materials Interface Measurement Level Meter

Large Image :  NYSP-M19 RF Admittance Viscous Materials Interface Measurement Level Meter

Product Details:
Place of Origin: Xi'an Shaanxi,China
Brand Name: NUOYINGJIAYE
Certification: CE
Model Number: NYSP-M19
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: $503.418/pcs
Packaging Details: Carton,Export Standard Packaging
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 1000 pcs/per month

NYSP-M19 RF Admittance Viscous Materials Interface Measurement Level Meter

Description
Signal Output: 4... 20mA/HART/RS485/Modbus Process Pressureterface: -0.1~4.0MPa
Typical Application: Liquid, Dust, Solid,Viscous Materials Interface Product Models: NYSP-M19
Antenna Type: Flexible Cable, Insulated Flexible Cable,hard Rod Antenna Material: PTFE, 304, 316
Process Temperature Accuracy: -40~+130℃ Measuring Range: 0~20m

NYSP-M19 RF Admittance Viscous Materials Interface Measurement Level Meter





NYSP-M19 RF Admittance Level Meter Working Principle



Rf inclusion level is a continuous level measurement product based on RF inclusion principle. This product has the advantages of high stability, high sensitivity and wide application. Compared to the conventional capacitor stage, it uses a modular design and can be easily set up instruments. After the configuration is complete, it can be used normally and can be maintained for life. It uses the home to visualize operations and deal with problems in a timely manner. It is also safe and reliable in complex industrial environment.

Rf conductivity measurement technology is a level measurement technology with unique advantages. Although the concept is very similar to general capacitance measurement techniques, RF conduction techniques add a drive shielding circuit and chopper circuit to the electronic unit, allowing independent measurement of impedance and capacitance resistance. The laws of physics calculate that the impedance of any suspension and the capacitance resistance of any suspension are equal, so the effect of suspension can be measured by the phase shift of the oscillating circuit and eliminated from the total output.

The probe of the RF conductivity meter is installed in the storage tank and the RF signal caused by the change of electric potential is obtained through the probe. The probe drive cover prevents the RF current from being diverted through the suspension material to form a ring, thus ensuring the accuracy of the instrument measurement.



NYSP-M19 RF Admittance Level Meter Technical Parameters


Typical Application

Liquid, dust, solid,Viscous Materials Interface
Product Models

NYSP-M19

Antenna Type Flexible cable, insulated flexible cable,hard rod
Antenna Material PTFE, 304, 316
Measuring Range 0~20m (hundreds of meters can be measured for deep wells,  customized)
Measurement Accuracy 0.05%~0.1%F. S
Power Supply 24VDC
Signal Output 4...20mA/HART/RS485/Modbus...
Process Temperature -40~+130℃
Process Pressure -0.1~4.0MPa
Process Connection Thread, flange (optional)
Electrical Interface M20 × 1.5, ½ "NPT
Protection Grade IP65, IP67, IP68 (optional)
Explosion Proof Grade Exia Ⅱ CT6 Ga, Exd Ⅱ CT6 Gb (see certificate for details)



Note: The products can be customized and designed according to the specific requirements of users!



NYSP-M19 RF Admittance Level Meter Design Features



The unique anti-suspension material drives the shielding circuit design, which improves the capability of anti-suspension material.

Power range. 13 ~ 35vdc

Adaptive probe process temperature. - 100 ℃ ~ 800 ℃

Dead Angle measurements cannot be applied to horizontal measurements of 12 centimeters or even a few centimeters

The maximum measurement range can be hundreds of meters or even hundreds of meters

The interface measurement of viscous materials is the greatest advantage of the instrument

Stable and reliable output, resistant to flour, rough, water vapor, crystal, wax sinking

Do not maintain, do not move parts, not easy to wear parts, do not regularly clean, maintain and debug
