Product Details:
|
| Antenna Material: | PTFE, 304, 316 | Typical Application: | Liquid, Dust（Conductive, Insulating Powder, Etc）, Solid |
|---|---|---|---|
| Process Pressureterface: | -0.1～4.0MPa，-0.1～6.3MPa | Temperature Accuracy: | -40~+130℃,-50~+500℃ |
| Product Models: | NYSP-M24 | Signal Output: | 4... 20mA/HART/RS485/Modbus |
| Antenna Type: | Flexible Cable, Insulated Hard Rod At Both Ends | Measuring Range: | 0~20m |

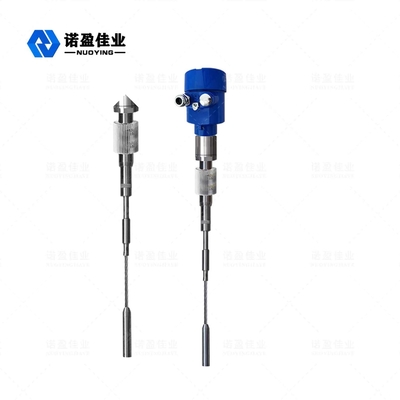

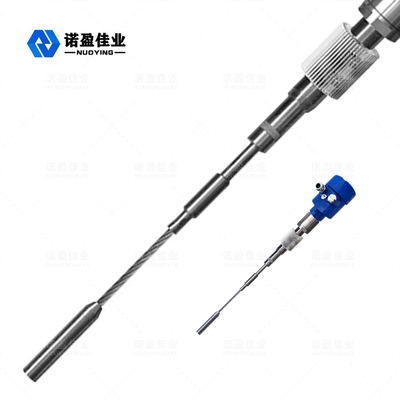

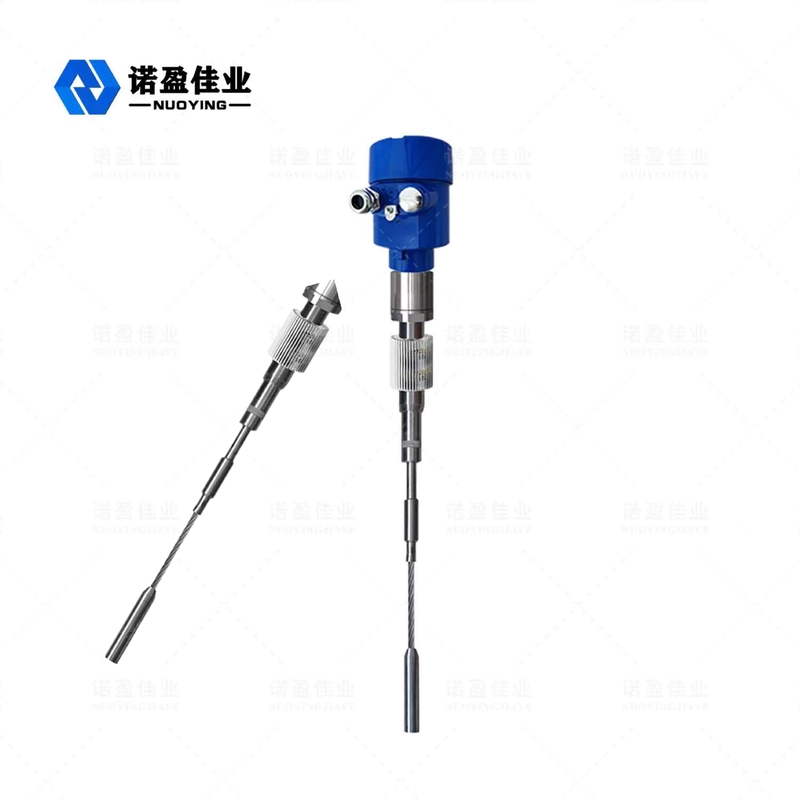

NYSP-M24 RF Continuous Measurement Admittance Level Meter
NYSP-M24 RF Admittance Level Meter Working Principle
A level is accepted for a continuous liquid level radio frequency based on the principle of radio frequency loss. The product has high stability, hypersensitivity and wide performance levels. Compared to the diversity of capacity levels, the design of the module will facilitate and adapt the instrument. Once set, it can usually be used and protected throughout life. Users can intuitively understand the use of the device and sometimes solve problems. It i s safe and reliable in a complex industrial environment.
RF transport curve and liquid level. Of course, this capacity is similar, a nd RF transport is now driving the course of first electronic change and helping to protect it. Physical laws, stability, stability of all points, so that certain changes towards the benchmarks can be removed and completely lost.
The RF transport meter is installed on the last storage bank and the RF signal is obtained by possible change. Then the driver's RF level cannot be removed from the material, so it confirms that the size of the instrument is correct.
|
Typical Application |
Liquid,dust(Conductive, insulating powder, etc), solid |
| Product Models |
NYSP-M24 |
| Antenna Type | Flexible cable, Insulated hard rod at both ends |
| Antenna Material | PTFE, 304, 316 |
| Measuring Range | 0~20m (hundreds of meters can be measured for deep wells, customized) |
| Measurement Accuracy | 0.05%~0.1%F. S |
| Power Supply | 24VDC |
| Signal Output | 4...20mA/HART/RS485/Modbus... |
| Process Temperature | -40~+130℃,-50~+500℃ |
| Process Pressure | -0.1～4.0MPa,-0.1～6.3MPa |
| Process Connection | Thread, flange (optional) |
| Electrical Interface | M20 × 1.5, ½ "NPT |
| Protection Grade | IP65, IP67, IP68 (optional) |
|
Explosion Proof Grade |
Exia Ⅱ CT6 Ga, Exd Ⅱ CT6 Gb (see certificate for details) |
Note: The products can be customized and designed according to the specific requirements of users!
NYSP-M24 RF Admittance Level Meter Design Features
The unique design of the anti-suspension material control board can improve the performance of anti-suspension materials.
Power range:13~35V DC
Adaptive probe process temperature: - 100℃~800℃ Darkness can not be used at a level of 12 cm to a few centimeters
Large measuring ranges of several hundred to several hundred metres
The interface of sticky objects, the general trend of the device
It is resistant to surface, rough millet, steam, crystallization, wax deposition
Non-protective, non-moving, non-wearing parts, irregular cleaning, protection and debugging
