|Product Models:||NYYCUK-A||Typical Application:||High And Low Alarm For Liquid, Dust And Other Media|
|Process Pressureterface:||-0.1～2.0MPa||Fork Length:||44mm,100mm(customizable)|
|Power Supply:||24VDC, 220VAC||Signal Output:||DPDT Relay Output|
|Process Temperature:||-40~+80℃||Process Connection:||Thread, Clamp,flange (optional)|

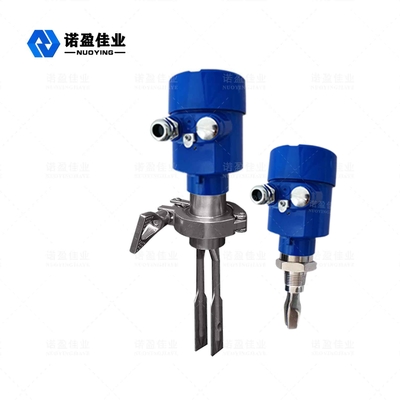

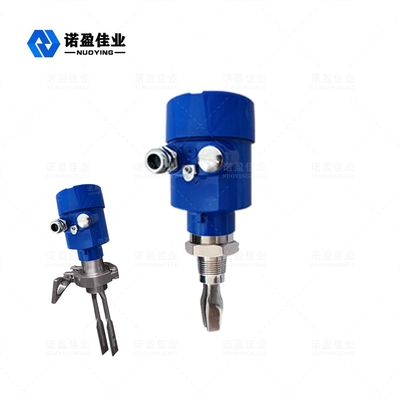

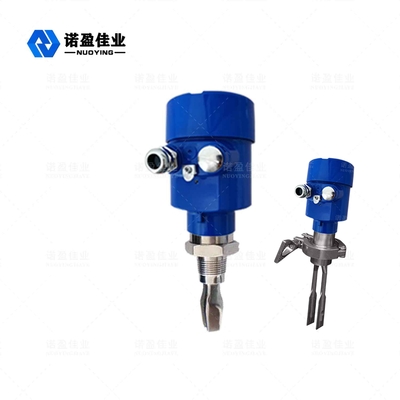

NYYCUK-A Not Affected By Dielectric Constant Tuning Fork Level Switch
NYYCUK-ATuning Fork Level Switch Working Principle
The NYYCUK tuning fork level switch is a universal liquid level limit switch. The tuning fork is excited by a piezoelectric crystal to generate vibration. When the tuning fork is immersed in liquid or solid, the vibration frequency changes. This frequency change is detected by an electronic circuit as a switching value. The tuning fork type liquid level limit switch is not affected by the dielectric constant, turbulence, agitation, bubbles, vibration and other factors, and has no moving parts. Therefore, it does not need maintenance and adjustment. It is an ideal choice for liquid level switches under complex working conditions. The latest smart chip can be used as the oil-water interface switch.
Tuning fork level switch is widely used in liquid medium limit monitoring such as tap water, mineral water, gasoline, diesel, paper pulp, glue, waste water, dye, acid and alkali solution, beer, beverage, etc., as well as solid powder and small solid particles with good flow.
|Typical Application||High and low alarm for liquid, dust and other media|
|Power Supply||24VDC, 220VAC|
|Signal Output||DPDT relay output|
|Process Connection||thread, clamp, flange (optional)|
|Protection Grade||IP 67|
|Explosion Proof Grade||ExiaⅡCT6 Ga, ExibⅡCT6 Gb (see certificate for details)|
