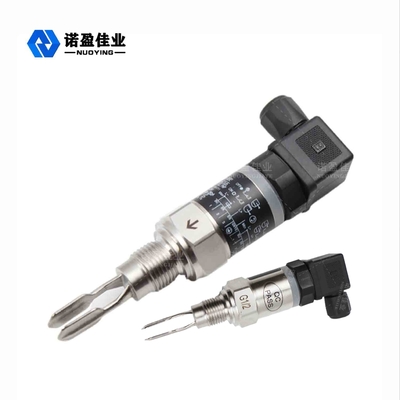

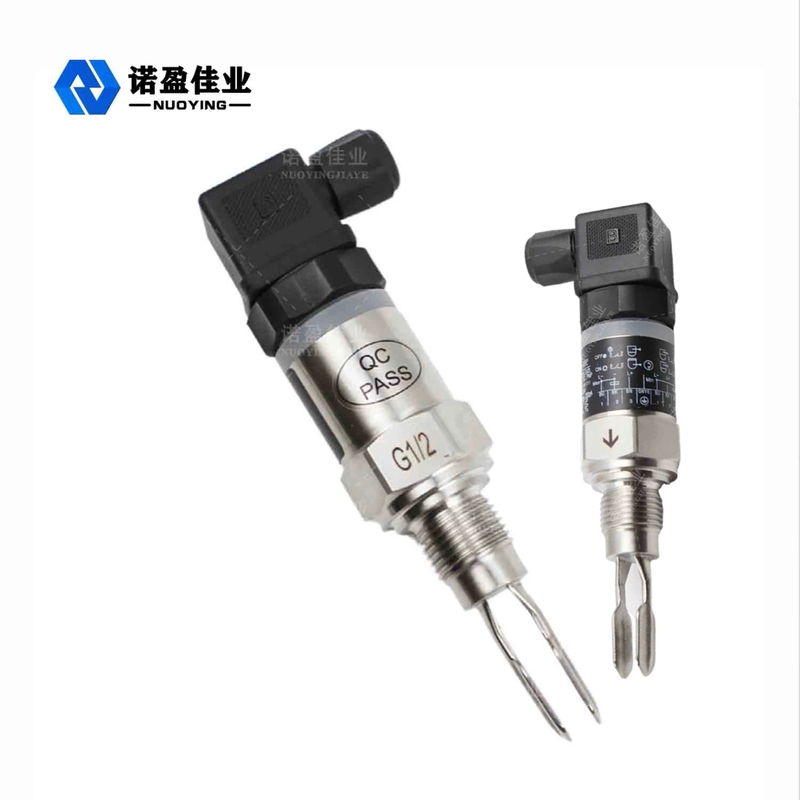

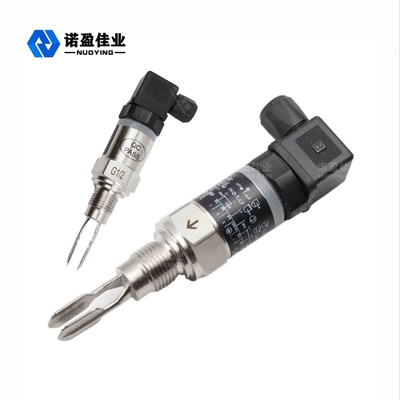

NYYCUK-C Safe And Reliable Without Adjustment Tuning Fork Level Switch

NYYCUK-C Safe And Reliable Without Adjustment Tuning Fork Level Switch
NYYCUK-C Safe And Reliable Without Adjustment Tuning Fork Level Switch NYYCUK-C Safe And Reliable Without Adjustment Tuning Fork Level Switch NYYCUK-C Safe And Reliable Without Adjustment Tuning Fork Level Switch

Large Image :  NYYCUK-C Safe And Reliable Without Adjustment Tuning Fork Level Switch

Product Details:
Place of Origin: Xi'an Shaanxi,China
Brand Name: NUOYINGJIAYE
Certification: CE
Model Number: NYYCUK-C
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: $125.037/pcs
Packaging Details: Carton,30cm*20cm*20cm
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 1000 pcs/per month

NYYCUK-C Safe And Reliable Without Adjustment Tuning Fork Level Switch

Description
Product Models: NYYCUK-C Process Temperature: -40~+220℃
Fork Length: 44mm,100mm(customizable) Power Supply: 24VDC, 220VAC
Process Connection: Thread, Clamp,flange (optional) Process Pressureterface: -0.1~2.0MPa
Signal Output: DPDT Relay Output Typical Application: High And Low Alarm For Liquid, Dust And Other Media

NYYCUK-C Safe And Reliable Without Adjustment Tuning Fork Level Switch​





NYYCUK-C Tuning Fork Level Switch Working Principle



NYYCUK tuning fork liquid level switch is a universal liquid level limit switch. The tuning fork vibrates under the stimulation of piezoelectric crystals. When the fork is immersed in liquid or solid, the vibration frequency will change. The frequency change is detected by an electronic circuit with switching value. The tuning fork liquid level limit switch is not affected by dielectric constant, turbulence, agitation, bubble, vibration and other factors, and has no moving parts, so it does not need maintenance and adjustment. It is an ideal choice for liquid level switch under complex working conditions. The latest smart chip can be used as oil-water interface switch.
Tuning fork liquid level switch is widely used for monitoring the limit value of tap water, mineral water, gasoline, diesel, paper pulp, glue, waste water, dye, acid and alkali solution, beer, beverage and other liquid media, as well as for monitoring the limit value of solid powder, solid particles and other good flowing media.



NYYCUK-C Tuning Fork Level Switch Technical Parameters

Typical Application High and low alarm for liquid, dust and other media
Product Model NYYCUK-C
Fork Length 44mm,100mm(customizable)
Power Supply 24VDC, 220VAC
Signal Output DPDT relay output
Process Temperature -40~+220℃
Process Pressure -0.1~2.0MPa
Process Connection thread, clamp, flange (optional)
Protection Grade IP 67
Explosion Proof Grade ExiaⅡCT6 Ga, ExibⅡCT6 Gb (see certificate for details)

Note: The products can be customized and designed according to the specific requirements of users!

NYYCUK-C Tuning Fork Level Switch Design Features

It is suitable for measuring medium density solid powder or free flowing particles. It is also suitable for almost all liquid media. This series of tuning fork level switches can measure various material levels, features high/low fail-safe limit switches, overflow or idle protection, pump controls, indicating whether to flow in the line, and much more.
It is not affected by foam, eddy current and gas. It is suitable for fixed point alarm or control of solid material level in various silos and liquid level in various containers. Various models are available for different occasions.
Long service life, stable performance, safe and reliable
Strong adaptability - the different electrical parameters and density of the measured material will not affect the measurement effect. Such as scaling, agitation, turbulence, bubbles, vibration, medium viscosity, high temperature and high pressure and other harsh conditions will not affect the detection.
No adjustment required: unaffected by the dielectric constant and density of the medium under test, no field adjustment is required, regardless of the type of liquid under test.
Maintenance-free: The tuning fork switch test process is conducted by electronic circuit, no moving parts. After installation and use, no field adjustment is required.
