| Brand Name: | NUOYING |
| Model Number: | NYRD-901 |
| MOQ: | 1 PIECES |
| Price: | 95$~150$/ PCS |
| Supply Ability: | 1000 pcs/ pre month |
Rs485 modbus radar type water level sensor transmitter

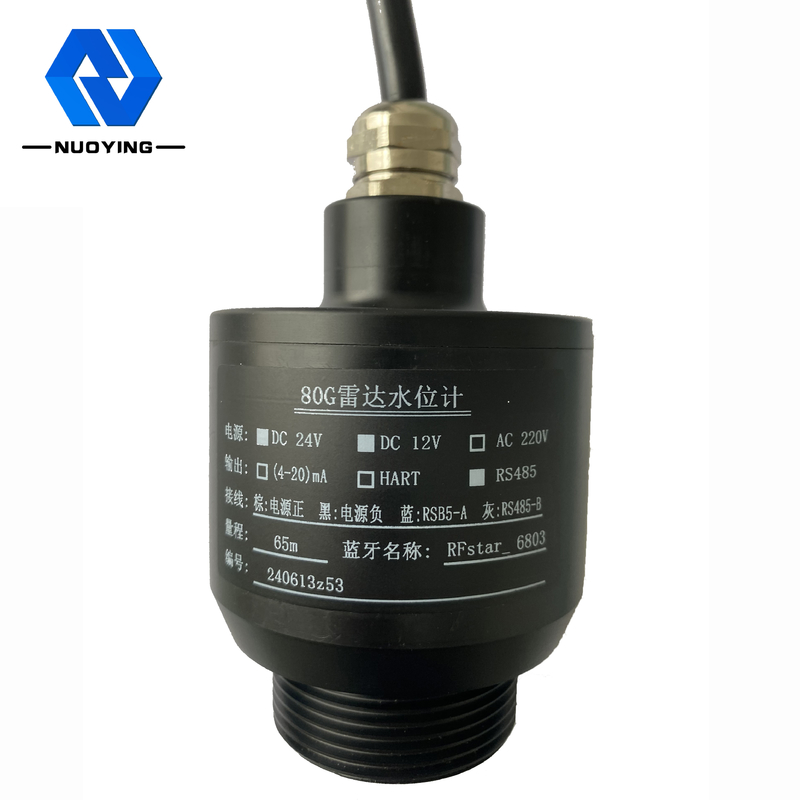

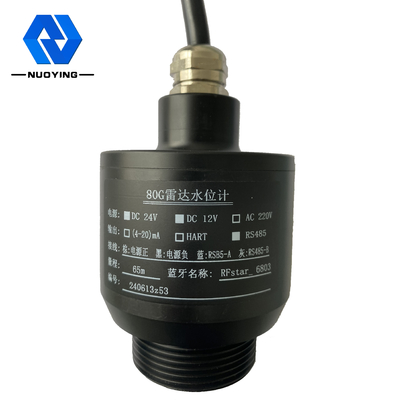

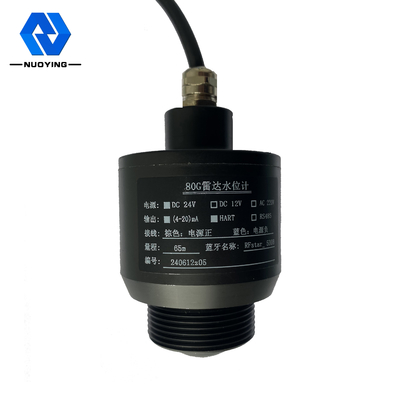

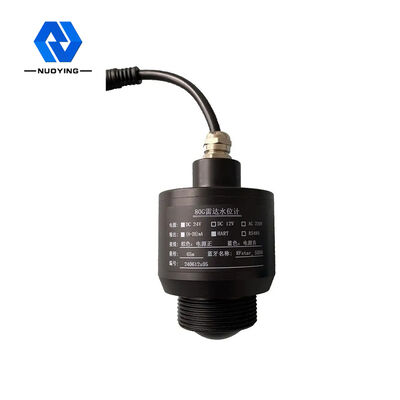

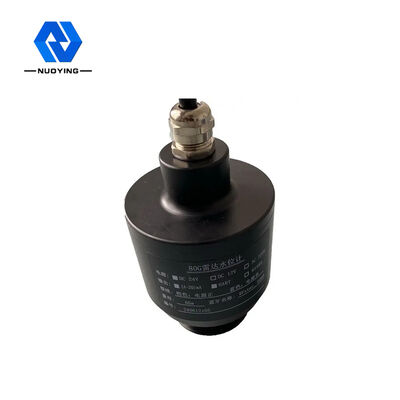

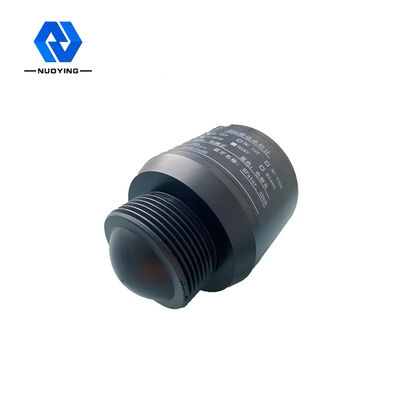

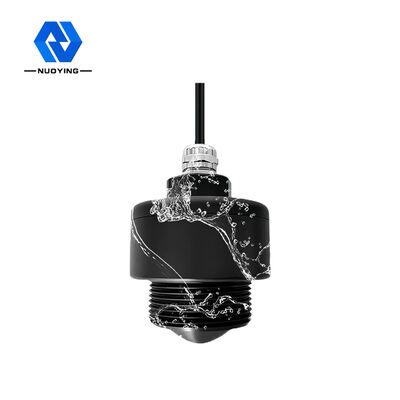

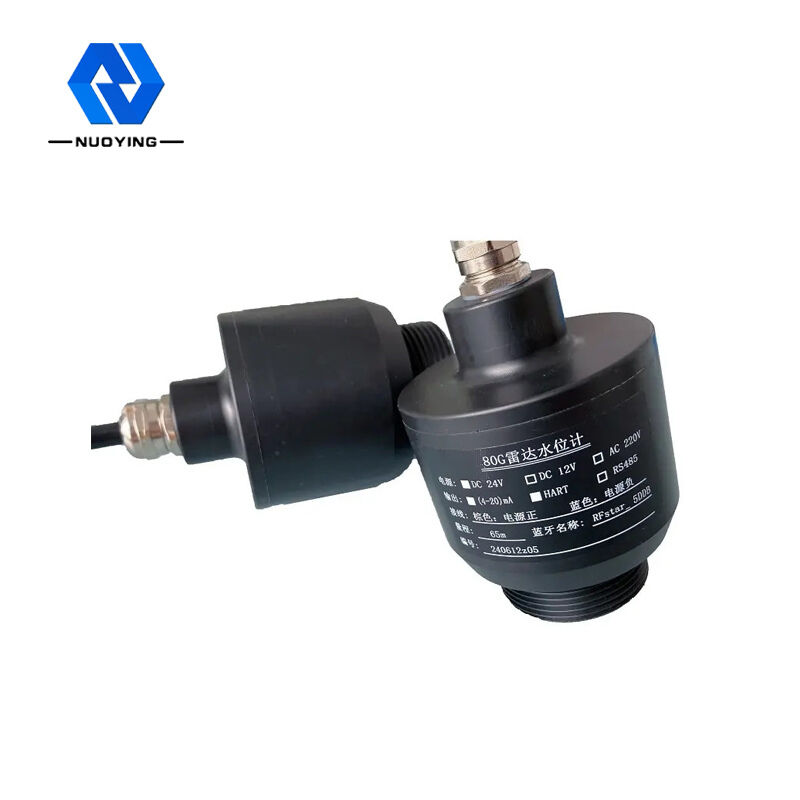

NYRD-901 Radar Water Level Meter
The NYRD901 Frequency Modulation wave FMCW radar product (also known as millimeter wave radar) has important applications in remote target detection, remote imaging, multispectral imaging, etc. In the environment of strong smoke and dust, because it uses a millimeter wave band with a higher frequency than the Ku band radar. It can detect targets smaller than the microwave radar and achieve more accurate positioning, with higher resolution and stronger confidentiality.
NYRD-901 Radar Water Level Meter Technical Parameters
| Typical application | water, liquids |
| Measuring range | 5m, 10m, 15m, 20m |
| Power Supply | 24VDC(22V~30V) |
| Signal output | 4...20mA/RS485/Modbus.. |
| Ambient temperature | -20℃~+70℃ |
| Process pressure | -0.1~1.0Mpa |
| Connection method | Thread |
| Protection Grade | IP67 |
Notes: The products can be customized according to customers requirement!
NYRD-901 Radar Water Level Meter Certificate
NYRD-901 Radar Water Level Meter Working Condition
