| Brand Name: | NUOYING |
| Model Number: | NYRD900 |
| MOQ: | 1 pc |
| Price: | $300~$580/pc |
| Payment Terms: | T/T |
| Supply Ability: | 1000 pcs per month |

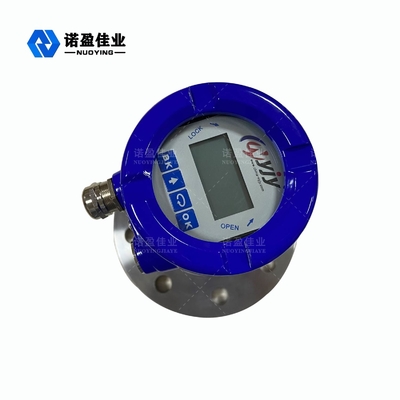

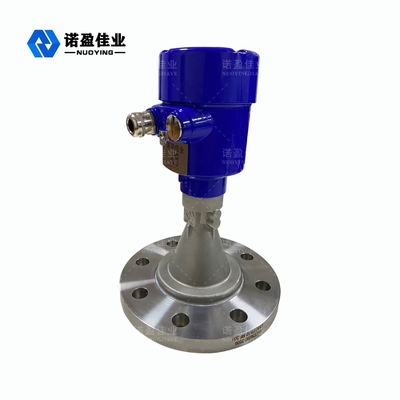

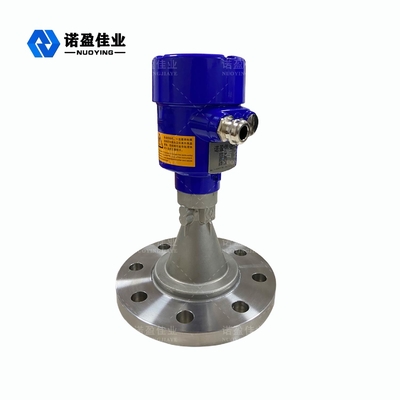

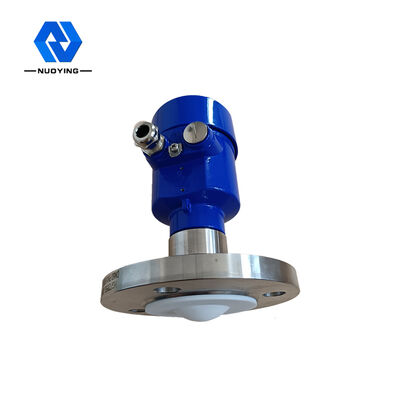

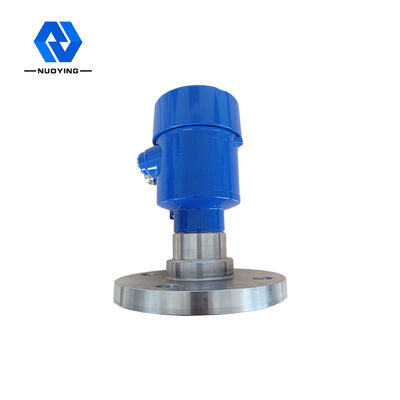

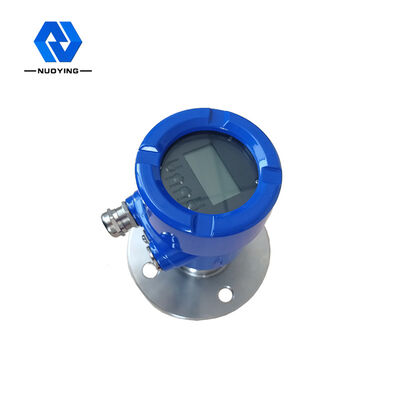

Industrial 80GHz High Precision Radar Level Transmitter 4-20MA Output for Liquid Radar Level Sensor
NYRD900 Radar Level Transmitter Product Description
The NYRD900 radar level transmitter is widely used in remote target detection, remote imaging, multispectral imaging, strong smoke and dust conditions, etc. As it uses the millimeter-wave band with a higher frequency than the Ku band , it can detect smaller targets and achieve more accurate positioning than microwave radar, with higher resolution and stronger security.

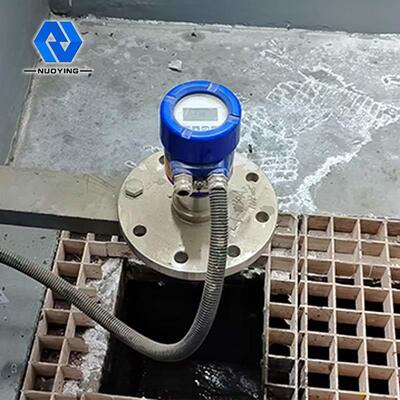

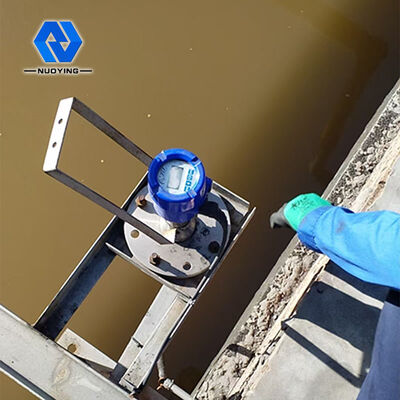

NYRD900 Radar Level Transmitter Typical Applications
1. Suitable for the measurement of narrow space or guided wave tube
2. Applicable to super large tank (120m) and small tank
3. High-precision, high-hygiene grade of measurement
4. Occasions with complex process conditions (mixing, heating Rod, ladder, floating roof, strong dust, strong steam, etc.)
NYRD900 Radar Level Transmitter Technical Parameters
|
Product model |
NYRD900 |
|
Transmit frequency |
76GHz~81GHz,FM sweep frequency width 5 GHz |
|

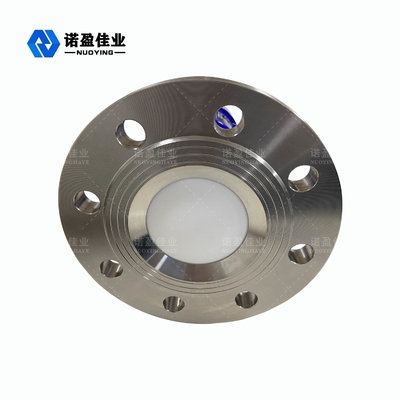

Antenna form |
Lens antenna, anti-corrosion lens antenna |
|
Antenna material |
PTFE, 304+PTFE(optional) |
|
Range |
120m |
|
Measurement accuracy |
±1mm |
|
Power supply |
DC 24V |
|
Signal output |
4-20mA/RS485 |
|
Process temperature |
- 20°C to +120°C |
|
Process pressure |
-0.1~2.0MPa |
|

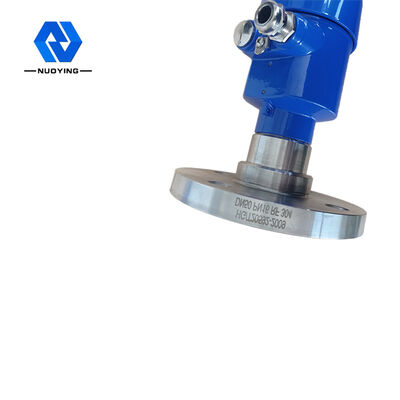

Procedure connection |
Thread/Flange |
|
Protection class |
IP67 |
|
Explosion proof grade |
Exia II CT6 Ga |
NYRD900 Radar Level Transmitter Working Conditions
